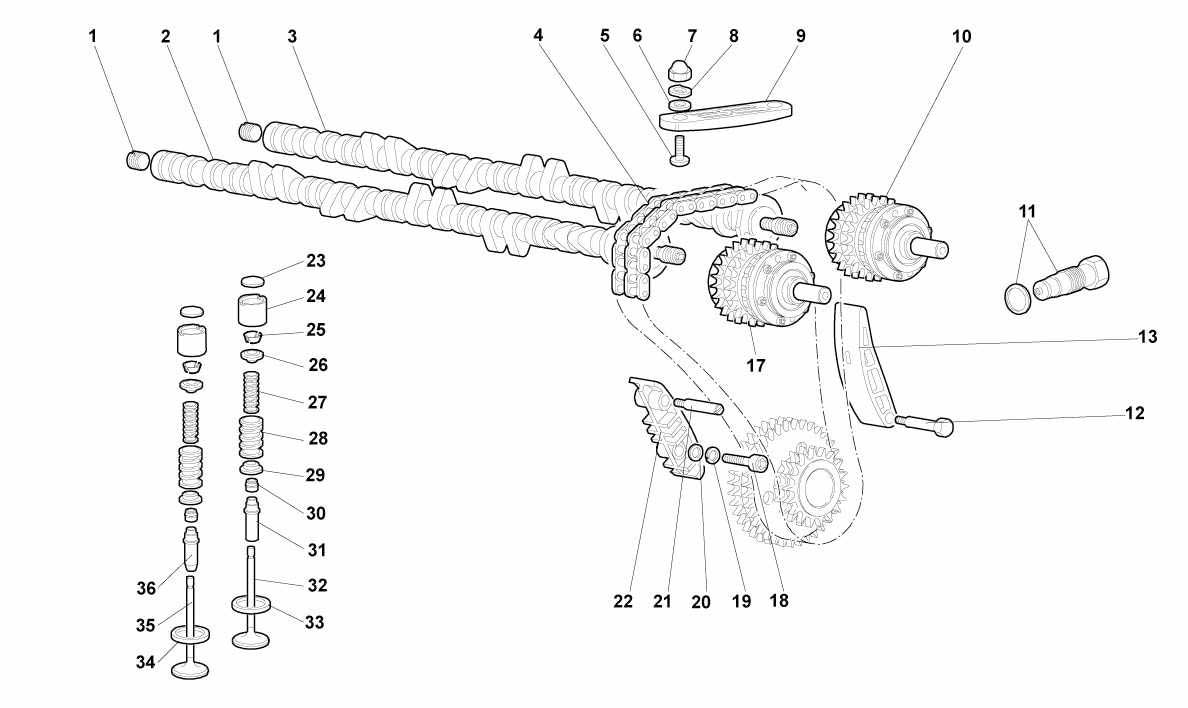

LEFT HEAD TIMING SYSTEM

Go to Split View

LEFT HEAD TIMING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8931409 *Qty: 2 PLUG $12.62
Location: 2 Prev | Next Part: 7M109021 *Qty: 1 INTAKE CAMSHAFT $6,250.79
Location: 3 Prev | Next Part: 7M109021A *Qty: 1 EXHAUST CAMSHAFT $1,912.34
Location: 4 Prev | Next Part: 7M109231 *Qty: 1 UPPER TIMING CHAIN $110.05
Location: 5 Prev | Next Part: 8700682 *Qty: 2 SCREW $0.90
Location: 6 Prev | Next Part: WHT003041 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 8200605 *Qty: 2 NUT $0.90
Location: 8 Prev | Next Part: WHT001197 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 7M109513 *Qty: 1 SHOE $32.98
Location: 10 Prev | Next Part: 7M109084 *Qty: 1 PHASE TRANSFORMER $4,167.21
Location: 11 Prev | Next Part: 7M109255 *Qty: 1 CHAIN TIGHTENER $92.51
Location: 12 Prev | Next Part: 7M109225A *Qty: 1 JOURNAL $35.45
Location: 13 Prev | Next Part: 7M109508 *Qty: 1 SHOE $25.82
Location: 17 Prev | Next Part: 7M109083 *Qty: 1 PHASE TRANSFORMER $4,167.21
Location: 18 Prev | Next Part: WHT003071 *Qty: 1 SCREW $4.66
Location: 19 Prev | Next Part: 8410820 *Qty: 1 WASHER $0.90
Location: 20 Prev | Next Part: 8400816 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: 7M109224 *Qty: 1 JOURNAL $37.76
Location: 22 Prev | Next Part: 7M109469 *Qty: 1 SHOE $34.03
Location: 23 Prev | Next Part: 7M109320C *Qty: 24 3.40 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 4.25 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320B *Qty: 24 3.35 MM ADJUSTMENT SHIM $36.93
Location: 23 Prev | Next Part: 7M109320T *Qty: 24 4.15 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 4.20 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 3.30 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320R *Qty: 24 4.05 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320 *Qty: 24 3.25 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320S *Qty: 24 4.10 MM ADJUSTMENT SHIM $36.93
Location: 23 Prev | Next Part: 7M109320Q *Qty: 24 4.00 MM ADJUSTMENT SHIM $7.63
Location: 23 Prev | Next Part: 7M109320G *Qty: 24 3,60 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320P *Qty: 24 3.95 MM ADJUSTMENT SHIM $36.93
Location: 23 Prev | Next Part: 7M109320N *Qty: 24 3.90 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 4.70 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320L *Qty: 24 3.80 MM ADJUSTMENT SHIM $35.45
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 4.65 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320M *Qty: 24 3.85 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 4.60 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320K *Qty: 24 3.75 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 4.55 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320J *Qty: 24 3.70 MM ADJUSTMENT SHIM $36.93
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 4.45 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320H *Qty: 24 3.65 MM ADJUSTMENT SHIM $36.93
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 4.50 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320F *Qty: 24 3.55 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 4.40 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320E *Qty: 24 3.50 MM ADJUSTMENT SHIM $36.93
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 4.30 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320D *Qty: 24 3.45 MM ADJUSTMENT SHIM $7.68
Location: 23 Prev | Next Part: 7M109320A *Qty: 24 4.35 MM ADJUSTMENT SHIM $7.68
Location: 24 Prev | Next Part: 7M109309 *Qty: 24 VALVE CONTROL TAPPET $25.08
Location: 25 Prev | Next Part: 7M109651 *Qty: 48 VALVE COTTER $0.90
Location: 26 Prev | Next Part: 7M109641 *Qty: 24 TAPPET UPPER PLATE $13.06
Location: 27 Prev | Next Part: 7M109633A *Qty: 24 INNER SPRING $4.23
Location: 28 Prev | Next Part: 7M109623A *Qty: 24 OUTER SPRING $6.42
Location: 29 Prev | Next Part: 7M109642 *Qty: 24 TAPPET LOWER PLATE $12.12
Location: 30 Prev | Next Part: 7M109675 *Qty: 24 SEAL RING $10.75
Location: 31 Prev | Next Part: 1238320 *Qty: 12 EXHAUST VALVE GUIDE $80.09
Location: 32 Prev | Next Part: 7M109611 *Qty: 12 EXHAUST VALVE $71.20
Location: 33 Prev | Next Part: 7M103441 *Qty: 12 EXHAUST VALVE SEAT $29.55
Location: 34 Prev | Next Part: 7M103431 *Qty: 12 INTAKE VALVE SEAT $32.68
Location: 35 Prev | Next Part: 7M109601 *Qty: 12 INTAKE VALVE $59.61
Location: 36 Prev | Next Part: 1238321 *Qty: 12 INTAKE VALVE GUIDE $65.18

* Quantity shown indicates the number of pieces used in the diagram.
