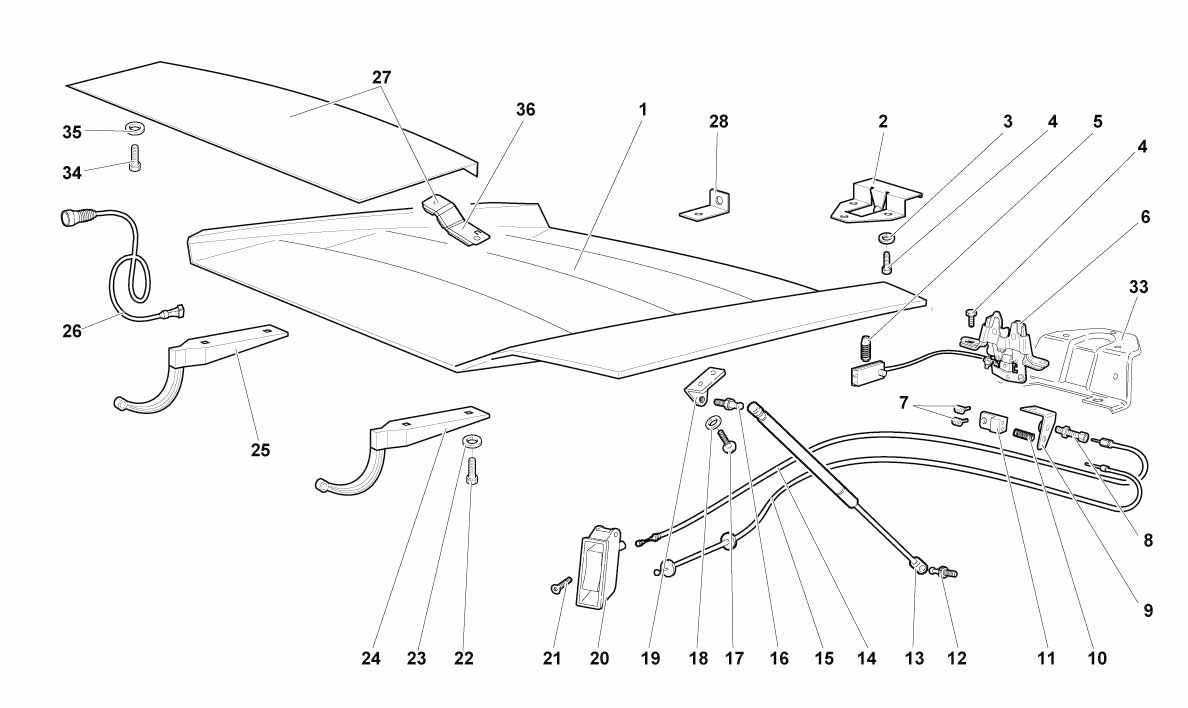

ENGINE HOOD

Go to Split View

ENGINE HOOD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 418827023 *Qty: 1 ENGINE HOOD ASSEMBLY $18,916.88
Location: 2 Prev | Next Part: 418827322 *Qty: 1 REFERENCE $160.65
Location: 3 Prev | Next Part: 8400631 *Qty: 3 WASHER $0.90
Location: 4 Prev | Next Part: N90319404 *Qty: 3 SCREW $1.27
Location: 5 Prev | Next Part: 8920607 *Qty: 2 SUPPORT $25.58
Location: 6 Prev | Next Part: 410827501A *Qty: 1 LOCK $642.92
Location: 7 Prev | Next Part: 410827654 *Qty: 2 CLAMP $44.81
Location: 8 Prev | Next Part: 410827421 *Qty: 1 ADJUSTER SCREW $4.46
Location: 9 Prev | Next Part: 418827909 *Qty: 1 BRACKET $35.43
Location: 10 Prev | Next Part: 410827665 *Qty: 1 SPRING $20.27
Location: 11 Prev | Next Part: 410814333 *Qty: 1 DOUBLE CLAMP $113.89
Location: 12 Prev | Next Part: 6X0827439A *Qty: 2 JOURNAL $2.63
Location: 13 Prev | Next Part: 400823359B *Qty: 2 ENGINE HOOD GAS CYLINDER ? SOLID PANEL ONLY $78.12
Location: 13 Prev | Next Part: 418827401 *Qty: 2 ENGINE HOOD GAS CYLINDER ? TRANSPARENT PANEL ONLY $72.01
Location: 14 Prev | Next Part: 418827531 *Qty: 1 ENGINE HOOD OPENING CABLE ASSEMBLY $64.49
Location: 15 Prev | Next Part: 418827532 *Qty: 1 ENGINE HOOD EMERGENCY OPENING CABLE ASSEMBLY $51.72
Location: 16 Prev | Next Part: 895827439B *Qty: 2 JOURNAL $3.59
Location: 17 Prev | Next Part: N90319404 *Qty: 4 SCREW $1.27
Location: 18 Prev | Next Part: 8400631 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 410827601 *Qty: 1 LH BRACKET $97.18
Location: 19 Prev | Next Part: 410827602 *Qty: 1 RH BRACKET $113.38
Location: 20 Prev | Next Part: 400827185 *Qty: 1 HANDLE Call
Location: 21 Prev | Next Part: WHT003091 *Qty: 1 SCREW $0.90
Location: 22 Prev | Next Part: N90319404 *Qty: 4 SCREW $1.27
Location: 23 Prev | Next Part: 8400631 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 418827152 *Qty: 1 ENGINE HOOD LEFT HINGE ASSEMBLY $527.77
Location: 25 Prev | Next Part: 418827151 *Qty: 1 ENGINE HOOD RIGHT HINGE ASSEMBLY $256.61
Location: 26 Prev | Next Part: 61015057 *Qty: 1 WIRING HARNESS $6.81
Location: 27 Prev | Next Part: 418827991 *Qty: 1 PAVIVION $9,848.22
Location: 28 Prev | Next Part: 410827454 *Qty: 1 BRACKET $15.11
Location: 33 Prev | Next Part: - *Qty: 0 LOCK FASTENER CASE (SEE TABLE 73.01.00) Call
Location: 35 Prev | Next Part: 8400631 *Qty: 4 WASHER $0.90
Location: 36 Prev | Next Part: 418827603 *Qty: 1 LH BRACKET $31.63
Location: 36 Prev | Next Part: 418827604 *Qty: 1 RH BRACKET $31.63

* Quantity shown indicates the number of pieces used in the diagram.
