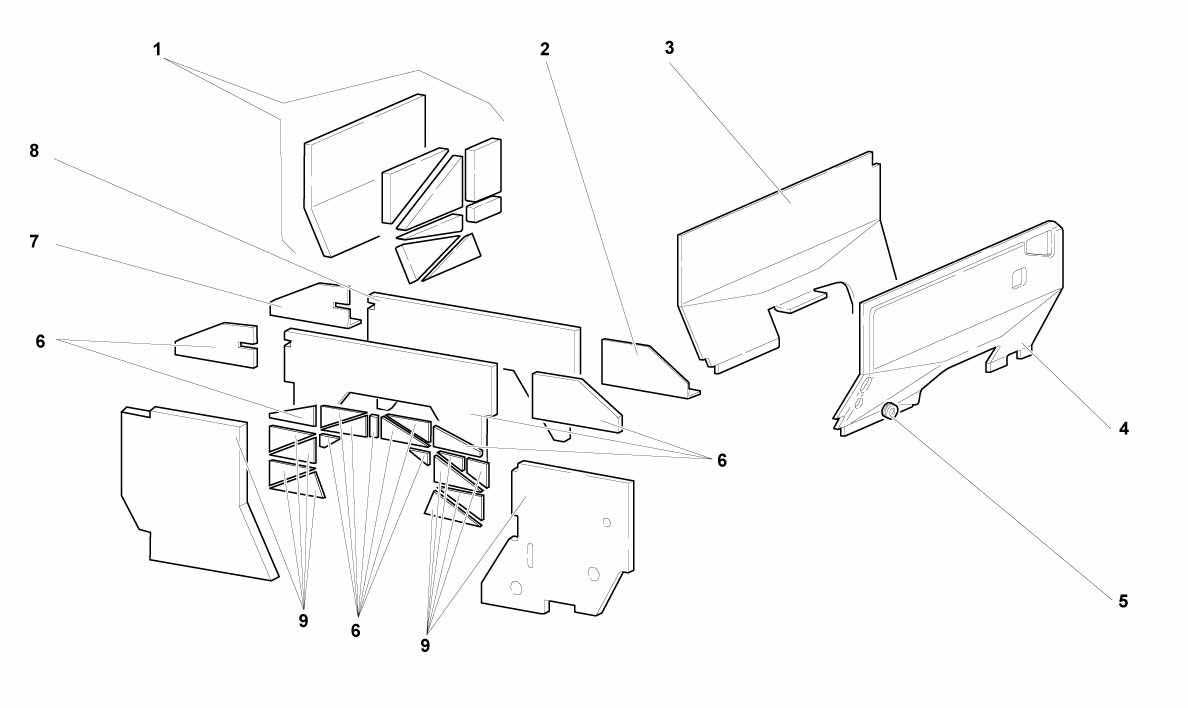

ENGINE COMPARTMENT INSULATING PANELS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 310147021 *Qty: 1 FUEL TANK ISOLATION SET $263.62
Location: 2 Prev | Next Part: 418103763 *Qty: 1 ENGINE COMPARTMENT LEFT FIREPROOF SHIELD $88.00
Location: 3 Prev | Next Part: 418863932 *Qty: 1 RIGHT HEAT SHIELD $2,315.36
Location: 4 Prev | Next Part: 418863931 *Qty: 1 LEFT HEAT SHIELD $2,315.36
Location: 5 Prev | Next Part: 8612804 *Qty: 1 RUBBER RING $6.34
Location: 6 Prev | Next Part: 310147022 *Qty: 1 ENGINE SIDE FIREPROOF SET $559.45
Location: 7 Prev | Next Part: 418103764 *Qty: 1 ENGINE COMPARTMENT RIGHT FIREPROOF SHIELD $90.72
Location: 8 Prev | Next Part: 418864926 *Qty: 1 ENGINE COMPARTMENT CENTER FIREPROOF SHIELD $191.93
Location: 9 Prev | Next Part: 310147049 *Qty: 1 FLAME SHIELD INSULATION ENGINE SIDE, BOTTOM $1,180.84

* Quantity shown indicates the number of pieces used in the diagram.
