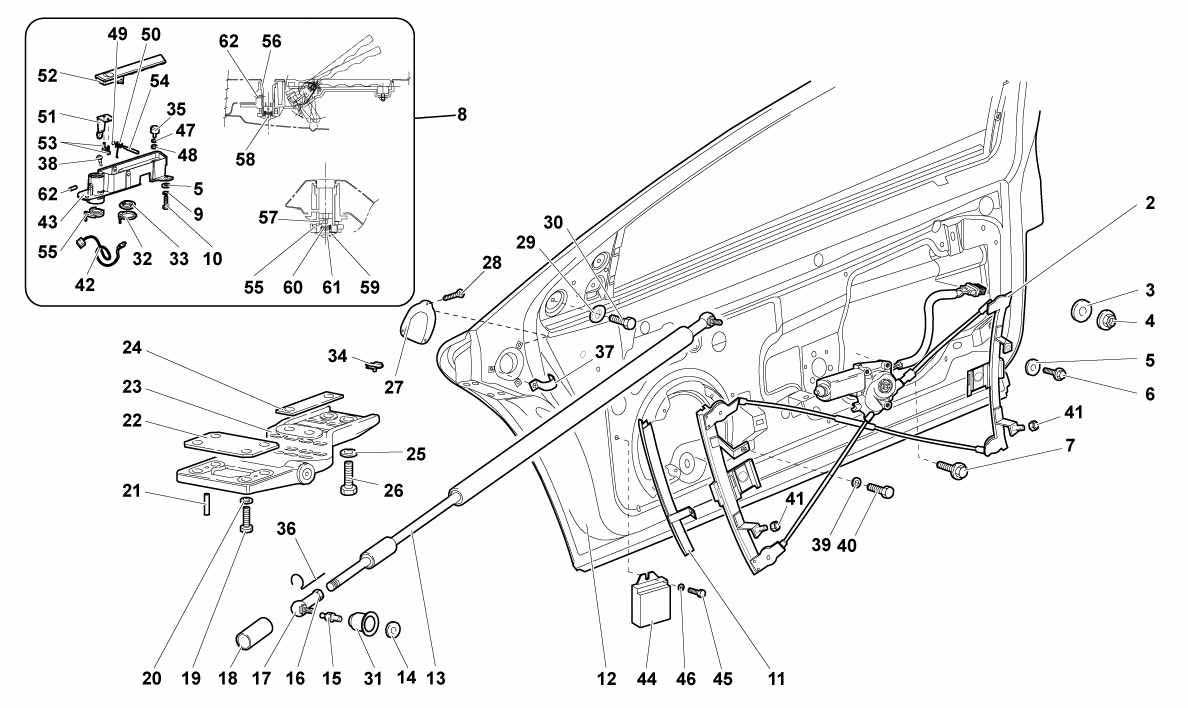

DOORS

Go to Split View

DOORS

Location Part # Quantity* Description Price Add To Cart
2 418837401 1 LH POWER WINDOW ASSEMBLY Unavailable
2 418837402 1 RIGHT DOOR POWER WINDOW ASSEMBLY Unavailable
3 8400607 3 WASHER Unavailable
4 8200614 3 NUT Unavailable
5 WHT003040 4 WASHER 5.3X1.5X15 Unavailable
6 N01020717 4 SCREW M5X12 Unavailable
6 8100504 4 SCREW M5X12 Unavailable
7 N91049601 6 SCREW Unavailable
8 0 HANDLE BODY ASSEMBLY (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
10 WHT000756 3 SCREW Unavailable
11 418837403 1 LH GUIDE Unavailable
11 418837404 1 RH GUIDE Unavailable
12 418831051 1 LEFT DOOR FRAME ASSEMBLY Unavailable
12 418831052 1 RIGHT DOOR FRAME ASSEMBLY Unavailable
13 410837987 2 DOOR GAS CYLINDER Unavailable
14 WHT000771 1 WASHER Unavailable
15 410837646A 1 JOURNAL Unavailable
16 8200801 1 NUT Unavailable
17 410837262 1 JACK HEAD Unavailable
18 410837801 1 SHEATH Unavailable
19 8101008 4 SCREW Unavailable
20 8411015 4 WASHER Unavailable
21 8900401 2 PIN Unavailable
22 410837983B 1 1.2 MM SHIM Unavailable
22 410837983C 1 1.5 MM SHIM Unavailable
22 410837983 1 0.8 MM SHIM Unavailable
22 410837983A 1 1.0 MM SHIM Unavailable
23 9421030 1 LH HINGE Unavailable
23 9421029 1 RH HINGE Unavailable
24 410837944A 1 1.00 ADJUSTMENT SHIM Unavailable
24 410837984 1 2.00 ADJUSTMENT SHIM Unavailable
25 N90179103 4 WASHER 18X8,4X2,5 Unavailable
26 8100821 4 SCREW Unavailable
27 410867251 1 ORNAMENT Unavailable
28 8700416 3 SCREW Unavailable
29 8400607 3 WASHER Unavailable
30 8700663 3 SCREW Unavailable
31 410837749 2 RUBBER CAP Unavailable
32 0 BOTTOM RING NUT (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
32 410837061 1 BOTTOM RING NUT, LH Unavailable
33 410837063 1 LH UPPER RING NUT Unavailable
33 0 UPPER RING NUT (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
34 410972672 2 SUPPORT Unavailable
35 410837549 2 RUBBER CAP Unavailable
36 410837171 2 RING Unavailable
37 410868630 2 BRACKET Unavailable
38 410837549 2 RUBBER CAP Unavailable
39 WHT003040 2 WASHER 5.3X1.5X15 Unavailable
40 N10718801 2 SCREW M6X16 Unavailable
41 8200614 4 NUT Unavailable
42 0 WIRING HARNESS (VALID FOR A DIFFERENT MODEL) Unavailable
43 410837163 1 LEFT HANDLE BODY Unavailable
43 410837164 1 RIGHT HANDLE BODY Unavailable
47 N10612001 2 WASHER Unavailable
48 WHT000760 2 NUT Unavailable
49 410863191 2 RETAINING RING Unavailable
50 410837724 1 RH SPRING Unavailable
50 410837723 1 LH SPRING Unavailable
51 410837226 2 LEVER Unavailable
52 410837207A 1 LH HANDLE Unavailable
52 410837208A 1 RH HANDLE Unavailable
53 8700472 4 SCREW Unavailable
54 410837041 2 JOURNAL Unavailable
55 0 BOTTOM RING NUT (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
56 0 BUSHING (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
57 0 (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
58 0 PIN (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
59 0 PLATE (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
60 0 SPRING (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
61 0 JOURNAL (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
62 8700401 2 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
