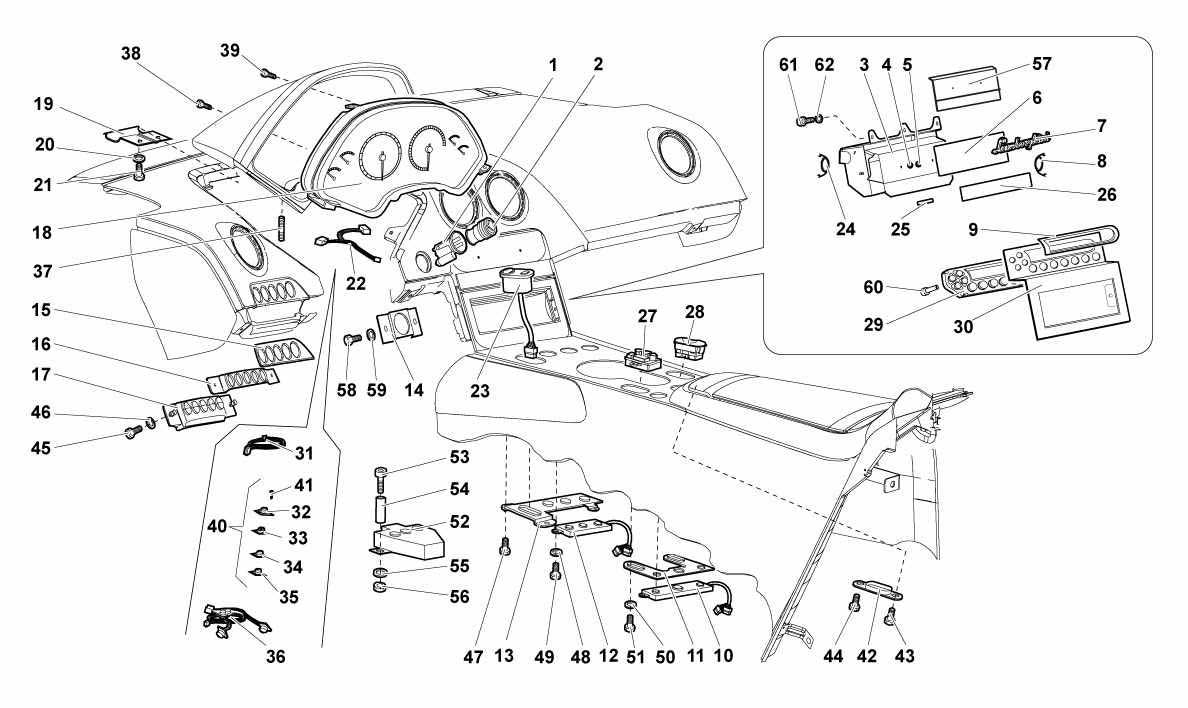

DASHBOARD INSTRUMENTS

Go to Split View

DASHBOARD INSTRUMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 410857529 *Qty: 1 RING $43.90
Location: 2 Prev | Next Part: 410919307 *Qty: 1 LIGHTER $43.17
Location: 3 Prev | Next Part: 69005683 *Qty: 1 A/C PANEL ASSEMBLY $192.53
Location: 4 Prev | Next Part: 8200301 *Qty: 2 NUT $0.90
Location: 5 Prev | Next Part: 8410311 *Qty: 2 WASHER $2.62
Location: 6 Prev | Next Part: 69013653 *Qty: 1 LID (Supply VIN) $755.55
Location: 8 Prev | Next Part: 410863432 *Qty: 1 RIGHT SPRING $51.17
Location: 9 Prev | Next Part: 410861719 *Qty: 1 FRAME $129.85
Location: 10 Prev | Next Part: 418927127A *Qty: 1 ANSOR KEYBOARD IN THE GEARBOX REAR SIDE $831.01
Location: 11 Prev | Next Part: 418858092A *Qty: 1 FRAME (E-GEAR) $431.76
Location: 11 Prev | Next Part: 418858092 *Qty: 1 FRAME (MANUAL GEARBOX) $545.80
Location: 12 Prev | Next Part: 60007893 *Qty: 1 ANSOR KEYBOARD IN THE GEARBOX FRONT SIDE $1,487.04
Location: 13 Prev | Next Part: 418858091 *Qty: 1 FRAME $442.77
Location: 14 Prev | Next Part: 410858023 *Qty: 1 BRACKET $45.20
Location: 15 Prev | Next Part: 413864147 *Qty: 1 FRAME $145.31
Location: 16 Prev | Next Part: 413864107 *Qty: 1 BRACKET $355.85
Location: 17 Prev | Next Part: 413941567A *Qty: 1 ANSOR KEYBOARD IN THE DASHBOARD (E-GEAR) $1,292.53
Location: 17 Prev | Next Part: 413941567 *Qty: 1 ANSOR KEYBOARD IN THE DASHBOARD (MANUAL GEARBOX) $1,148.92
Location: 18 Prev | Next Part: 60014773 *Qty: 1 INSTRUMENT PANEL ASSEMBLY (E-GEAR) $3,960.54
Location: 18 Prev | Next Part: 60013344 *Qty: 1 INSTRUMENT PANEL ASSEMBLY (MANUAL GEARBOX) $3,960.54
Location: 19 Prev | Next Part: 410858573 *Qty: 1 BRACKET $66.03
Location: 20 Prev | Next Part: 8400401 *Qty: 2 WASHER $0.90
Location: 21 Prev | Next Part: 8100408 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: *Qty: 0 WIRING HARNESS SIRIO/VDO (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 23 Prev | Next Part: 410959565A *Qty: 1 SIDE VIEW MIRRORS SWITCH $614.59
Location: 24 Prev | Next Part: 410863431 *Qty: 1 LEFT SPRING $51.17
Location: 25 Prev | Next Part: 443803389C *Qty: 1 FELT $2.37
Location: 26 Prev | Next Part: 410862547 *Qty: 1 MOLDING $400.89
Location: 27 Prev | Next Part: 51009880 *Qty: 1 KONI KEYBOARD $472.36
Location: 28 Prev | Next Part: 410919815 *Qty: 2 RH/LH POWER WINDOW SWITCH $101.55
Location: 29 Prev | Next Part: 410820043 *Qty: 1 DIAVIA A/C DASHBOARD ASSEMBLY $1,725.23
Location: 30 Prev | Next Part: 410035422 *Qty: 1 FRAME $1,477.77
Location: 31 Prev | Next Part: 61013367 *Qty: 1 WIRING HARNESS $347.92
Location: 32 Prev | Next Part: *Qty: 1 BUTTON (CANNOT BE SOLD SEPARATELY - SEE REF. 40) Call
Location: 33 Prev | Next Part: *Qty: 1 BUTTON (CANNOT BE SOLD SEPARATELY - SEE REF. 40) Call
Location: 34 Prev | Next Part: *Qty: 1 BUTTON (CANNOT BE SOLD SEPARATELY - SEE REF. 40) Call
Location: 35 Prev | Next Part: *Qty: 1 BUTTON (CANNOT BE SOLD SEPARATELY - SEE REF. 40) Call
Location: 36 Prev | Next Part: *Qty: 1 BUTTON SET (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 37 Prev | Next Part: 8300510 *Qty: 2 STUD BOLT $8.15
Location: 38 Prev | Next Part: 8700430 *Qty: 2 SCREW $0.90
Location: 39 Prev | Next Part: 8700816 *Qty: 2 SCREW $0.90
Location: 40 Prev | Next Part: 410919225 *Qty: 1 BUTTON SET (For VDO parts) $315.51
Location: 41 Prev | Next Part: 8700202 *Qty: 8 SCREW $0.90
Location: 42 Prev | Next Part: 410857851 *Qty: 2 FRAME $196.38
Location: 43 Prev | Next Part: 8700479 *Qty: 2 SCREW $0.90
Location: 44 Prev | Next Part: WHT003302 *Qty: 2 SCREW $1.24
Location: 45 Prev | Next Part: N01020717 *Qty: 2 SCREW M5X12 $0.90
Location: 45 Prev | Next Part: 8100504 *Qty: 2 SCREW M5X12 $0.90
Location: 47 Prev | Next Part: 8700479 *Qty: 4 SCREW $0.90
Location: 48 Prev | Next Part: 8400304 *Qty: 4 WASHER $0.90
Location: 49 Prev | Next Part: 8700337 *Qty: 4 SCREW $0.90
Location: 50 Prev | Next Part: 8400401 *Qty: 4 WASHER $0.90
Location: 51 Prev | Next Part: 8700408 *Qty: 4 SCREW $0.90
Location: 52 Prev | Next Part: 418919823 *Qty: 1 E-GEAR CONTROL PANEL $812.31
Location: 53 Prev | Next Part: N91078401 *Qty: 2 SCREW $11.09
Location: 54 Prev | Next Part: 410857441 *Qty: 2 SPACER $26.27
Location: 55 Prev | Next Part: 8400607 *Qty: 2 WASHER $0.90
Location: 56 Prev | Next Part: 8400607 *Qty: 2 NUT $0.90
Location: 57 Prev | Next Part: *Qty: 0 LID (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 58 Prev | Next Part: N10580702 *Qty: 2 SCREW M5X8 $4.36
Location: 59 Prev | Next Part: N10612001 *Qty: 2 WASHER $0.90
Location: 60 Prev | Next Part: N10613301 *Qty: 2 SCREW M3X8 $0.90
Location: 61 Prev | Next Part: N10580702 *Qty: 3 SCREW $4.36

* Quantity shown indicates the number of pieces used in the diagram.
