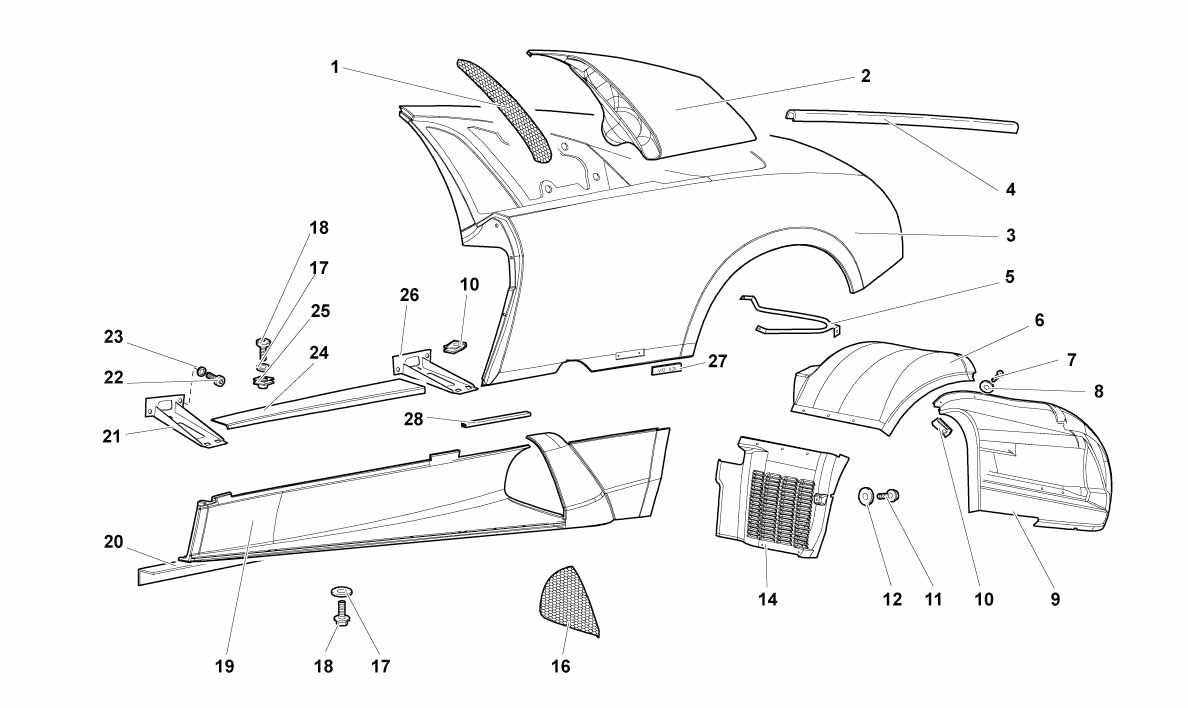

BODY ELEMENTS - LEFT SIDE

Go to Split View

BODY ELEMENTS - LEFT SIDE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66005883 *Qty: 1 NET $110.75
Location: 2 Prev | Next Part: 418809953 *Qty: 1 FENDER LEFT COVER $7,230.44
Location: 3 Prev | Next Part: 418821017B *Qty: 1 LEFT REAR FENDER ASSEMBLY $17,099.36
Location: 4 Prev | Next Part: 418821243 *Qty: 1 CHANNEL $603.24
Location: 5 Prev | Next Part: 410117073 *Qty: 1 LEFT OIL RADIATOR FRAMEWORK $308.18
Location: 6 Prev | Next Part: 410810981 *Qty: 1 LEFT REAR WHEELARCH, CENTRAL PART $1,301.24
Location: 7 Prev | Next Part: 8700454 *Qty: 4 SCREW $2.85
Location: 9 Prev | Next Part: 410810985 *Qty: 1 LEFT REAR WHEELARCH, REAR PART $406.21
Location: 10 Prev | Next Part: N90834301 *Qty: 4 CLIP $0.90
Location: 11 Prev | Next Part: N90319404 *Qty: 44 SCREW $1.22
Location: 12 Prev | Next Part: 8400614 *Qty: 32 WASHER $0.90
Location: 14 Prev | Next Part: 68006021 *Qty: 1 LEFT REAR WHEELARCH, FRONT PART $430.84
Location: 16 Prev | Next Part: 410864443 *Qty: 1 NET $165.01
Location: 17 Prev | Next Part: 8400607 *Qty: 18 WASHER $0.90
Location: 18 Prev | Next Part: N10718801 *Qty: 18 SCREW M6X16 $0.90
Location: 19 Prev | Next Part: 410809035 *Qty: 1 LEFT SIDE MEMBER ASSEMBLY $10,693.96
Location: 20 Prev | Next Part: 410857469 *Qty: 1 AERODYNAMIC LH STRAP IRON $158.27
Location: 21 Prev | Next Part: 410813550 *Qty: 1 BRACKET $108.04
Location: 22 Prev | Next Part: 8700627 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 8400606 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 410853491 *Qty: 1 SCUFF PLATE $1,248.25
Location: 25 Prev | Next Part: 400827947 *Qty: 6 CLIP $17.17
Location: 26 Prev | Next Part: 410813549 *Qty: 1 BRACKET $116.66
Location: 27 Prev | Next Part: 94013594 *Qty: 1 V12 6.2L PLATE $346.96
Location: 28 Prev | Next Part: 400853893 *Qty: 1 GASKET $5.89

* Quantity shown indicates the number of pieces used in the diagram.
