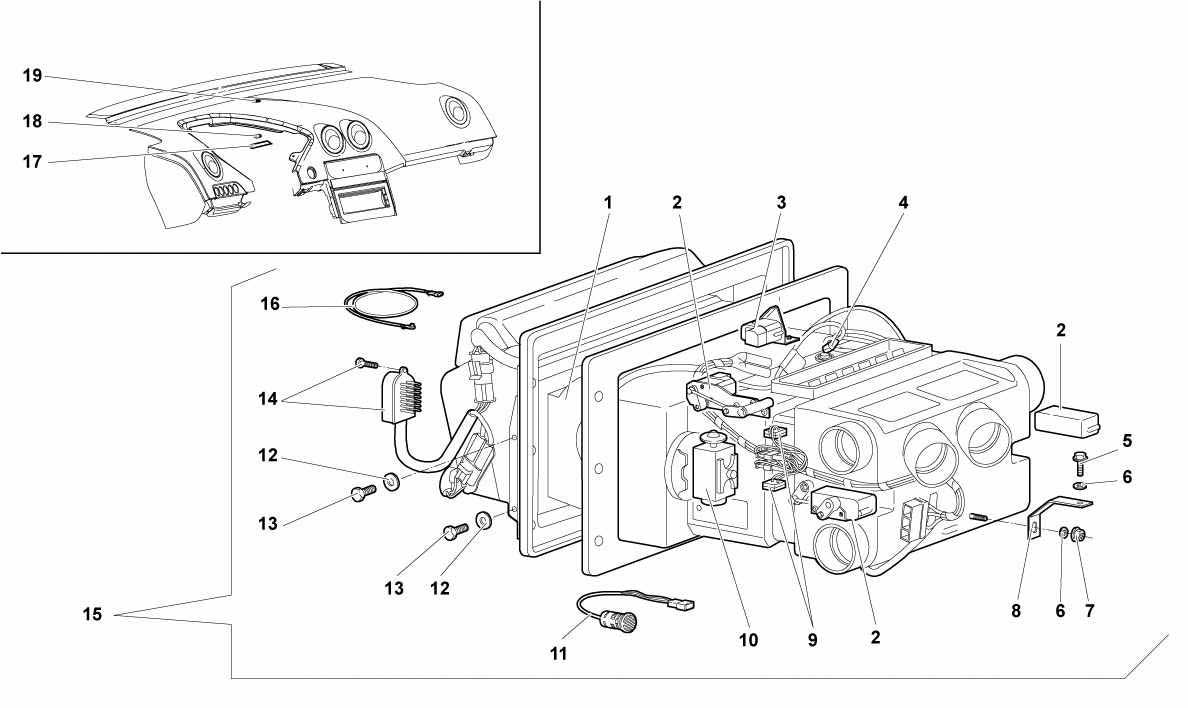

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 45006734 *Qty: 1 ELECTRIC FAN $600.83
Location: 2 Prev | Next Part: 45006737 *Qty: 3 ACTUATOR $138.57
Location: 3 Prev | Next Part: 45006736 *Qty: 1 ACTUATOR $170.68
Location: 4 Prev | Next Part: 45006731 *Qty: 1 SENSOR $174.11
Location: 5 Prev | Next Part: N10718801 *Qty: 1 SCREW M6X16 $0.90
Location: 6 Prev | Next Part: 8400607 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 8200614 *Qty: 1 NUT $0.90
Location: 8 Prev | Next Part: 410804949 *Qty: 1 BRACKET $54.76
Location: 9 Prev | Next Part: 45006730 *Qty: 2 CA.0005430.C TEMPERATURE SENSOR $50.12
Location: 10 Prev | Next Part: 45006735 *Qty: 1 VALVE $162.36
Location: 11 Prev | Next Part: 410820539 *Qty: 1 INTERNAL TEMPERATURE SENSOR $108.50
Location: 12 Prev | Next Part: 8400606 *Qty: 4 WASHER $0.90
Location: 13 Prev | Next Part: 8100501 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 45006742 *Qty: 1 REGULATOR $314.54
Location: 15 Prev | Next Part: 45015155 *Qty: 1 HVAC UNIT $5,588.62
Location: 16 Prev | Next Part: 410820535 *Qty: 2 EXTERNAL TEMPERATURE SENSOR $88.48
Location: 17 Prev | Next Part: 410820200 *Qty: 1 0681762 SOLAR SENSOR BRACKET $6.88
Location: 18 Prev | Next Part: 410820530 *Qty: 1 RING $4.05
Location: 19 Prev | Next Part: 410907539 *Qty: 1 SENSOR $183.02

* Quantity shown indicates the number of pieces used in the diagram.
