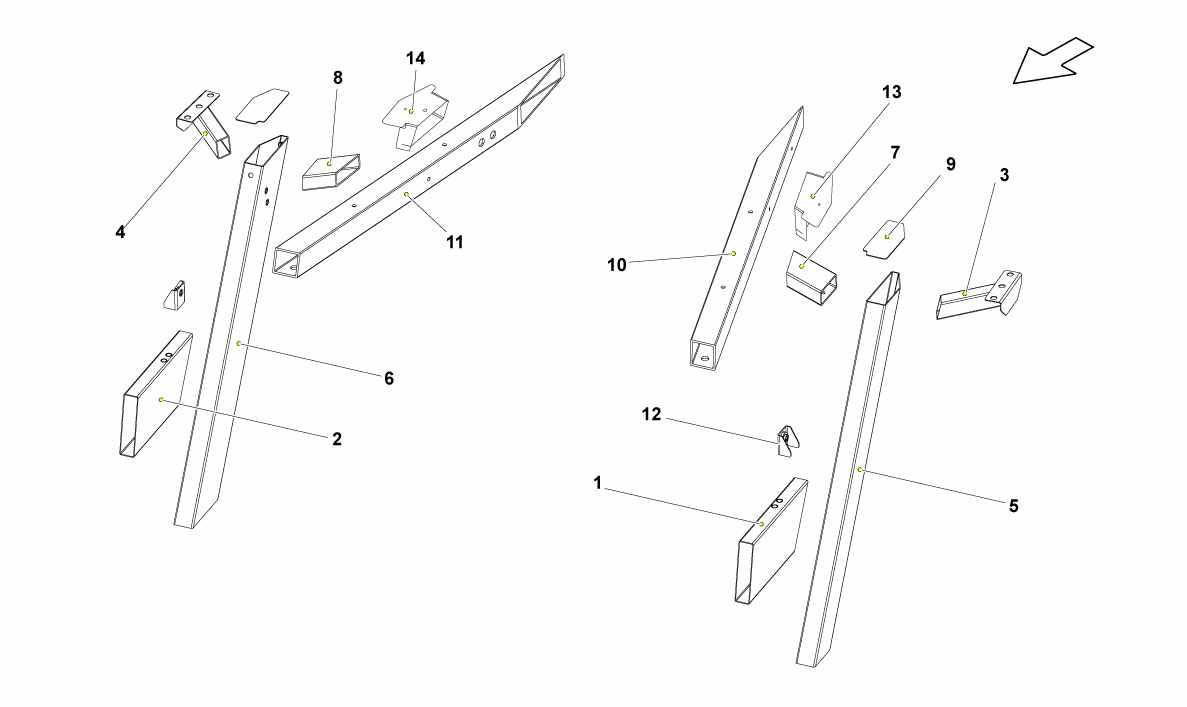

REAR FRAME ELEMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400803503 *Qty: 1 SIDE MEMBER $256.22
Location: 2 Prev | Next Part: 400803504 *Qty: 1 SIDE MEMBER $256.22
Location: 3 Prev | Next Part: 400810229A *Qty: 1 CARRIER PART $233.07
Location: 4 Prev | Next Part: 400810230A *Qty: 1 CARRIER PART $233.07
Location: 5 Prev | Next Part: 400809239 *Qty: 1 C A-PILLAR $381.87
Location: 6 Prev | Next Part: 400809240 *Qty: 1 C A-PILLAR $381.87
Location: 7 Prev | Next Part: 400809261 *Qty: 1 REINF.PILLAR C $86.78
Location: 8 Prev | Next Part: 400809262 *Qty: 1 REINF.PILLAR C $86.78
Location: 9 Prev | Next Part: 400809645 *Qty: 2 LH SHEET $64.72
Location: 10 Prev | Next Part: 400810243 *Qty: 1 BRACKET $297.97
Location: 11 Prev | Next Part: 400810244 *Qty: 1 BRACKET $297.97
Location: 12 Prev | Next Part: 400813891 *Qty: 2 FIXING ANGLE $74.28
Location: 13 Prev | Next Part: *Qty: 1 CONNECTING PIECE (VALID FOR A DIFFERENT MODEL) Call
Location: 14 Prev | Next Part: *Qty: 1 CONNECTING PIECE (VALID FOR A DIFFERENT MODEL) Call

* Quantity shown indicates the number of pieces used in the diagram.
