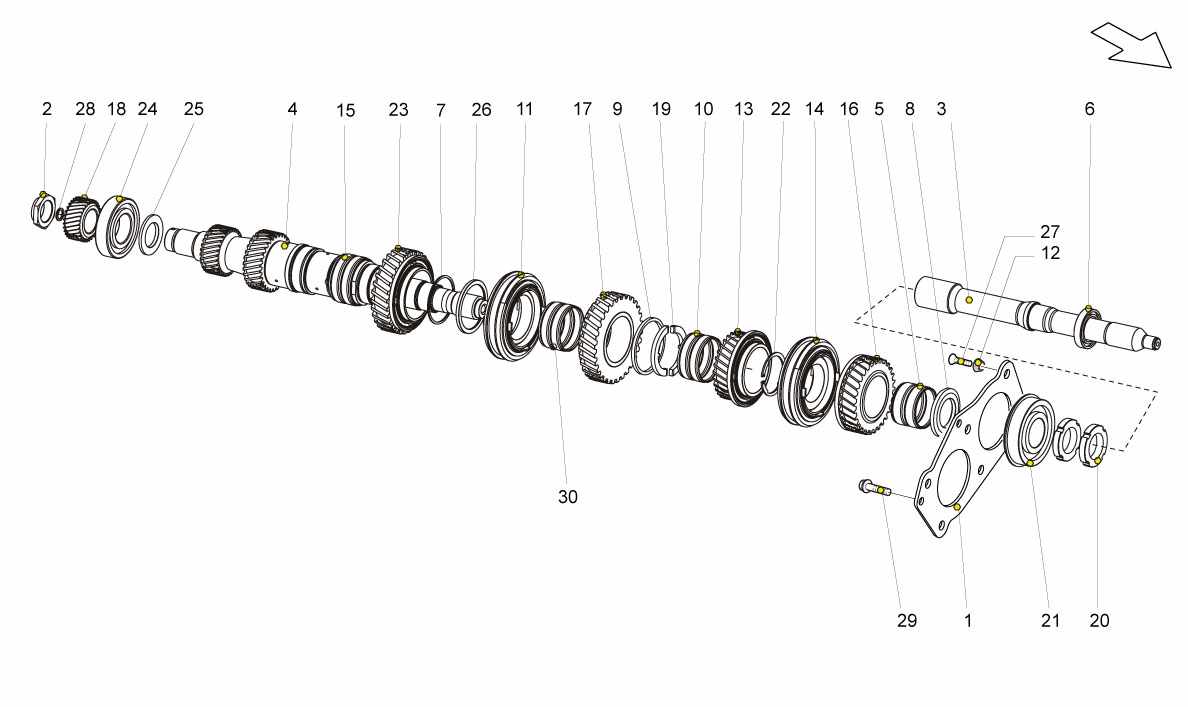

MAIN SHAFT

Go to Split View

MAIN SHAFT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86301193B *Qty: 1 PLATE Unavailable
Location: 2 Prev | Next Part: 86307303 *Qty: 2 RING NUT M27X1.5 Unavailable
Location: 3 Prev | Next Part: 86311103A *Qty: 1 SHAFT Unavailable
Location: 4 Prev | Next Part: 86311105A *Qty: 1 MAIN SHAFT Unavailable
Location: 5 Prev | Next Part: 86311118 *Qty: 1 ROLLER CAGE Unavailable
Location: 6 Prev | Next Part: 86311133 *Qty: 1 BEARING Unavailable
Location: 7 Prev | Next Part: 86311152 *Qty: 1 RING Unavailable
Location: 8 Prev | Next Part: 86311157 *Qty: 1 SPACER Unavailable
Location: 9 Prev | Next Part: 86311183 *Qty: 1 RING Unavailable
Location: 10 Prev | Next Part: 86311228 *Qty: 1 ROLLER CAGE Unavailable
Location: 11 Prev | Next Part: 86311241 *Qty: 1 SYNCHRONIZING GEAR Unavailable
Location: 12 Prev | Next Part: 86311276 *Qty: 6 ROSETTE Unavailable
Location: 13 Prev | Next Part: 86311285A *Qty: 1 THIRD GEAR Unavailable
Location: 14 Prev | Next Part: 86311301A *Qty: 1 SYNCHRONIZING GEAR Unavailable
Location: 15 Prev | Next Part: 86311325 *Qty: 1 ROLLER CAGE Unavailable
Location: 16 Prev | Next Part: 86311351A *Qty: 1 FOURTH GEAR Unavailable
Location: 17 Prev | Next Part: 86311389A *Qty: 1 SIXTH GEAR Unavailable
Location: 18 Prev | Next Part: 86311507A *Qty: 1 REVERSE IDLE GEAR Unavailable
Location: 19 Prev | Next Part: 86311876 *Qty: 1 RING Unavailable
Location: 20 Prev | Next Part: 86307291A *Qty: 2 RING NUT Unavailable
Location: 21 Prev | Next Part: 86311235A *Qty: 2 BEARING Unavailable
Location: 22 Prev | Next Part: 86311287A *Qty: 1 RING Unavailable
Location: 23 Prev | Next Part: 86311361C *Qty: 1 FIFTH GEAR Unavailable
Location: 24 Prev | Next Part: 86311372C *Qty: 2 BEARING Unavailable
Location: 25 Prev | Next Part: 86311357 *Qty: 1 BUSHING Unavailable
Location: 26 Prev | Next Part: 86311876B *Qty: 1 SPACER Unavailable
Location: 27 Prev | Next Part: N90744801 *Qty: 6 SCREW Unavailable
Location: 28 Prev | Next Part: WHT002219 *Qty: 1 O-RING Unavailable
Location: 29 Prev | Next Part: N90063706 *Qty: 1 SCREW Unavailable
Location: 30 Prev | Next Part: 86311150 *Qty: 1 ROLLER CAGE Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
