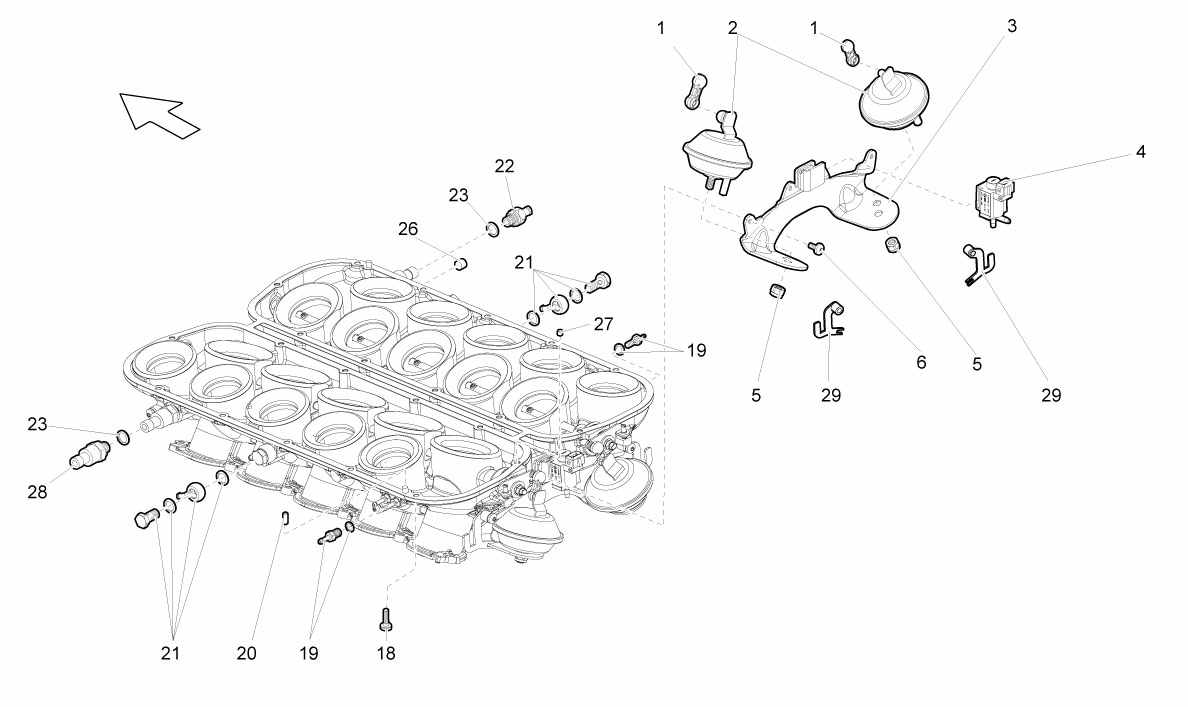

INTAKE MANIFOLD

Go to Split View

INTAKE MANIFOLD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L133157 *Qty: 2 LEVER $20.31
Location: 2 Prev | Next Part: 7L907327 *Qty: 2 ACTUATOR $453.71
Location: 3 Prev | Next Part: 7L907332B *Qty: 1 SUPPORT $121.31
Location: 4 Prev | Next Part: 77906283 *Qty: 1 SOLENOID VALVE (USA ANTI POLLUTION SYSTEM) $38.94
Location: 5 Prev | Next Part: N0211945 *Qty: 2 NUT $22.16
Location: 6 Prev | Next Part: N10335202 *Qty: 4 SCREW M6X12 $0.90
Location: 18 Prev | Next Part: N10196105 *Qty: 10 SCREW M6X18 $0.90
Location: 19 Prev | Next Part: 7L133794 *Qty: 2 CONNECTOR $27.53
Location: 20 Prev | Next Part: N0131991 *Qty: 1 PIN $0.90
Location: 21 Prev | Next Part: 7L133794A *Qty: 2 CONNECTOR $93.99
Location: 22 Prev | Next Part: 7L133119A *Qty: 1 CHECK VALVE $34.46
Location: 23 Prev | Next Part: N0138131 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: *Qty: 0 BUSHING (CANNOT BE SOLD SEPARATELY) Call
Location: 27 Prev | Next Part: *Qty: 0 DOWEL (CANNOT BE SOLD SEPARATELY) Call
Location: 28 Prev | Next Part: 7L133119A *Qty: 1 CONNECTOR $34.46
Location: 29 Prev | Next Part: 7L905385A *Qty: 1 SUPPORT $63.90

* Quantity shown indicates the number of pieces used in the diagram.
