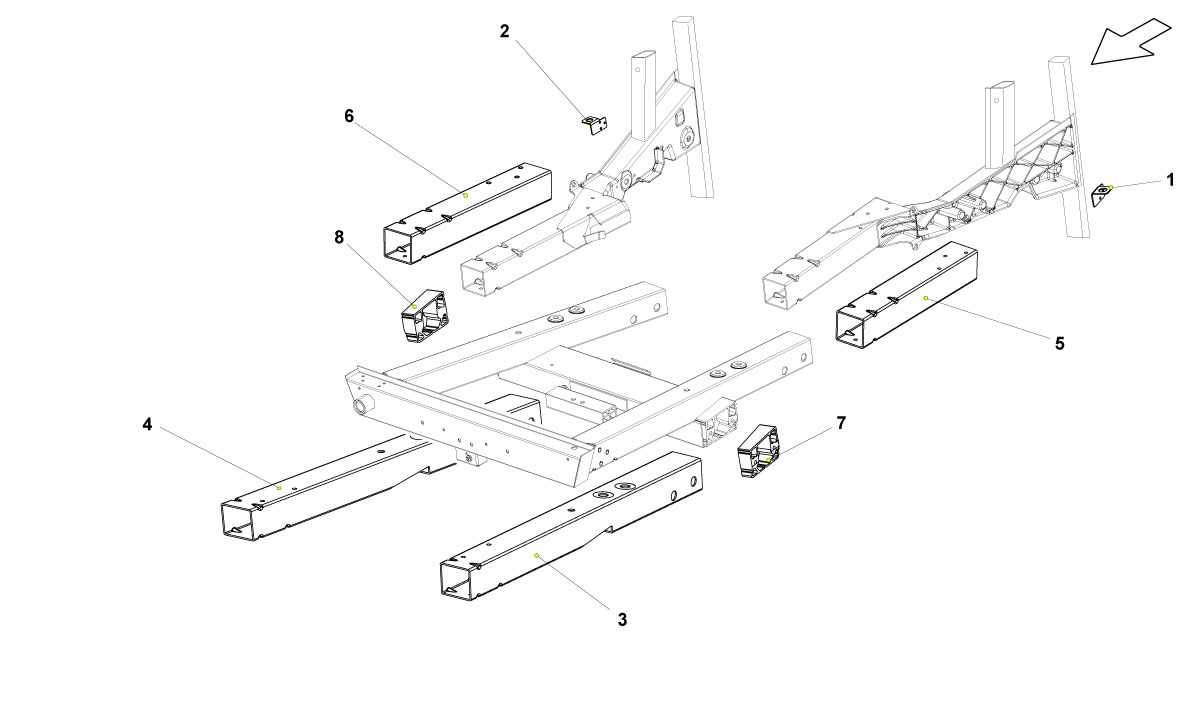

FRONT FRAME ELEMENTS

Go to Split View

FRONT FRAME ELEMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400805365 *Qty: 1 SUPPORT $164.83
Location: 2 Prev | Next Part: 400805366 *Qty: 1 SUPPORT $164.83
Location: 3 Prev | Next Part: 400806117 *Qty: 1 FRONT INFERIOR LEFT SIDE MEMBER II $1,723.37
Location: 4 Prev | Next Part: 400806118 *Qty: 1 FRONT INFERIOR RIGHT SIDE MEMBER II $1,723.37
Location: 5 Prev | Next Part: 400805113A *Qty: 1 SIDE MEMBER II $173.43
Location: 6 Prev | Next Part: 400805114A *Qty: 1 SIDE MEMBER II $142.50
Location: 7 Prev | Next Part: 400805955G *Qty: 1 BRACKET $126.77
Location: 8 Prev | Next Part: 400805956G *Qty: 1 BRACKET $126.77

* Quantity shown indicates the number of pieces used in the diagram.
