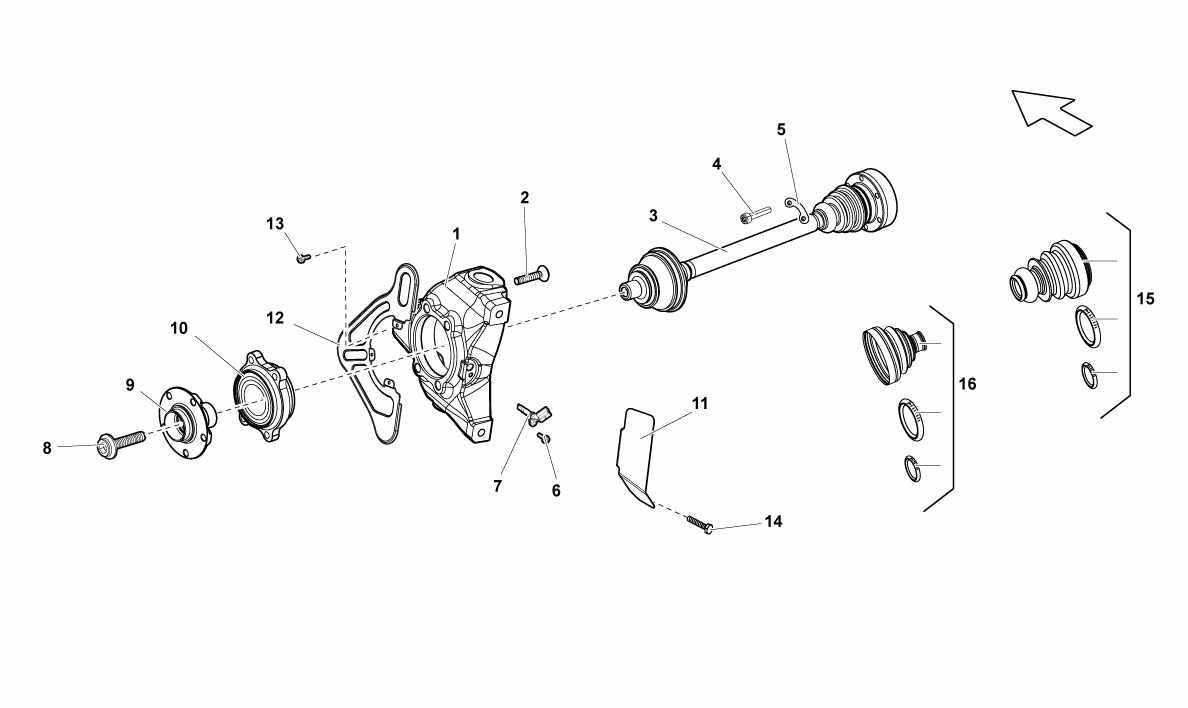

FRONT DRIVE SHAFT

Go to Split View

FRONT DRIVE SHAFT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400407246E *Qty: 1 FRONT RIGHT HUB CARRIER $565.63
Location: 1 Prev | Next Part: 400407245E *Qty: 1 FRONT LEFT HUB CARRIER $565.63
Location: 2 Prev | Next Part: WHT000237 *Qty: 8 SCREW $4.80
Location: 3 Prev | Next Part: 400407271A *Qty: 1 LH FRONT OMOKINETIC DRIVE SHAFT $1,653.51
Location: 3 Prev | Next Part: 400407272A *Qty: 1 RH FRONT OMOKINETIC DRIVE SHAFT $1,653.51
Location: 4 Prev | Next Part: N91108201 *Qty: 12 SCREW $2.81
Location: 5 Prev | Next Part: 420407357 *Qty: 6 PLATTE $1.27
Location: 6 Prev | Next Part: N01474011 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 4E0927804A *Qty: 1 RH ABS SENSOR $33.75
Location: 7 Prev | Next Part: 4E0927803A *Qty: 1 LH ABS SENSOR $35.20
Location: 8 Prev | Next Part: 4B0407643A *Qty: 2 SCREW $15.13
Location: 9 Prev | Next Part: 400407613A *Qty: 2 HUB $213.22
Location: 10 Prev | Next Part: 4E0407625E *Qty: 2 BEARING $186.57
Location: 11 Prev | Next Part: 400614754B *Qty: 1 RH PROTECTION $14.90
Location: 11 Prev | Next Part: 400614753B *Qty: 1 LH PROTECTION $14.90
Location: 12 Prev | Next Part: 403407722 *Qty: 1 RH PROTECTION $39.50
Location: 12 Prev | Next Part: 403407721 *Qty: 1 LH PROTECTION $39.50
Location: 13 Prev | Next Part: N10459201 *Qty: 6 SCREW M5X12 $0.90
Location: 14 Prev | Next Part: N91126601 *Qty: 2 SCREW $0.90
Location: 15 Prev | Next Part: *Qty: 2 KIT AXELSHAFT FORE INNER (CANNOT BE SOLD SEPARATELY) Call
Location: 16 Prev | Next Part: *Qty: 2 KIT AXELSHAFT FORE OUTER (CANNOT BE SOLD SEPARATELY) Call

* Quantity shown indicates the number of pieces used in the diagram.
