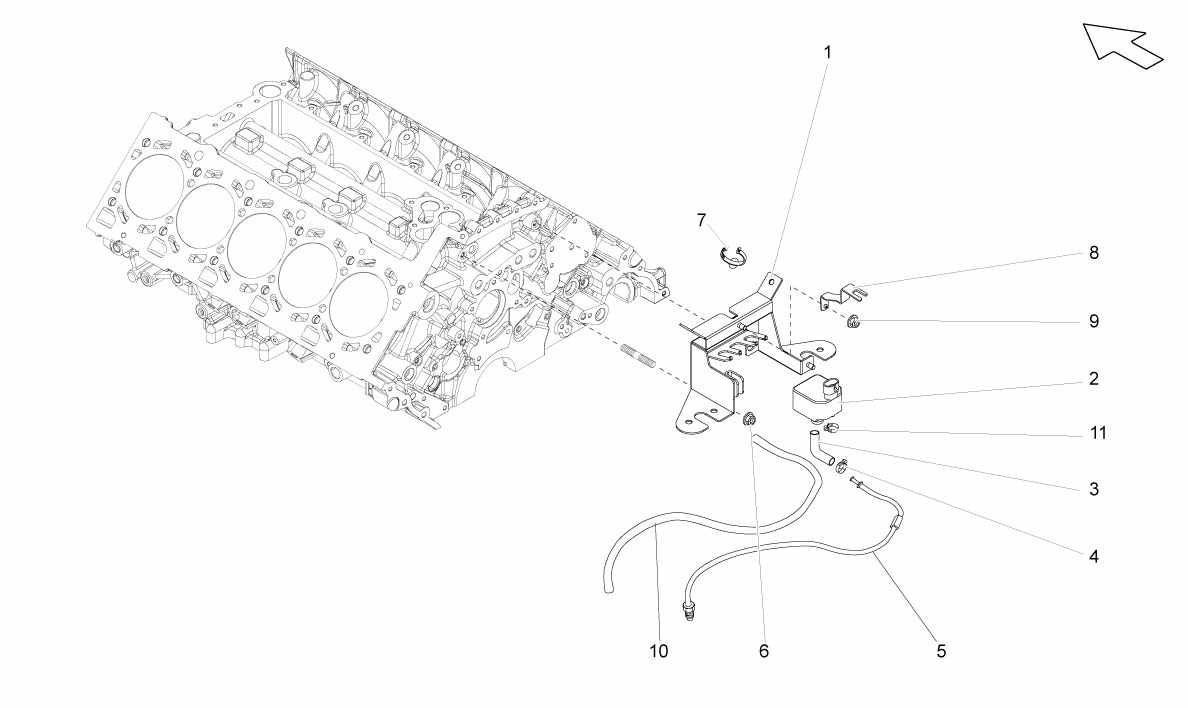

EMISSION CONTROL SYSTEM

Go to Split View

EMISSION CONTROL SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L905389B *Qty: 1 SUPPORT $69.23
Location: 2 Prev | Next Part: 7L906261A *Qty: 2 SENSOR $982.33
Location: 3 Prev | Next Part: 7L131893 *Qty: 2 SLEEVE $98.45
Location: 4 Prev | Next Part: N10198301 *Qty: 2 CLAMP $1.91
Location: 5 Prev | Next Part: 7L906387D *Qty: 1 RH PIPE Call
Location: 5 Prev | Next Part: 7L906389D *Qty: 1 LH PIPE Call
Location: 6 Prev | Next Part: N10261311 *Qty: 2 NUT $0.90
Location: 7 Prev | Next Part: N90926601 *Qty: 2 CLAMP $1.16
Location: 8 Prev | Next Part: 400145145 *Qty: 1 BRACKET $9.12
Location: 9 Prev | Next Part: N01508213 *Qty: 1 NUT $0.90
Location: 10 Prev | Next Part: 7L906099 *Qty: 2 SHEATH $29.55
Location: 11 Prev | Next Part: 400251189B *Qty: 2 CLAMP (SEE L140-A.04.05) $7.35

* Quantity shown indicates the number of pieces used in the diagram.
