ELETTRICAL SYSTEM

Go to Split View

ELETTRICAL SYSTEM

in cart
Go to Split View

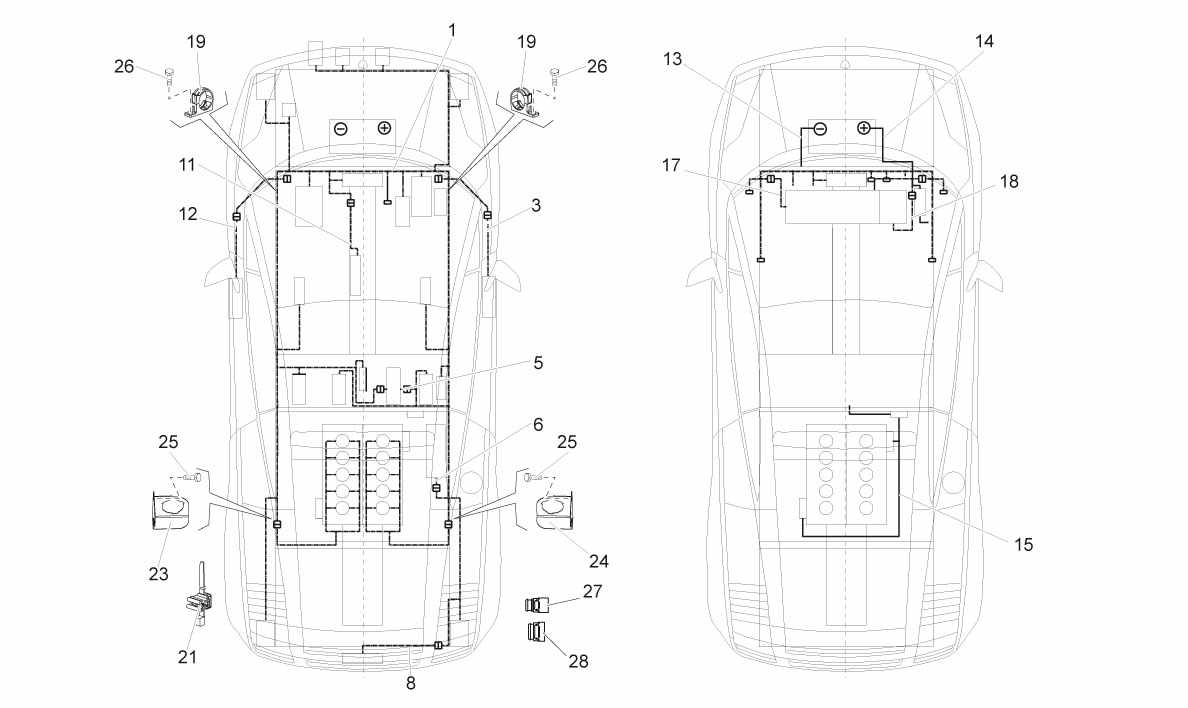

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 408971135B *Qty: 1 CENTRAL WIRING HARNESS (RNS / CD CHANGER / MANUAL GEARBOX / TPMS) $10,584.72
Location: 1 Prev | Next Part: 408971135B *Qty: 1 CENTRAL WIRING HARNESS (RNS / CD CHANGER / E-GEAR / TPMS) $10,584.72
Location: 1 Prev | Next Part: 408971135C *Qty: 1 CENTRAL WIRING HARNESS (RNS / CD CHANGER / REAR VIEW CAMERA / MANUAL GEARBOX / TPMS) $10,907.82
Location: 1 Prev | Next Part: 408971135B *Qty: 1 CENTRAL WIRING HARNESS (RNS / CD CHANGER / REAR VIEW CAMERA / E-GEAR / TPMS) $10,584.72
Location: 3 Prev | Next Part: 400971036B *Qty: 1 DOOR WIRING HARNESS (PASSENGER SIDE) $177.50
Location: 5 Prev | Next Part: 408971258D *Qty: 1 ENGINE RELAY BOX WIRING HARNESS $952.69
Location: 6 Prev | Next Part: 408971771 *Qty: 1 WIRING HARNESS (E-GEAR) $156.14
Location: 8 Prev | Next Part: 400971194A *Qty: 1 WIRING HARNESS $57.06
Location: 11 Prev | Next Part: 400970264 *Qty: 1 TUNNEL WIRING HARNESS $49.51
Location: 12 Prev | Next Part: 401971035B *Qty: 1 DOOR WIRING HARNESS (DRIVER SIDE) $182.61
Location: 13 Prev | Next Part: 400971235B *Qty: 1 CABLE $26.11
Location: 14 Prev | Next Part: *Qty: 1 CABLE (SEE TABLE 971.05.00 - SEE REF. 2) Call
Location: 15 Prev | Next Part: 400971793B *Qty: 1 CABLE (CABLE STARTER MOTOR EXCITATION) $121.40
Location: 17 Prev | Next Part: 408971315E *Qty: 1 WIRING HARNESS DASHBOARD (VERSIONS WITHOUT NAVIGATOR) $670.02
Location: 17 Prev | Next Part: 408971315G *Qty: 1 WIRING HARNESS DASHBOARD (VERSIONS WITH NAVIGATOR) $896.32
Location: 18 Prev | Next Part: 400971679A *Qty: 1 WIRING HARNESS (PASSENGER SIDE DRAWER) $92.05
Location: 19 Prev | Next Part: 400971899 *Qty: 3 CLAMP (? 23 MM) $6.04
Location: 21 Prev | Next Part: 3D0971838E *Qty: 2 CLAMP $1.12
Location: 23 Prev | Next Part: 400971503 *Qty: 1 LH BRACKET $22.67
Location: 24 Prev | Next Part: 400971504 *Qty: 1 RH BRACKET $22.67
Location: 25 Prev | Next Part: N10082911 *Qty: 4 SCREW (M6X15) $0.90
Location: 26 Prev | Next Part: N10003703 *Qty: 4 SCREW M6X17.00 (M6X17) $0.90
Location: 27 Prev | Next Part: 1J0973803 *Qty: 1 CONNECTOR FOR LICENSE PLATES LIGHTS WIRING $4.38
Location: 28 Prev | Next Part: 3D0973703 *Qty: 1 CONNECTOR FOR LICENSE PLATES LIGHTS WIRING $6.20

* Quantity shown indicates the number of pieces used in the diagram.
