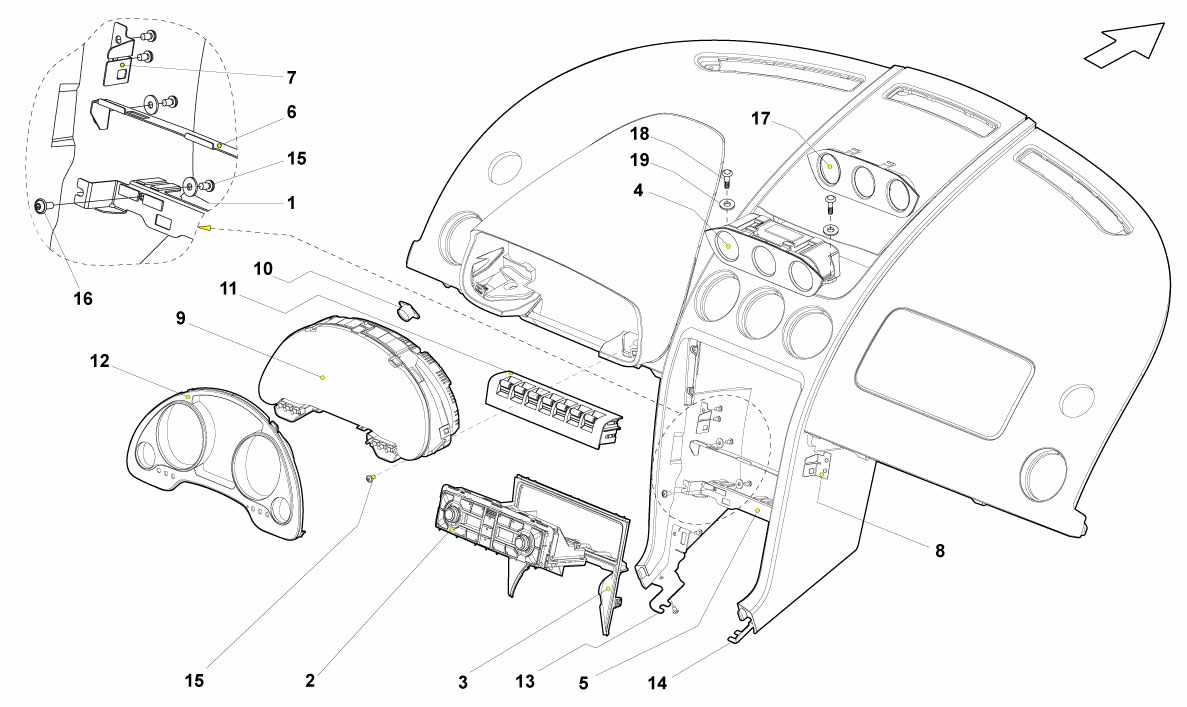

DASHBOARD INSTRUMENTS

Go to Split View

DASHBOARD INSTRUMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: WHT000778 *Qty: 4 WASHER $0.90
Location: 2 Prev | Next Part: 400820043B *Qty: 1 CLIMATE CONTROL PANEL (WITHOUT HEATED SEATS) $1,151.43
Location: 2 Prev | Next Part: 400820043C *Qty: 1 CLIMATE CONTROL PANEL (WITH HEATED SEATS) $1,192.32
Location: 3 Prev | Next Part: 400820319 *Qty: 1 ORNAMENT Call
Location: 4 Prev | Next Part: 403857251 *Qty: 1 CENTER INSTRUMENTS ASSEMBLY $414.54
Location: 5 Prev | Next Part: 400861393 *Qty: 1 BRACKET $31.16
Location: 6 Prev | Next Part: 400861400 *Qty: 1 BRACKET $8.83
Location: 7 Prev | Next Part: 400862409A *Qty: 1 BRACKET $6.77
Location: 8 Prev | Next Part: 400862410A *Qty: 1 BRACKET $6.77
Location: 9 Prev | Next Part: 403920900A *Qty: 1 INSTRUMENT PANEL (KM/H - MPH - COMBINED ENGINE SPEED INDICATOR - CLOCK - SPEEDOMETER INSTRUMENTATION FOR USA $2,243.28
Location: 10 Prev | Next Part: 400927521 *Qty: 1 REVERCE SWITCH (FOR E-GEAR) $53.50
Location: 11 Prev | Next Part: 401941567 *Qty: 1 SWITCH Superseded
Location: 12 Prev | Next Part: 403857053 *Qty: 1 ORNAMENT $234.91
Location: 12 Prev | Next Part: 403857053C *Qty: 1 ORNAMENT (CARBON INTERIOR - FOR E-GEAR) $4,253.20
Location: 12 Prev | Next Part: 403857053A *Qty: 1 ORNAMENT (COMBINED INSTRUMENTATION FOR E-GEAR) $234.91
Location: 12 Prev | Next Part: 403857053B *Qty: 1 ORNAMENT (CARBON INTERIOR) $4,253.20
Location: 13 Prev | Next Part: 400863253C *Qty: 1 SUPPORT $19.11
Location: 14 Prev | Next Part: 400863254C *Qty: 1 SUPPORT $19.11
Location: 15 Prev | Next Part: N10406602 *Qty: 14 SCREW M5X8.0 $0.90
Location: 16 Prev | Next Part: N90944603 *Qty: 2 SCREW M5X12.0 $0.90
Location: 17 Prev | Next Part: *Qty: 1 TRIM (NOT FOR SUPERLEGGERA MODEL) Call
Location: 18 Prev | Next Part: N10621601 *Qty: 2 SCREW $0.90
Location: 19 Prev | Next Part: 400868563B *Qty: 2 WASHER $6.58

* Quantity shown indicates the number of pieces used in the diagram.
