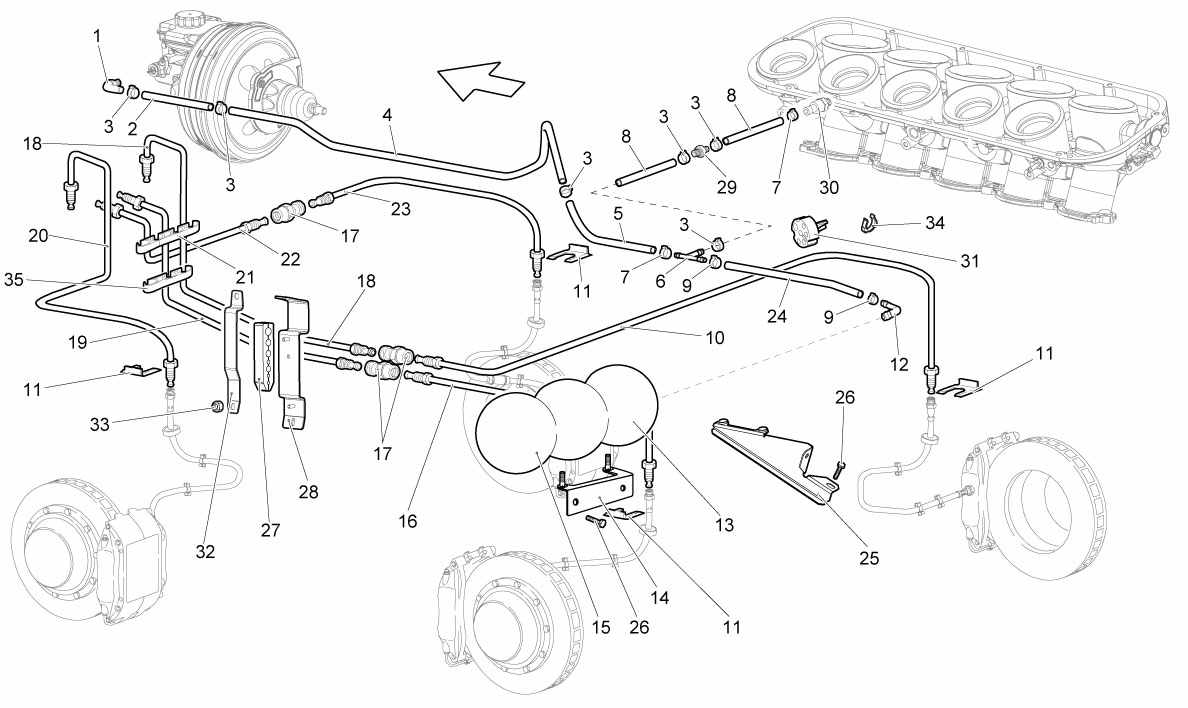

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400616807 *Qty: 1 CHECK VALVE $18.62
Location: 2 Prev | Next Part: 401611971B *Qty: 1 HOSE $34.89
Location: 3 Prev | Next Part: N10201901 *Qty: 6 CLAMP $1.35
Location: 4 Prev | Next Part: 400611936A *Qty: 1 PIPE $43.12
Location: 5 Prev | Next Part: 400611940B *Qty: 1 HOSE $141.65
Location: 6 Prev | Next Part: 400611921 *Qty: 1 CONNECTOR $1.39
Location: 7 Prev | Next Part: N0245097 *Qty: 1 CLAMP $12.38
Location: 8 Prev | Next Part: 400611937C *Qty: 2 HOSE $56.51
Location: 9 Prev | Next Part: 400251189E *Qty: 2 CLAMP $5.69
Location: 10 Prev | Next Part: 400611742B *Qty: 1 RH PIPE $62.21
Location: 11 Prev | Next Part: 191611715 *Qty: 7 PLATE $1.19
Location: 12 Prev | Next Part: 400612173 *Qty: 1 CONNECTOR $0.95
Location: 13 Prev | Next Part: N10017303 *Qty: 2 NUT $0.90
Location: 14 Prev | Next Part: 400611797 *Qty: 1 BRACKET $12.54
Location: 15 Prev | Next Part: 443131541 *Qty: 1 VACUUM TANK ASSEMBLY $23.48
Location: 16 Prev | Next Part: 400611741A *Qty: 1 LH PIPE $53.86
Location: 17 Prev | Next Part: 400611809 *Qty: 3 CONNECTOR $28.97
Location: 18 Prev | Next Part: 400611764A *Qty: 1 RH REAR PIPE $76.61
Location: 19 Prev | Next Part: 400611763A *Qty: 1 LH PIPE $76.61
Location: 20 Prev | Next Part: 400611761A *Qty: 1 LH PIPE $84.28
Location: 21 Prev | Next Part: 6N0611797D *Qty: 3 CLAMP $4.52
Location: 22 Prev | Next Part: 400611762A *Qty: 1 RH FRONT PIPE $76.61
Location: 23 Prev | Next Part: 400611724 *Qty: 1 RH PIPE $35.26
Location: 24 Prev | Next Part: 400611939A *Qty: 1 HOSE $34.65
Location: 25 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MODEL) Call
Location: 26 Prev | Next Part: N10171105 *Qty: 2 SCREW M6X16 $0.90
Location: 27 Prev | Next Part: 400121220D *Qty: 8 RUBBER SUPPORT $37.23
Location: 28 Prev | Next Part: *Qty: 0 BRACKET (SEE TABLE 121.03.00 - SEE REF. 17) Call
Location: 29 Prev | Next Part: 410616807 *Qty: 1 CHECK VALVE $14.82
Location: 30 Prev | Next Part: *Qty: 0 CHECK VALVE (SEE TABLE 129.03.00 - SEE REF. 28) Call
Location: 31 Prev | Next Part: 1J0611853 *Qty: 6 SPACER $0.90
Location: 32 Prev | Next Part: 400121097A *Qty: 2 BRACKET $9.27
Location: 33 Prev | Next Part: N01508213 *Qty: 4 NUT M6 $0.90
Location: 34 Prev | Next Part: 400611799 *Qty: 12 CLIP (? 5) $0.90
Location: 35 Prev | Next Part: 8Z0611797C *Qty: 1 CLAMP $1.24

* Quantity shown indicates the number of pieces used in the diagram.
