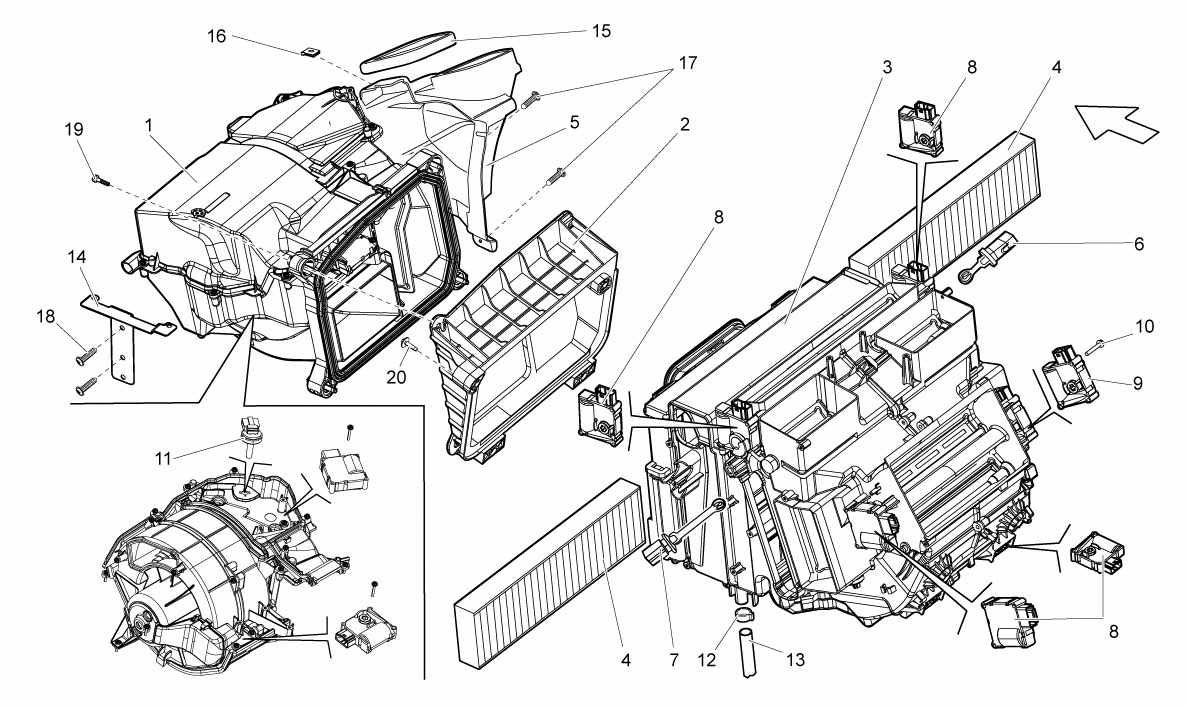

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4F0820155F *Qty: 1 HVAC UNIT $410.44
Location: 2 Prev | Next Part: 400820491 *Qty: 1 MANIFOLD $107.52
Location: 3 Prev | Next Part: 400820351C *Qty: 1 DISTRIBUTION CLIMATE BOX $1,577.36
Location: 4 Prev | Next Part: 4F0819439A *Qty: 2 FILTER $51.50
Location: 5 Prev | Next Part: 400820686A *Qty: 1 CONVEYOR $170.30
Location: 6 Prev | Next Part: 4F0820539 *Qty: 1 TEMPERATURE SENSOR $28.76
Location: 7 Prev | Next Part: 4F0820539A *Qty: 1 TEMPERATURE SENSOR $28.76
Location: 8 Prev | Next Part: 4F0820511A *Qty: 4 ACTUATOR $173.62
Location: 9 Prev | Next Part: 4F0820511B *Qty: 1 ACTUATOR $185.09
Location: 10 Prev | Next Part: WHT000704 *Qty: 15 SCREW $1.03
Location: 11 Prev | Next Part: 1J0907543A *Qty: 1 SENSOR $33.43
Location: 12 Prev | Next Part: N10201801 *Qty: 2 CLAMP $1.17
Location: 13 Prev | Next Part: 400260169 *Qty: 2 PIPE $20.52
Location: 14 Prev | Next Part: 400815135A *Qty: 1 BRACKET $14.22
Location: 15 Prev | Next Part: 400820061 *Qty: 1 GASKET $6.12
Location: 16 Prev | Next Part: WHT000916A *Qty: 1 CLIP $10.49
Location: 17 Prev | Next Part: N90986803 *Qty: 4 SCREW 4.2X13.0 $0.90
Location: 18 Prev | Next Part: *Qty: 4 SCREW (CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 1) Call
Location: 19 Prev | Next Part: N10472101 *Qty: 4 SCREW $1.12
Location: 20 Prev | Next Part: N10553801 *Qty: 4 SCREW $1.00

* Quantity shown indicates the number of pieces used in the diagram.
