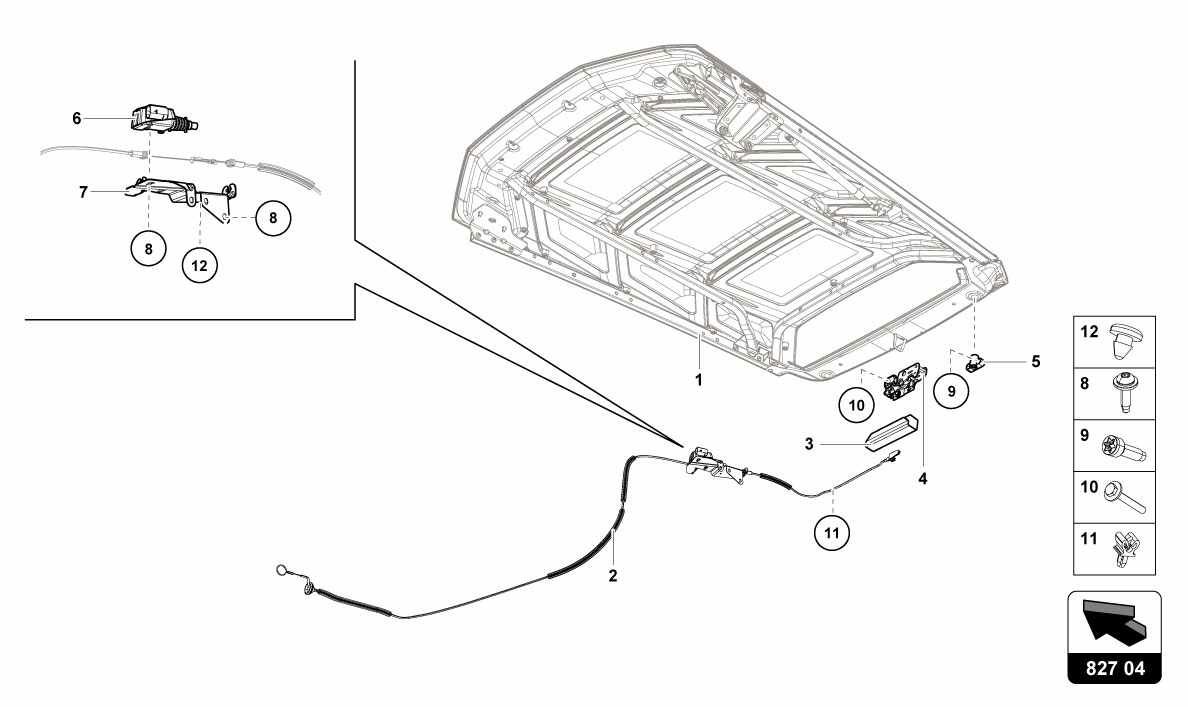

REAR HOOD-OPENING CABLE

Go to Split View

REAR HOOD-OPENING CABLE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: *Qty: 0 ENGINE HOOD (SEE TABLE 827.01.00) Call
Location: 2 Prev | Next Part: 4T8827531A *Qty: 1 BOWDEN CABLE $131.37
Location: 3 Prev | Next Part: 470825099 *Qty: 1 PROTECTION $70.03
Location: 4 Prev | Next Part: 1K1823509E *Qty: 1 HOOD LOCK $75.32
Location: 5 Prev | Next Part: 8P4827239B *Qty: 1 PUFFER $6.86
Location: 6 Prev | Next Part: 420959782 *Qty: 1 ACTUATOR $33.38
Location: 7 Prev | Next Part: 4T0827606A *Qty: 1 BRACKET $47.80
Location: 8 Prev | Next Part: WHT002607 *Qty: 1 SCREW (M5X35) $0.96
Location: 9 Prev | Next Part: N90643905 *Qty: 2 SCREW (M8X25) $1.24
Location: 10 Prev | Next Part: N10553804 *Qty: 2 SCREW (M6X45) $1.24
Location: 11 Prev | Next Part: N90997501 *Qty: 2 CLIP $2.31
Location: 12 Prev | Next Part: 470861147 *Qty: 2 RUBBER SEAL $8.05

* Quantity shown indicates the number of pieces used in the diagram.
