FRONT DIFFERENTIAL SUPPORT

Go to Split View

FRONT DIFFERENTIAL SUPPORT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4S0599285B *Qty: 1 LH SUPPORT $54.92
Location: 2 Prev | Next Part: 4S0599437B *Qty: 1 SUPPORT Call
Location: 2 Prev | Next Part: 4S0599438A *Qty: 1 RH SUPPORT Call
Location: 3 Prev | Next Part: *Qty: 1 BONDED RUBBER BUSH (IN RIF.3) Call
Location: 4 Prev | Next Part: 4S0599288A *Qty: 1 SUPPORT $47.42
Location: 5 Prev | Next Part: 4S0599361B *Qty: 1 LH SUPPORT $16.68
Location: 5 Prev | Next Part: 4S0599362B *Qty: 1 RH SUPPORT $16.68
Location: 6 Prev | Next Part: N10699901 *Qty: 4 SCREW M10X45 $1.61
Location: 7 Prev | Next Part: N10773801 *Qty: 2 SCREW M10X60 $2.68
Location: 8 Prev | Next Part: N10664801 *Qty: 4 SCREW M8X20 $0.90
Location: 9 Prev | Next Part: N10748601 *Qty: 4 SCREW M10X25 $1.91
Location: 10 Prev | Next Part: N10640301 *Qty: 2 SCREW M12X1.5X100X90 $4.13
Location: 11 Prev | Next Part: N0150816 *Qty: 2 NUT M12 $1.22
Location: 12 Prev | Next Part: N10699501 *Qty: 1 SCREW M10X95 $2.76
Location: 13 Prev | Next Part: N10261311 *Qty: 1 NUT M10 $0.90
Location: 1 Prev | Next Part: 420199387E *Qty: 1 HEAT SHIELD $17.98

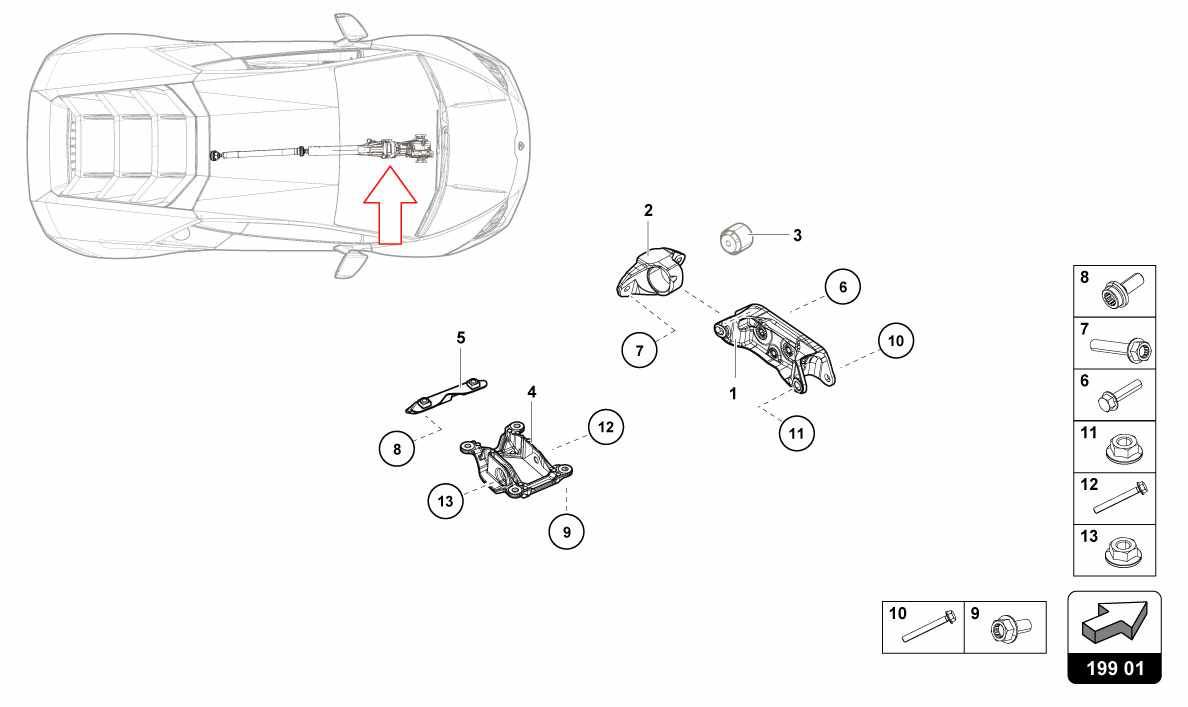

* Quantity shown indicates the number of pieces used in the diagram.
