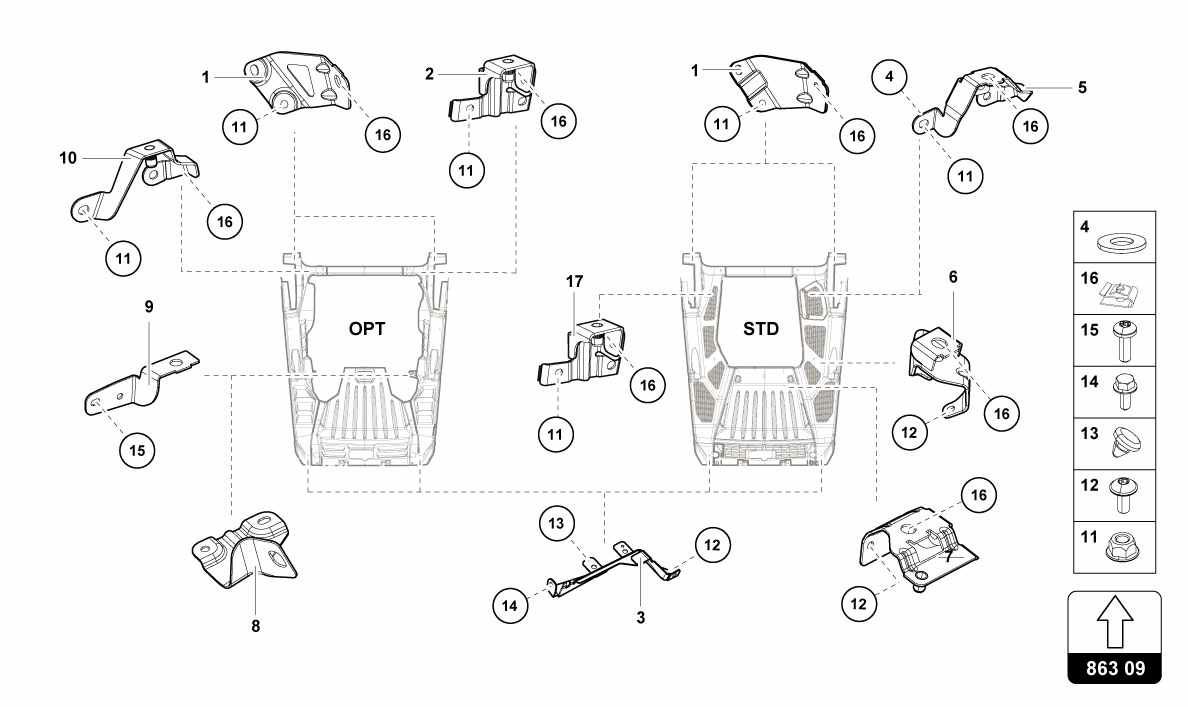

ENGINE BAY - FIXING

Go to Split View

ENGINE BAY - FIXING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T8863843A *Qty: 1 LH BRACKET (OPT) $26.85
Location: 1 Prev | Next Part: 4T8863844A *Qty: 1 RH BRACKET (OPT) $26.85
Location: 2 Prev | Next Part: 4T8863974B *Qty: 1 RH BRACKET (OPT) $40.82
Location: 3 Prev | Next Part: 4T0813285 *Qty: 1 LH BRACKET $25.39
Location: 3 Prev | Next Part: 4T0813286 *Qty: 1 RH BRACKET $25.47
Location: 4 Prev | Next Part: N01166623 *Qty: 22 WASHER $1.61
Location: 5 Prev | Next Part: 4T8863974A *Qty: 1 RH BRACKET $43.01
Location: 6 Prev | Next Part: 4T8864287C *Qty: 1 LH BRACKET $29.76
Location: 6 Prev | Next Part: 4T8864288C *Qty: 1 RH BRACKET $29.76
Location: 7 Prev | Next Part: 4T8864851B *Qty: 1 LH BRACKET $30.65
Location: 7 Prev | Next Part: 4T8864852B *Qty: 1 RH BRACKET $30.65
Location: 8 Prev | Next Part: 4T8864287C *Qty: 1 LH BRACKET (OPT) $29.76
Location: 8 Prev | Next Part: 4T8864288C *Qty: 1 RH BRACKET (OPT) $29.76
Location: 9 Prev | Next Part: 4T0864473 *Qty: 1 LH BRACKET (OPT) $12.05
Location: 9 Prev | Next Part: 4T0864474 *Qty: 1 RH BRACKET (OPT) $12.05
Location: 10 Prev | Next Part: 4T8863973B *Qty: 1 LH BRACKET (OPT) $33.56
Location: 11 Prev | Next Part: N01508210 *Qty: 1 NUT (M6) $0.90
Location: 12 Prev | Next Part: N91188301 *Qty: 8 SCREW (M6X20) $0.90
Location: 13 Prev | Next Part: 470861147 *Qty: 2 CATCH $7.00
Location: 14 Prev | Next Part: N91042302 *Qty: 8 SCREW (M6X16) $0.90
Location: 15 Prev | Next Part: N10734301 *Qty: 8 SCREW (M6X12) $1.41
Location: 16 Prev | Next Part: 8D0805960 *Qty: 24 CLIP $2.60
Location: 17 Prev | Next Part: 4T8863973A *Qty: 1 LH BRACKET $30.08

* Quantity shown indicates the number of pieces used in the diagram.
