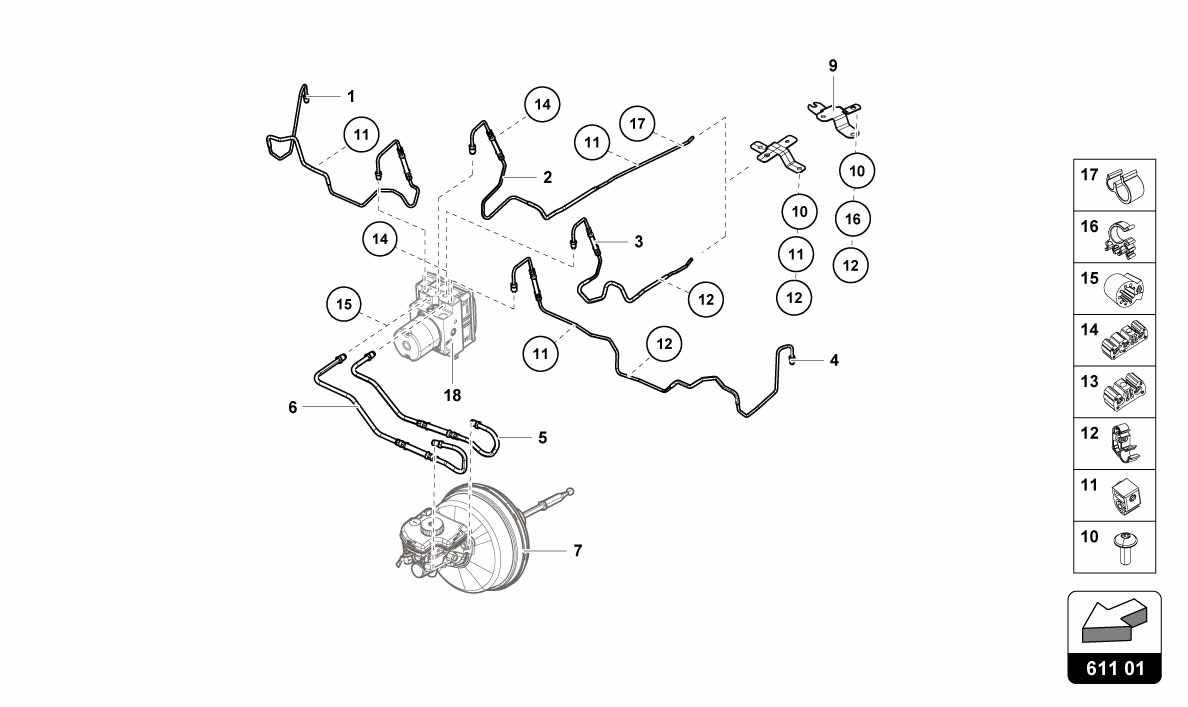

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T0614724D *Qty: 1 PIPE $58.60
Location: 2 Prev | Next Part: 4T0614725F *Qty: 1 PIPE $126.04
Location: 3 Prev | Next Part: 4T0614726E *Qty: 1 PIPE $129.45
Location: 4 Prev | Next Part: 4T0614723E *Qty: 1 PIPE $57.92
Location: 5 Prev | Next Part: 4S1614705A *Qty: 1 PIPE (POWER BRAKE/ABS CONTROL UNIT) $52.38
Location: 6 Prev | Next Part: 4S1614706A *Qty: 1 PIPE (POWER BRAKE/ABS CONTROL UNIT) $98.81
Location: 7 Prev | Next Part: *Qty: 0 POWER BRAKE (SEE TABLE 612.01) Call
Location: 8 Prev | Next Part: 4S0611797E *Qty: 1 BRACKET $18.74
Location: 9 Prev | Next Part: 4S0611797F *Qty: 4 BRACKET $18.74
Location: 10 Prev | Next Part: N91096701 *Qty: 10 SCREW (M6X16) $0.90
Location: 11 Prev | Next Part: 7LP611794 *Qty: 10 SUPPORT (1 POINT) $1.24
Location: 12 Prev | Next Part: 4S0611797D *Qty: 3 SUPPORT (2 POINT) $5.05
Location: 13 Prev | Next Part: *Qty: 3 SUPPORT (2 POINT) Call
Location: 14 Prev | Next Part: 8K0611797E *Qty: 3 SUPPORT (3 POINT) $1.19
Location: 15 Prev | Next Part: 8E0611853B *Qty: 2 SPACER $1.91
Location: 16 Prev | Next Part: 4S0611797J *Qty: 2 CLIP (3 POINT) $2.60
Location: 17 Prev | Next Part: 4S0611797G *Qty: 2 CLIP (2 POINT) $2.91
Location: 18 Prev | Next Part: *Qty: 0 ABS/EPS HYDRAULIC CONTROL UNIT (SEE TABLE 614.01) Call

* Quantity shown indicates the number of pieces used in the diagram.
