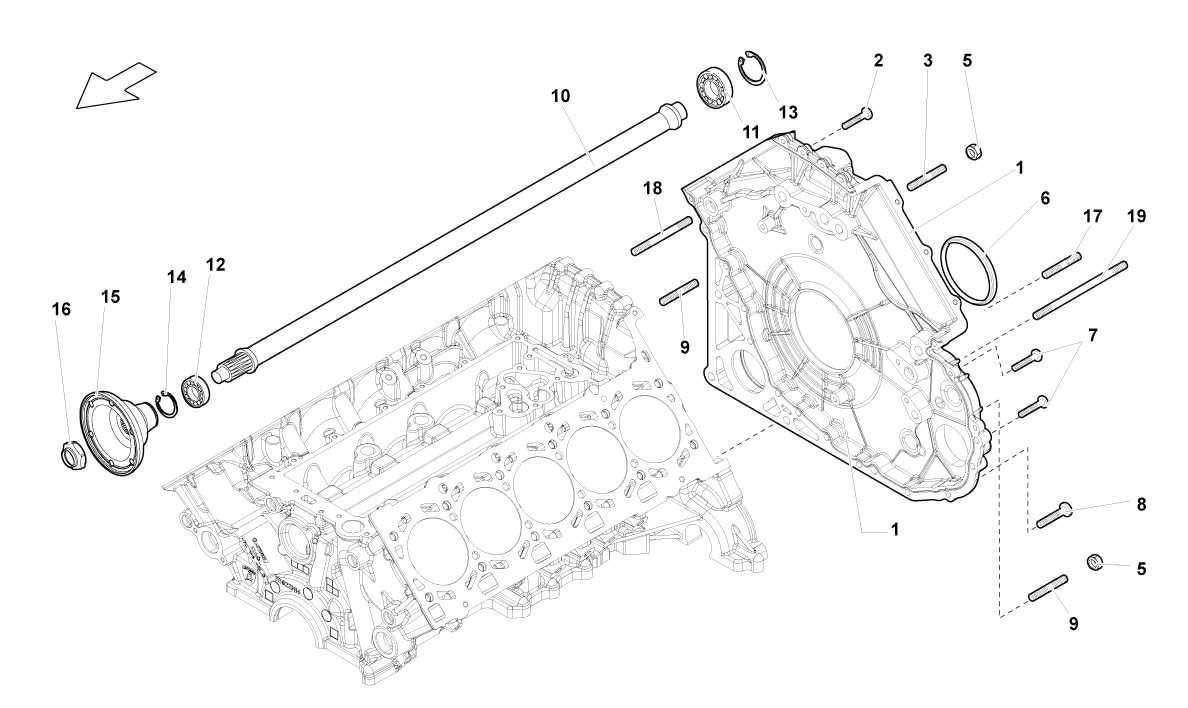

TIMING CHAIN COVER – PROPELLER SHAFT

Location Part # Quantity* Description Price Add To Cart
1 7L103173F 1 COVER Unavailable
2 N10124303 6 SCREW M6X20.0 Unavailable
3 WHT000198 3 STUD BOLT Unavailable
5 N10261306 9 NUT M10 Unavailable
6 7L103051A 1 SEAL RING Unavailable
7 N10156203 9 SCREW M6X30.0 Unavailable
8 N90462502 10 SCREW M8X32.0 Unavailable
9 N91061901 2 STUD BOLT M10X54 Unavailable
10 86311101A 1 MAIN ENGINE SHAFT Unavailable
11 86311435A 1 BEARING Unavailable
12 86311430 1 BEARING Unavailable
13 N0123191 1 SEEGER Unavailable
14 N0122902 1 SEEGER Unavailable
15 86311807 1 FLANGE Unavailable
16 86311495 1 RING NUT Unavailable
17 N91061901 2 STUD BOLT M10X54 Unavailable
18 WHT000197 1 STUD BOLT M10XM12X90 Unavailable
19 WHT002301 1 STUD BOLT M10X167 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
