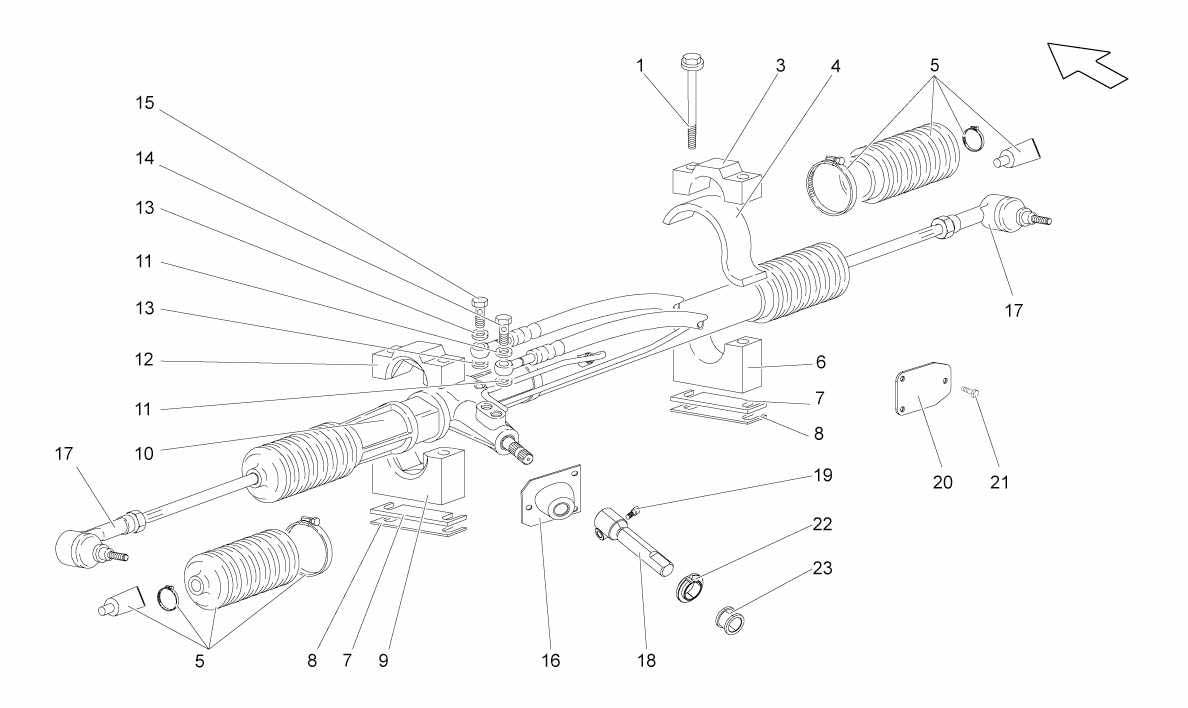

STEERING RACK

Go to Split View

STEERING RACK

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N10186105 *Qty: 4 SCREW BM10X90X45 $4.20
Location: 3 Prev | Next Part: 400422874C *Qty: 1 RIGHT SUPPORT $213.22
Location: 4 Prev | Next Part: 400422850 *Qty: 1 RUBBER SHIM $6.23
Location: 5 Prev | Next Part: 400419831B *Qty: 2 BOOT KIT $109.81
Location: 6 Prev | Next Part: 400422761B *Qty: 1 RIGHT SUPPORT $50.53
Location: 7 Prev | Next Part: 400422407 *Qty: 4 1MM ADJUSTMENT SHIM $3.62
Location: 8 Prev | Next Part: 400422407A *Qty: 12 0.5MM ADJUSTMENT SHIM $2.27
Location: 9 Prev | Next Part: 400422761C *Qty: 1 LEFT SUPPORT $86.99
Location: 10 Prev | Next Part: 401422061D *Qty: 1 POWER STEERING RACK Call
Location: 11 Prev | Next Part: N0138481 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 400422874B *Qty: 1 LEFT SUPPORT $120.36
Location: 13 Prev | Next Part: N0138492 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: *Qty: 0 CONNECTOR (SEE TABLE 422.09.00 REF. 5) Call
Location: 15 Prev | Next Part: 400422269A *Qty: 1 SCREW $10.19
Location: 16 Prev | Next Part: 400422326 *Qty: 1 GASKET $36.46
Location: 17 Prev | Next Part: *Qty: 2 BALL JOINT COUPLING (SEE TABLE 407.01.00 REF. 24 ? CAN BE SOLD SEPARATELY) Call
Location: 18 Prev | Next Part: 400419753 *Qty: 1 SLEEVE $383.78
Location: 19 Prev | Next Part: N0147267 *Qty: 1 SCREW M8X30 $0.90
Location: 20 Prev | Next Part: 400419780 *Qty: 1 GASKET $34.96
Location: 21 Prev | Next Part: N0150825 *Qty: 3 NUT M6 $0.90
Location: 22 Prev | Next Part: 400419147 *Qty: 1 BUSHING $35.40
Location: 23 Prev | Next Part: 400419139 *Qty: 1 BUSHING $31.66

* Quantity shown indicates the number of pieces used in the diagram.
