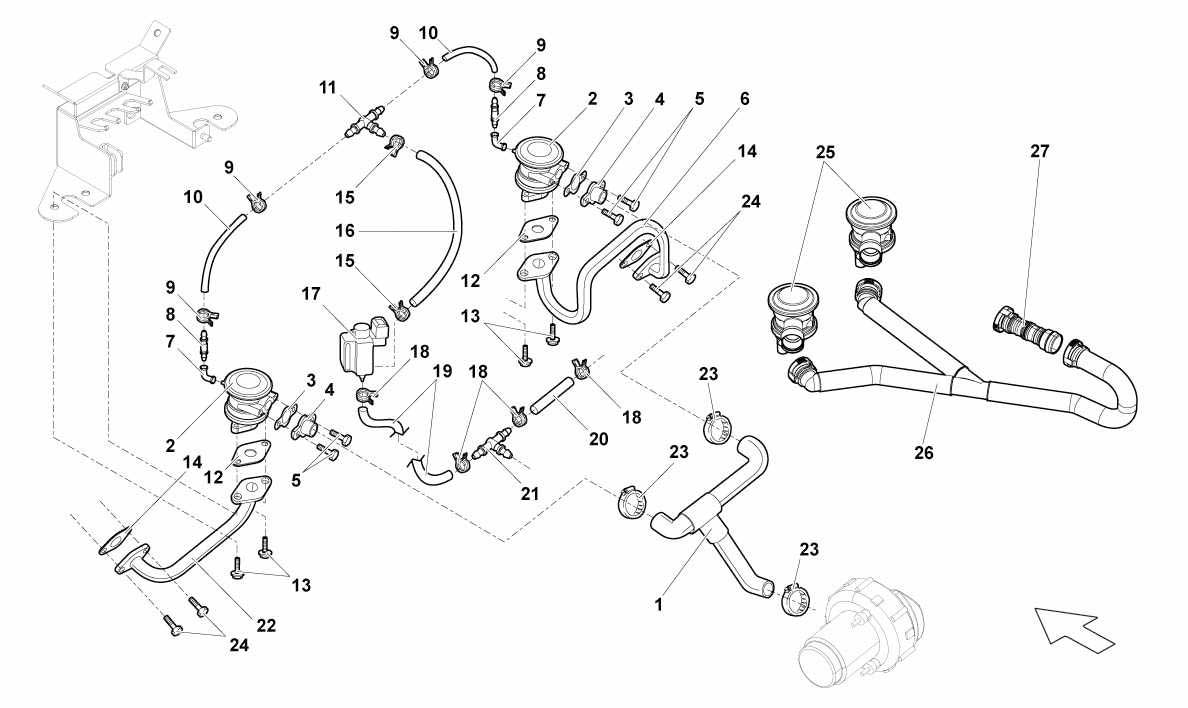

SECONDARY AIR SYSTEM

Go to Split View

SECONDARY AIR SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L131149A *Qty: 1 PIPE Unavailable
Location: 2 Prev | Next Part: 78131102F *Qty: 2 VALVE Unavailable
Location: 3 Prev | Next Part: 7L131358 *Qty: 2 GASKET Unavailable
Location: 4 Prev | Next Part: 7L131585A *Qty: 2 PIPE FITTING Unavailable
Location: 5 Prev | Next Part: N10338901 *Qty: 4 SCREW Unavailable
Location: 6 Prev | Next Part: 7L131626A *Qty: 1 PIPE Unavailable
Location: 7 Prev | Next Part: 7L131756 *Qty: 4 CONNECTOR Unavailable
Location: 8 Prev | Next Part: 400131791 *Qty: 2 CONNECTOR Unavailable
Location: 9 Prev | Next Part: 400133348 *Qty: 4 CLIP Unavailable
Location: 10 Prev | Next Part: 7L131845 *Qty: 2 PIPE Unavailable
Location: 11 Prev | Next Part: 7L133579 *Qty: 1 CONNECTOR Unavailable
Location: 12 Prev | Next Part: 7L131354 *Qty: 2 GASKET Unavailable
Location: 13 Prev | Next Part: N10338901 *Qty: 4 SCREW Unavailable
Location: 14 Prev | Next Part: 7L131357 *Qty: 2 GASKET Unavailable
Location: 15 Prev | Next Part: 400127217 *Qty: 2 CLIP Unavailable
Location: 16 Prev | Next Part: 7L133264 *Qty: 1 PIPE Unavailable
Location: 17 Prev | Next Part: 77906283 *Qty: 1 SOLENOID VALVE Unavailable
Location: 18 Prev | Next Part: 400133348 *Qty: 4 CLIP Unavailable
Location: 19 Prev | Next Part: 7L131058 *Qty: 1 PIPE Unavailable
Location: 20 Prev | Next Part: 7L131385 *Qty: 1 PIPE Unavailable
Location: 21 Prev | Next Part: 7L133579 *Qty: 1 CONNECTOR Unavailable
Location: 22 Prev | Next Part: 7L131625 *Qty: 1 PIPE Unavailable
Location: 23 Prev | Next Part: N91115201 *Qty: 1 CLAMP Unavailable
Location: 24 Prev | Next Part: N10338901 *Qty: 4 SCREW Unavailable
Location: 25 Prev | Next Part: *Qty: 0 VALVE (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
Location: 26 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
Location: 27 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
