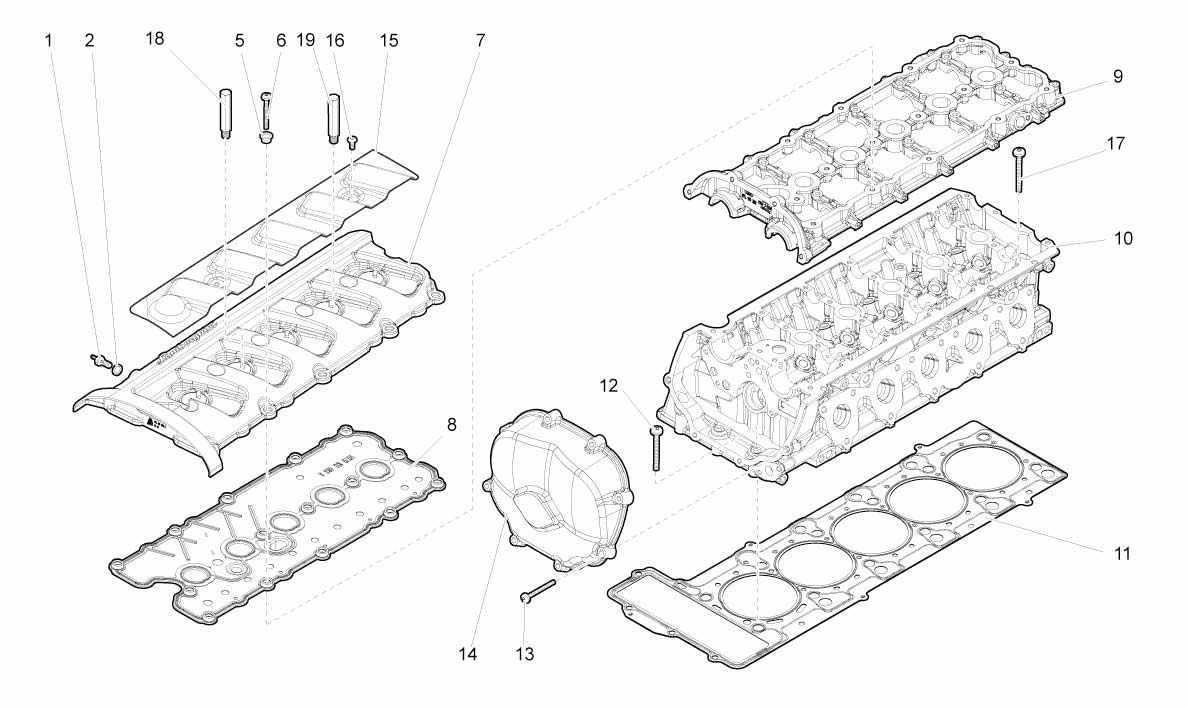

RIGHT CYLINDER HEAD COVERS

Go to Split View

RIGHT CYLINDER HEAD COVERS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: *Qty: 0 UNTIL THE VIN 6LA03722 IN CASE OF REPLECEMENT OF BOTH CYLINDEHEADS ORDER THE NEW CODES: 07L103063AA + Call
Location: - Prev | Next Part: *Qty: 0 CYLINDEHEADS ORDER THE NEW CODES: 07L103063AA + 07L103064AA) Call
Location: 1 Prev | Next Part: 7L103606A *Qty: 1 CONNECTOR $31.48
Location: 2 Prev | Next Part: N0138486 *Qty: 1 WASHER Superseded
Location: 5 Prev | Next Part: 7L103195A *Qty: 16 BUSHING $5.39
Location: 6 Prev | Next Part: N90917201 *Qty: 14 SCREW $0.90
Location: 7 Prev | Next Part: 7L103476F *Qty: 1 COVER $677.59
Location: 8 Prev | Next Part: 7L103484D *Qty: 1 GASKET $325.94
Location: 9 Prev | Next Part: *Qty: 1 RH SET PLATE (CANNOT BE SOLD SEPARATELY - SEE REF.10) Call
Location: 10 Prev | Next Part: 7L103064A *Qty: 1 ASSEMBLEY 1-5 CYLINDER HEAD (UNTIL THE VIN 6LA03722) $13,256.72
Location: 10 Prev | Next Part: 7L103064A *Qty: 1 ASSEMBLEY 1-5 CYLINDER HEAD (FROM VIN 6LA03723 ATTENTION UNTIL THE VIN 6LA03722 IN CASE OF REPLECEMENT OF BOTH CYLINDEHEADS ORDER THE NEW CODES: 07L103063AA + 07L103064AA) $13,256.72
Location: 11 Prev | Next Part: 7L103383G *Qty: 1 GASKET Call
Location: 12 Prev | Next Part: N10470702 *Qty: 1 SCREW $0.90
Location: 13 Prev | Next Part: N10156206 *Qty: 8 SCREW $0.90
Location: 14 Prev | Next Part: 6E109286D *Qty: 1 COVER $48.02
Location: 15 Prev | Next Part: 7L103908A *Qty: 1 COVER $143.53
Location: 16 Prev | Next Part: N10335202 *Qty: 2 SCREW $0.90
Location: 17 Prev | Next Part: WHT000374 *Qty: 12 SCREW $30.01
Location: 18 Prev | Next Part: 7L103728A *Qty: 1 STUD - 38 mm $14.10
Location: 19 Prev | Next Part: 7L103728 *Qty: 1 STUD - 32 mm $14.00

* Quantity shown indicates the number of pieces used in the diagram.
