REAR DRIVE SHAFT

in cart
Go to Split View

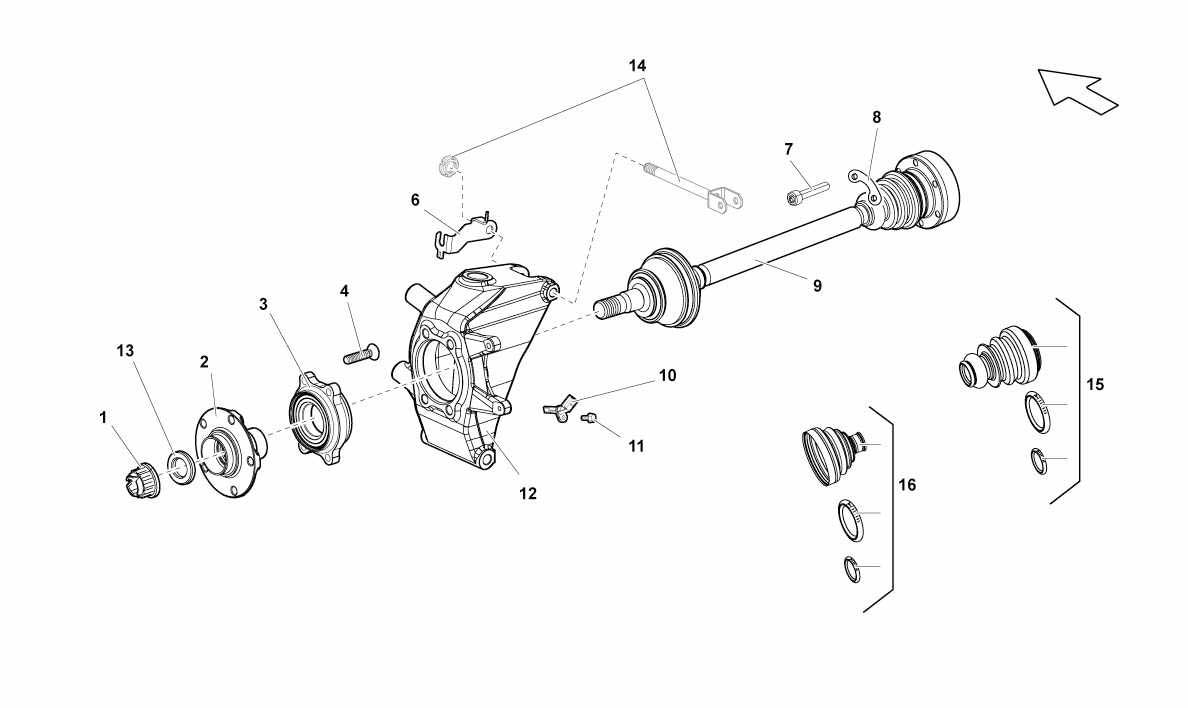

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L0407396 *Qty: 2 NUT Unavailable
Location: 2 Prev | Next Part: 400407613 *Qty: 2 HUB Superseded
Location: 3 Prev | Next Part: 4E0407625D *Qty: 2 BEARING Unavailable
Location: 4 Prev | Next Part: WHT000237 *Qty: 8 SCREW Unavailable
Location: 6 Prev | Next Part: 400615382 *Qty: 1 RH BRACKET Unavailable
Location: 6 Prev | Next Part: 400615381 *Qty: 1 LH BRACKET Unavailable
Location: 7 Prev | Next Part: WHT001331 *Qty: 12 SCREW Unavailable
Location: 8 Prev | Next Part: 7L0407357A *Qty: 6 PLATE Unavailable
Location: 9 Prev | Next Part: 400501212E *Qty: 1 RH REAR OMOKINETIC DRIVE SHAFT Unavailable
Location: 9 Prev | Next Part: 400501211E *Qty: 1 LH REAR OMOKINETIC DRIVE SHAFT Unavailable
Location: 10 Prev | Next Part: 4E0927804A *Qty: 1 RH ABS SENSOR Unavailable
Location: 10 Prev | Next Part: 4E0927803A *Qty: 1 LH ABS SENSOR Unavailable
Location: 11 Prev | Next Part: N10226101 *Qty: 2 SCREW Unavailable
Location: 12 Prev | Next Part: 400505433 *Qty: 1 REAR LEFT HUB CARRIER Unavailable
Location: 12 Prev | Next Part: 400505434 *Qty: 1 REAR RIGHT HUB CARRIER Unavailable
Location: 13 Prev | Next Part: 400501226 *Qty: 2 WASHER Unavailable
Location: 14 Prev | Next Part: *Qty: 0 SCREW - NUT (SEE TABLE 505.05.00) Unavailable
Location: 15 Prev | Next Part: 400498099C *Qty: 2 KIT AXELSHAFT REAR INNER Unavailable
Location: 16 Prev | Next Part: 400498099B *Qty: 2 KIT AXELSHAFT REAR OUTER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
