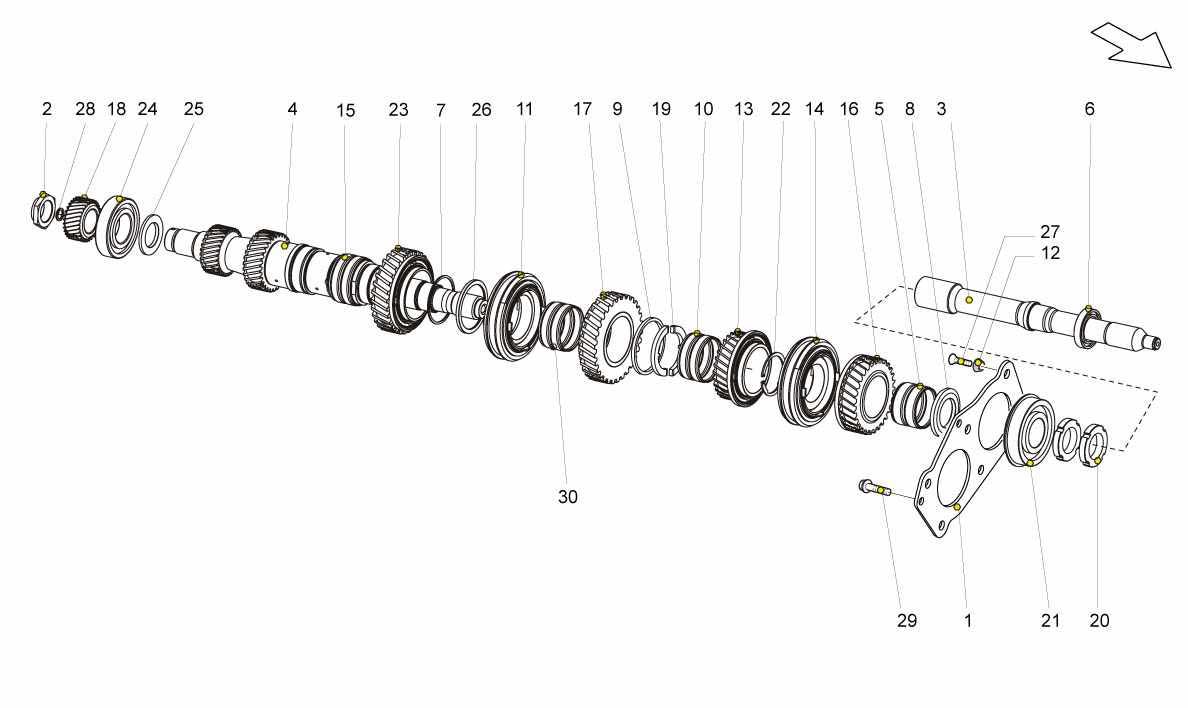

MAIN SHAFT

Go to Split View

MAIN SHAFT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86301193B *Qty: 1 PLATE $108.00
Location: 2 Prev | Next Part: 86307303 *Qty: 2 RING NUT M27X1.5 $75.03
Location: 3 Prev | Next Part: 86311103A *Qty: 1 SHAFT $596.14
Location: 4 Prev | Next Part: 86311105A *Qty: 1 MAIN SHAFT $839.00
Location: 5 Prev | Next Part: 86311118 *Qty: 1 ROLLER CAGE $54.68
Location: 6 Prev | Next Part: 86311133 *Qty: 1 BEARING $38.55
Location: 7 Prev | Next Part: 86311152 *Qty: 1 RING $16.14
Location: 8 Prev | Next Part: 86311157 *Qty: 1 SPACER $55.91
Location: 9 Prev | Next Part: 86311183 *Qty: 1 RING $34.75
Location: 10 Prev | Next Part: 86311228 *Qty: 1 ROLLER CAGE $29.22
Location: 11 Prev | Next Part: 86311241 *Qty: 1 SYNCHRONIZING GEAR $1,207.34
Location: 12 Prev | Next Part: 86311276 *Qty: 6 ROSETTE $0.90
Location: 13 Prev | Next Part: 86311285A *Qty: 1 THIRD GEAR $848.94
Location: 14 Prev | Next Part: 86311301A *Qty: 1 SYNCHRONIZING GEAR $925.64
Location: 15 Prev | Next Part: 86311325 *Qty: 1 ROLLER CAGE $36.87
Location: 16 Prev | Next Part: 86311351A *Qty: 1 FOURTH GEAR $555.40
Location: 17 Prev | Next Part: 86311389A *Qty: 1 SIXTH GEAR $450.02
Location: 18 Prev | Next Part: 86311507A *Qty: 1 REVERSE IDLE GEAR $432.89
Location: 19 Prev | Next Part: 86311876 *Qty: 1 RING $191.14
Location: 20 Prev | Next Part: 86307291A *Qty: 2 RING NUT $62.26
Location: 21 Prev | Next Part: 86311235A *Qty: 2 BEARING $74.01
Location: 22 Prev | Next Part: 86311287A *Qty: 1 RING $16.14
Location: 23 Prev | Next Part: 86311361C *Qty: 1 FIFTH GEAR $575.58
Location: 24 Prev | Next Part: 86311372C *Qty: 2 BEARING $224.09
Location: 25 Prev | Next Part: 86311357 *Qty: 1 BUSHING $32.43
Location: 26 Prev | Next Part: 86311876B *Qty: 1 SPACER $118.35
Location: 27 Prev | Next Part: N90744801 *Qty: 6 SCREW $0.90
Location: 28 Prev | Next Part: N91014801 *Qty: 1 O-RING $1.05
Location: 29 Prev | Next Part: N90063703 *Qty: 1 SCREW $1.44
Location: 30 Prev | Next Part: 86311150 *Qty: 1 ROLLER CAGE $34.95

* Quantity shown indicates the number of pieces used in the diagram.
