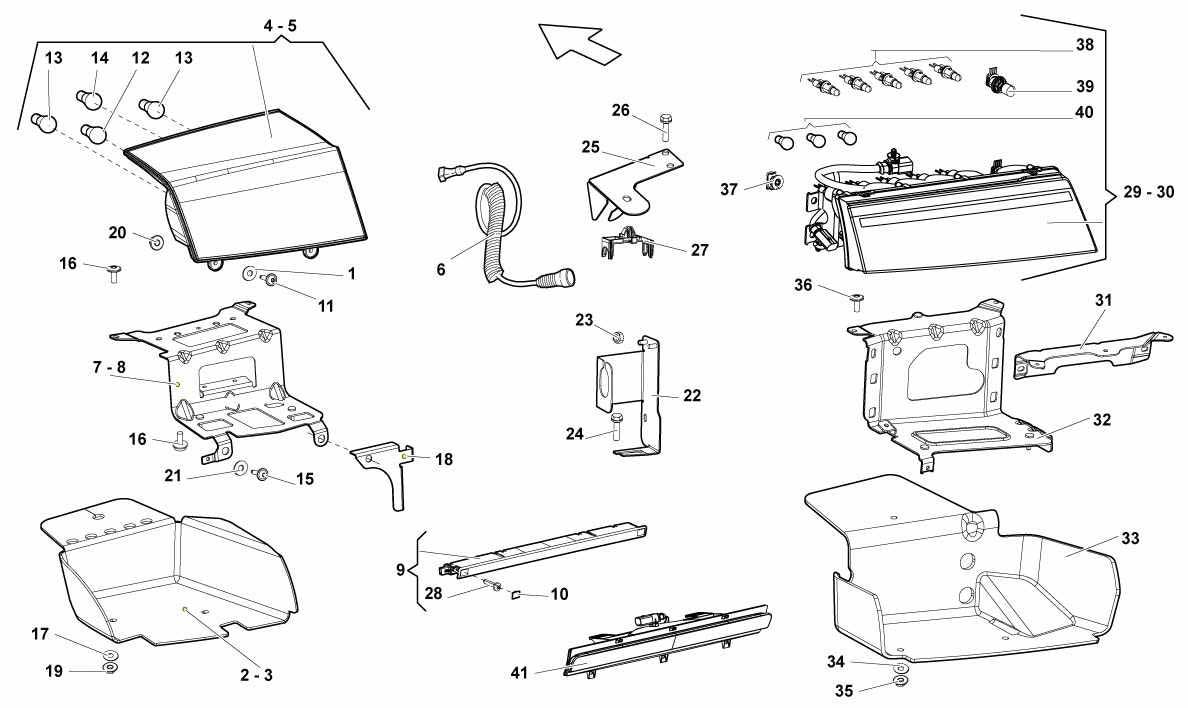

LIGHTS

Go to Split View

LIGHTS

Location Part # Quantity* Description Price Add To Cart
1 WHT000778 4 WASHER Unavailable
2 407863777 1 LH REAR LAMP HEAT SHIELD Unavailable
3 407863778 1 RH REAR LAMP HEAT SHIELD Unavailable
4 400945095K 1 REAR LAMP- LH (UNTIL THE VIN 6LA03892 REPLACE ALSO THE REF. 5) Unavailable
4 400945095L 1 REAR LAMP- LH (DARK COLORED SHIELD - UNTIL THE VIN 6LA03883 REPLACE ALSO THE REF. 5) Unavailable
5 400945096K 1 REAR LAMP- RH (UNTIL THE VIN 6LA03883 REPLACE ALSO THE REF. 4) Unavailable
5 400945096L 1 REAR LAMP- RH (DARK COLORED SHIELD - UNTIL THE VIN 6LA03883 REPLACE ALSO THE REF. 4) Unavailable
6 407971170A 1 HARNESS FOR ENGINE HOOD Unavailable
6 407971170B 1 HARNESS FOR BRAKE LIGHTS Unavailable
6 407971170C 1 HARNESS FOR ENGINE HOOD (REAR VIEW CAMERA) Unavailable
7 407945568 1 RH REAR LAMP BRACKET Unavailable
8 407945569 1 LH REAR LAMP BRACKET Unavailable
9 4B9945097A 1 STOP LAMP Unavailable
10 4B9945289 2 STOP LAMP COVER Unavailable
11 WHT000757 4 SCREW M6X16 Unavailable
12 N0177326 4 BULB (P21W-12V21W) Unavailable
13 N0177383 2 BULB (P21/5W-12V21.5W) Unavailable
14 N10256402 4 BULB (PY21W12V21W) Unavailable
15 N10404501 4 SCREW M4X16 Unavailable
16 N90847901 4 SCREW M6X15.0 Unavailable
17 N0116946 4 WASHER Unavailable
18 400945568 1 REAR LAMP BRACKET- RH Unavailable
18 400945569 1 REAR LAMP BRACKET- LH Unavailable
19 N0150825 4 NUT Unavailable
20 N10227803 4 NUT M6X20 Unavailable
21 N10663401 4 WASHER Unavailable
22 0 SUPPORT (VALID FOR A DIFFERENT MODEL) Unavailable
23 0 NUT (VALID FOR A DIFFERENT MODEL) Unavailable
24 0 SCREW (VALID FOR A DIFFERENT MODEL) Unavailable
25 407971830A 1 SUPPORT Unavailable
26 N10621601 2 SCREW M4X12 Unavailable
27 1K0937545M 1 SUPPORT Unavailable
28 2 SCREW (CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 9) Unavailable
29 0 REAR LAMP- LH (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
30 0 REAR LAMP- RH (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
31 0 REAR LAMP BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
32 0 REAR LAMP BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
33 0 REAR LAMP HEAT SHIELD (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
34 0 WASHER (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
35 0 NUT (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
36 0 SCREW M6X15.0 (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
37 0 CLIP (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
38 0 BULB (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
39 0 BULB (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
40 0 BULB (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
41 0 REAR FOG LAMP (VALID FOR A DIFFERENT MODEL YEAR) Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
