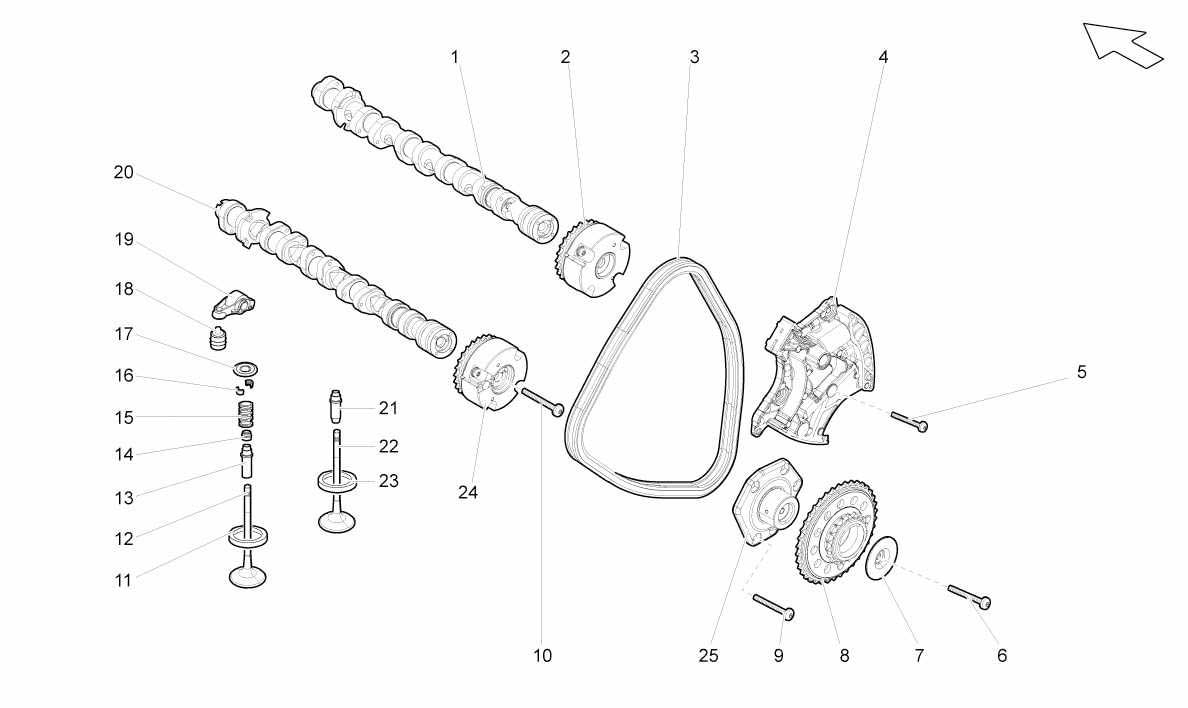

LEFT HEAD TIMING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L109101S *Qty: 1 INTAKE CAMSHAFT $375.86
Location: 2 Prev | Next Part: 7L109083A *Qty: 1 PHASE TRANSFORMER $220.29
Location: 3 Prev | Next Part: 79109229L *Qty: 1 CHAIN $87.34
Location: 4 Prev | Next Part: 6E109217E *Qty: 1 CHAIN TIGHTENER $320.84
Location: 5 Prev | Next Part: N10124303 *Qty: 6 SCREW M6X20 $0.90
Location: 6 Prev | Next Part: N10335205 *Qty: 1 SCREW M6X12.0 $0.90
Location: 7 Prev | Next Part: 79109435G *Qty: 1 WASHER $12.24
Location: 8 Prev | Next Part: 79109569K *Qty: 1 GEAR $227.15
Location: 9 Prev | Next Part: N10505402 *Qty: 3 SCREW M6X20 $0.90
Location: 10 Prev | Next Part: N91042802 *Qty: 2 SCREW M12X1-25X60X30 $2.68
Location: 11 Prev | Next Part: 6D103441L *Qty: 10 EXHAUST VALVE SEAT $5.91
Location: 12 Prev | Next Part: 6D109611H *Qty: 10 EXHAUST VALVE $43.45
Location: 13 Prev | Next Part: 6D103415F *Qty: 10 EXHAUST GUIDE $60.20
Location: 14 Prev | Next Part: 57109675 *Qty: 20 GASKET (INTAKE/EXHAUST) $8.42
Location: 15 Prev | Next Part: 6E109623 *Qty: 10 SPRING $12.01
Location: 16 Prev | Next Part: 36109651 *Qty: 20 VALVE COTTER $1.91
Location: 17 Prev | Next Part: 6E109641A *Qty: 10 TAPPET UPPER PLATE $8.42
Location: 18 Prev | Next Part: 57109521 *Qty: 10 HYDRAULIC ELEMENT $13.70
Location: 19 Prev | Next Part: 6D109417F *Qty: 10 LEVER $65.20
Location: 20 Prev | Next Part: 7L109102Q *Qty: 1 EXHAUST CAMSHAFT $319.84
Location: 21 Prev | Next Part: 7L103415 *Qty: 10 INTAKE GUIDE $60.20
Location: 22 Prev | Next Part: 6D109601H *Qty: 10 INTAKE VALVE $51.83
Location: 23 Prev | Next Part: 6D103431L *Qty: 10 INTAKE VALVE SEAT $4.61
Location: 24 Prev | Next Part: 7L109084C *Qty: 1 PHASE TRANSFORMER $243.54
Location: 25 Prev | Next Part: 79109511G *Qty: 1 LEFT SUPPORT $72.30

* Quantity shown indicates the number of pieces used in the diagram.
