HYDRAULIK UNIT

Go to Split View

HYDRAULIK UNIT

in cart
Go to Split View

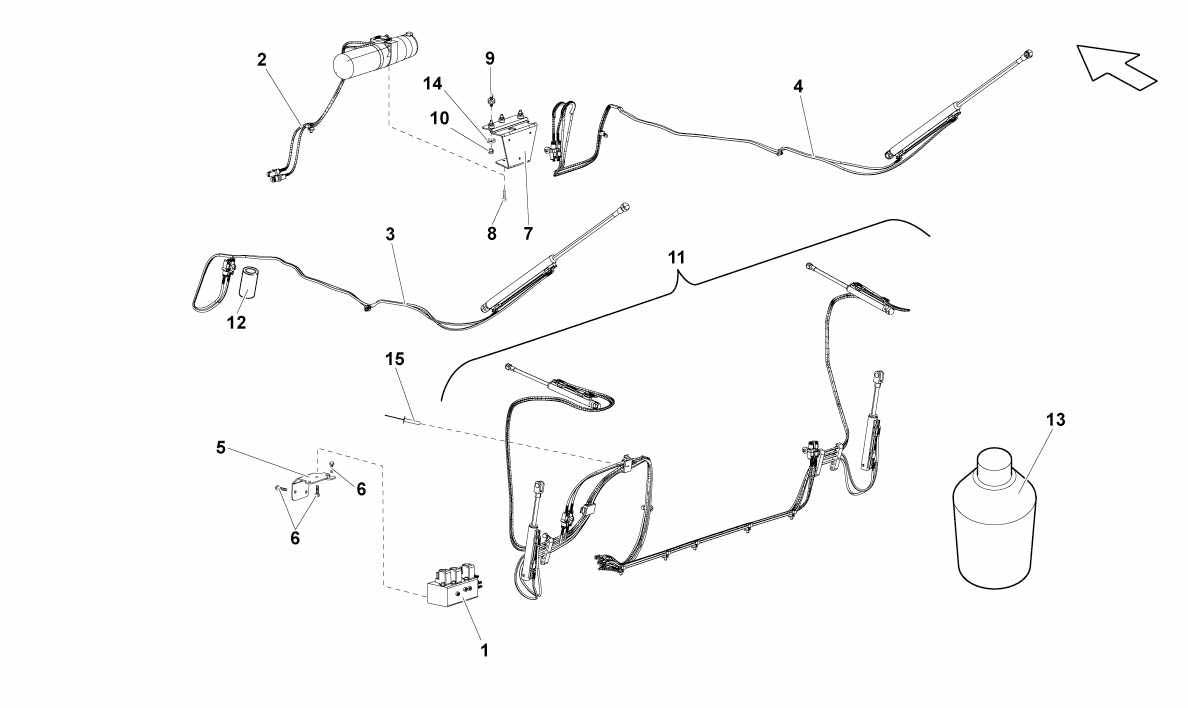

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 407871806 *Qty: 1 HYDRAULIC VALVE BLOCK $12,073.26
Location: 2 Prev | Next Part: 407871791 *Qty: 1 HYDRAULIC PUMP $6,821.69
Location: 3 Prev | Next Part: 407827551 *Qty: 1 HYDRAULIC CYLINDER LEFT $512.47
Location: 4 Prev | Next Part: 407827552 *Qty: 1 HYDRAULIC CYLINDER RIGHT $512.47
Location: 5 Prev | Next Part: 407813218A *Qty: 1 BRACKET $45.20
Location: 6 Prev | Next Part: N90847901 *Qty: 5 SCREW $0.90
Location: 7 Prev | Next Part: 407813548C *Qty: 1 BRACKET $30.65
Location: 8 Prev | Next Part: N90847901 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 400972081 *Qty: 3 PUFFER $8.40
Location: 10 Prev | Next Part: N0150825 *Qty: 3 NUT $0.90
Location: 11 Prev | Next Part: 407871789 *Qty: 1 HYDRAULIC UNIT SOFT TOP $6,821.69
Location: 12 Prev | Next Part: 4B0971790B *Qty: 3 PROTECTION $0.90
Location: 13 Prev | Next Part: 900000140 *Qty: 1 OIL $77.73
Location: 14 Prev | Next Part: N90107607 *Qty: 3 WASHER $0.90
Location: 15 Prev | Next Part: N0161992 *Qty: 2 RIVET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
