ENGINE AIR CONVEYOR

Go to Split View

ENGINE AIR CONVEYOR

in cart
Go to Split View

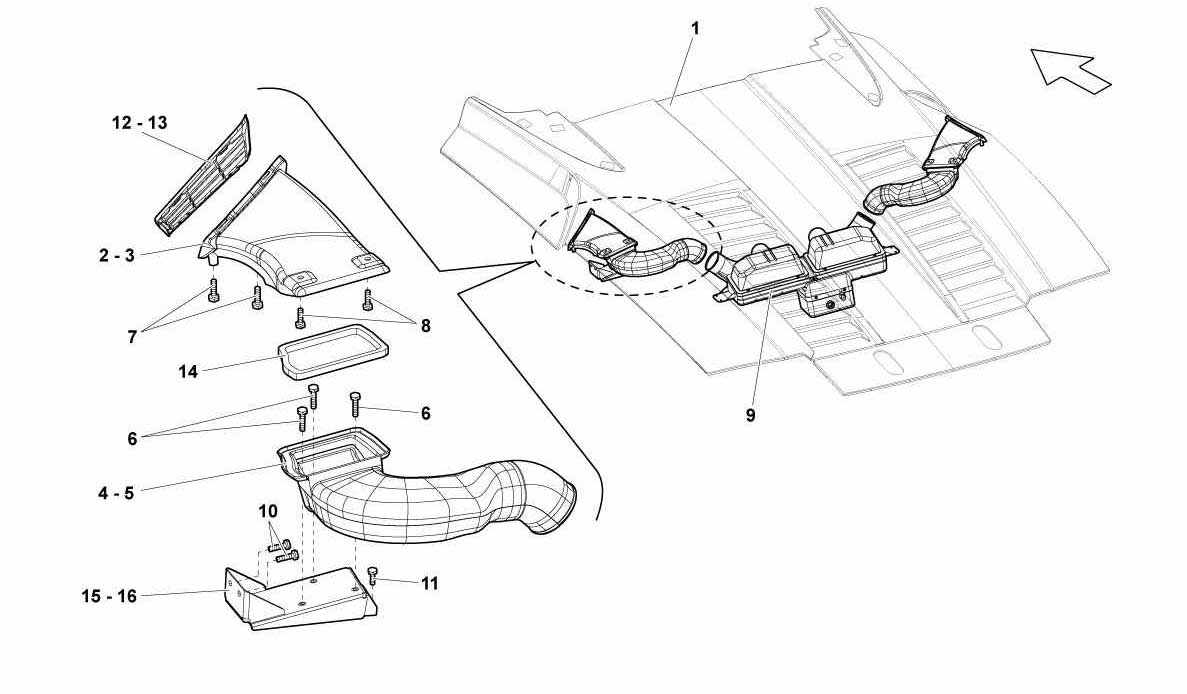

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: *Qty: 1 REAR HOOD (SEE TABLE 827.04.00) Call
Location: 2 Prev | Next Part: 407827961B *Qty: 1 LH CONVEYOR $212.98
Location: 3 Prev | Next Part: 407827962B *Qty: 1 RH CONVEYOR $212.98
Location: 4 Prev | Next Part: 407827963B *Qty: 1 LH CONVEYOR $273.70
Location: 5 Prev | Next Part: 407827964B *Qty: 1 RH CONVEYOR $719.51
Location: 6 Prev | Next Part: 1Z0860505C *Qty: 6 SCREW M6X12 $0.90
Location: 7 Prev | Next Part: N10621601 *Qty: 4 SCREW M4X12 $0.90
Location: 8 Prev | Next Part: N90737103 *Qty: 4 SCREW M6X12 $0.90
Location: 9 Prev | Next Part: *Qty: 0 AIR FILTER BOX (SEE TABLE 133.01.00) Call
Location: 10 Prev | Next Part: N90900401 *Qty: 4 SCREW M6X20 $0.90
Location: 11 Prev | Next Part: N90900401 *Qty: 2 SCREW M6X20 $0.90
Location: 12 Prev | Next Part: 407827967 *Qty: 1 LEFT GRID $229.68
Location: 13 Prev | Next Part: 407827968 *Qty: 1 RIGHT GRID $229.68
Location: 14 Prev | Next Part: 407827709 *Qty: 1 RH GASKET $69.46
Location: 14 Prev | Next Part: 407827705 *Qty: 1 LH GASKET $69.46
Location: 15 Prev | Next Part: 407827199 *Qty: 1 LH BRACKET $42.70
Location: 16 Prev | Next Part: 407827200 *Qty: 1 RH BRACKET $42.70

* Quantity shown indicates the number of pieces used in the diagram.
