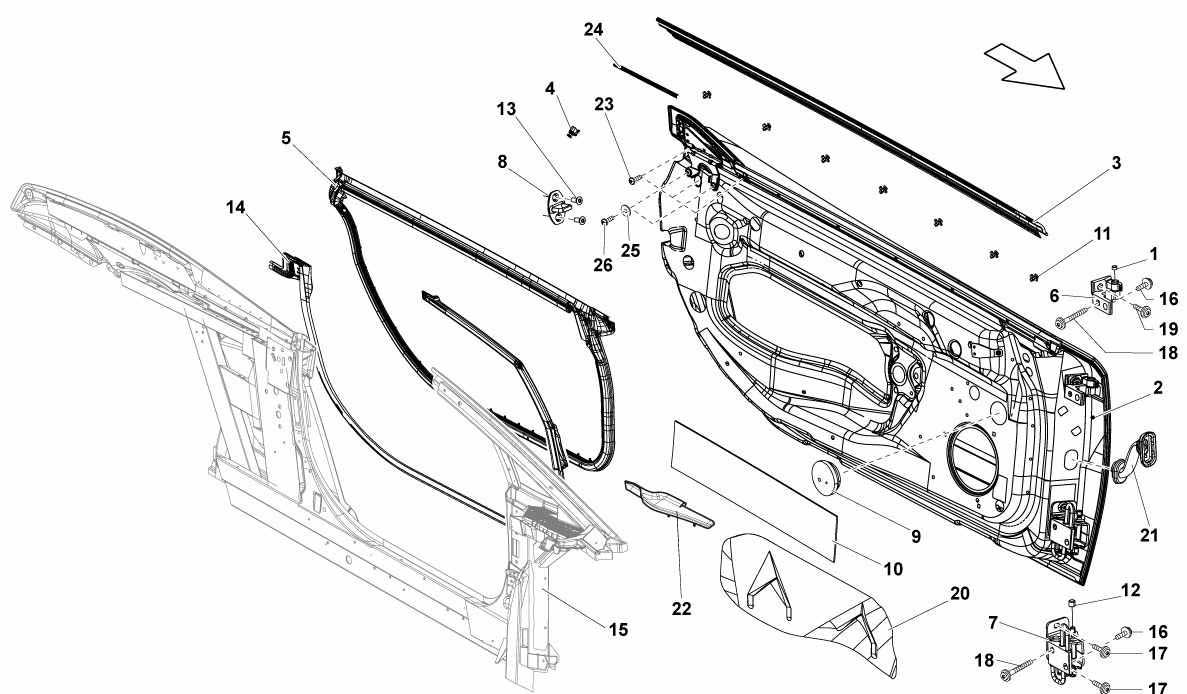

DOORS

Go to Split View

DOORS

Location Part # Quantity* Description Price Add To Cart
1 1H0837947 2 SCREW COVER Unavailable
2 407831021 1 DOOR- LH Unavailable
2 407831022 1 DOOR- RH Unavailable
3 407837478 1 GLASS WEATHERSTRIP- RH Unavailable
3 407837477 1 GLASS WEATHERSTRIP- LH Unavailable
4 400837498 1 COUPLING RING- RH Unavailable
4 400837497 1 COUPLING RING- LH Unavailable
5 407837912 1 DOOR WEATHERSTRIP- OUTER RH Unavailable
5 407837911 1 DOOR WEATHERSTRIP- OUTER LH Unavailable
6 4E0831402 1 HINGE- UPPER RH Unavailable
6 4E0831401 1 HINGE- UPPER LH Unavailable
7 4E0831412 1 HINGE- LOWER RH Unavailable
7 4E0831411 1 HINGE- LOWER LH Unavailable
8 8E0837033 2 CLOSING BRACKET Unavailable
9 8E0971841E 2 BUSHING Unavailable
10 8L0837805 4 INSULATING COVERING Unavailable
11 8L3837199B 16 WINDOW COVERING FASTENER Unavailable
12 8L3837947 2 SCREW COVER Unavailable
13 N0902941 6 SCREW Unavailable
14 407831708A 1 RH DOOR WEATHERSTRIP- INNER (UP TO VIN 7LA04648 USE 407831707A) Unavailable
14 407831707A 1 LH DOOR WEATHERSTRIP- INNER (UP TO VIN 7LA04648 USE 407831708A) Unavailable
15 0 LEFT SIDE COVER ASSEMBLY (SEE TABLE 701.12.00) Unavailable
16 8Z0837453 4 SCREW M8X40 Unavailable
17 8L0837453 4 SCREW M8X27 Unavailable
18 N91060501 4 SCREW M8X130X80 Unavailable
19 8H0831701 2 SCREW M10X34 Unavailable
20 400863979 1 LH INSULATION Unavailable
20 400863980 1 RH INSULATION Unavailable
21 8P3959845A 2 SHEATH Unavailable
22 400863051 1 LH COVER Unavailable
22 400863052 1 RH COVER Unavailable
23 407837173A 6 SCREW Unavailable
24 407868382 2 GASKET Unavailable
25 N90107607 4 WASHER Unavailable
26 N90900401 4 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
