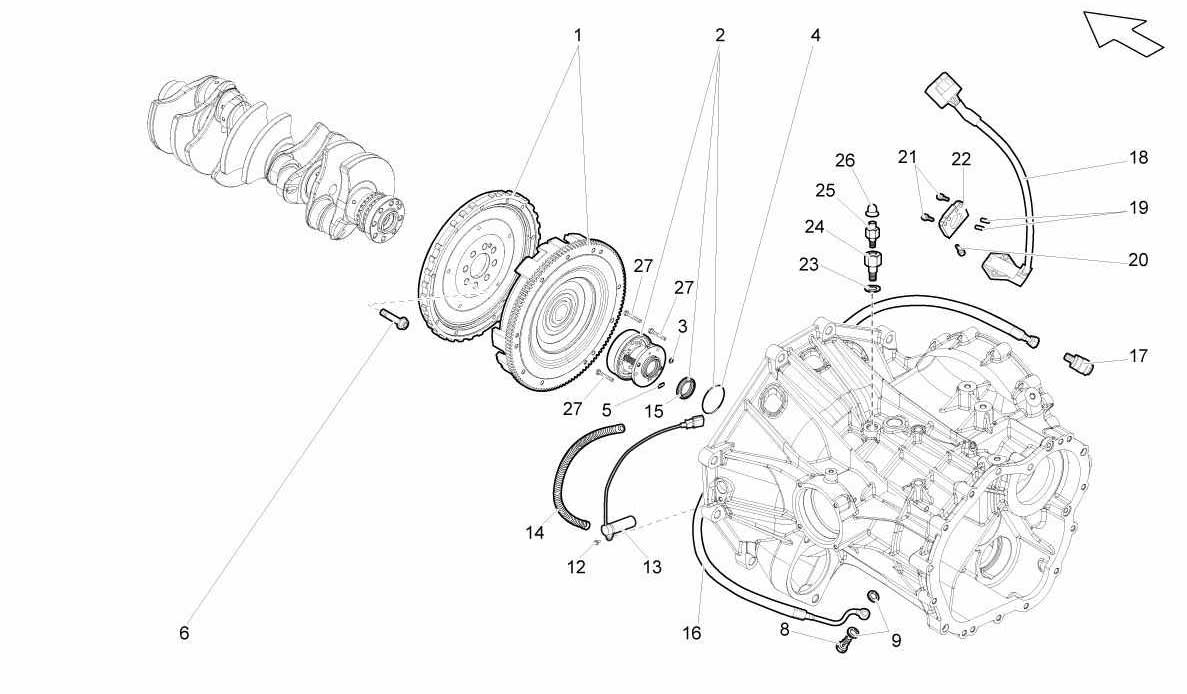

CLUTCH (E-GEAR)

Go to Split View

CLUTCH (E-GEAR)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L105269F *Qty: 1 CLUTCH FLYWHEEL (AUTOMATIC GEARBOX) $3,159.52
Location: 2 Prev | Next Part: 86141671D *Qty: 1 THRUST BEARING (E-GEAR) $574.15
Location: 3 Prev | Next Part: N90039602 *Qty: 1 O-RING (E-GEAR) $0.90
Location: 4 Prev | Next Part: N91020601 *Qty: 1 O-RING $4.98
Location: 5 Prev | Next Part: N90111302 *Qty: 1 O-RING (E-GEAR) $1.07
Location: 6 Prev | Next Part: WHT000938 *Qty: 8 SCREW $6.05
Location: 8 Prev | Next Part: N0210717 *Qty: 1 SCREW $5.89
Location: 9 Prev | Next Part: N0138131 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: N10295401 *Qty: 1 SCREW $0.90
Location: 13 Prev | Next Part: 79905381 *Qty: 1 TRANSDUCER $65.93
Location: 14 Prev | Next Part: 400971788 *Qty: 1 PIPE $0.90
Location: 15 Prev | Next Part: 86141243A *Qty: 1 OIL SEAL $20.50
Location: 16 Prev | Next Part: 7L115673A *Qty: 1 PIPE $1,157.05
Location: 17 Prev | Next Part: *Qty: 0 CONNECTOR (SEE TABLE 325.02.00 - SEE REF. 21) Call
Location: 18 Prev | Next Part: 86141297 *Qty: 1 SENSOR $260.04
Location: 19 Prev | Next Part: N10421101 *Qty: 2 JOURNAL $0.90
Location: 20 Prev | Next Part: N10404501 *Qty: 2 SCREW $1.09
Location: 21 Prev | Next Part: N10295401 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 86141305 *Qty: 1 SUPPORT $44.75
Location: 23 Prev | Next Part: N91014801 *Qty: 1 O-RING $1.05
Location: 24 Prev | Next Part: 86301065 *Qty: 1 CONNECTOR $49.41
Location: 25 Prev | Next Part: 86301127 *Qty: 1 PLUG $1.72
Location: 26 Prev | Next Part: 86301147 *Qty: 1 BOOT $0.90
Location: 26 Prev | Next Part: 86301147 *Qty: 1 BOOT $0.90
Location: 27 Prev | Next Part: N10124306 *Qty: 3 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
