ASSEMBLY

Go to Split View

ASSEMBLY

in cart
Go to Split View

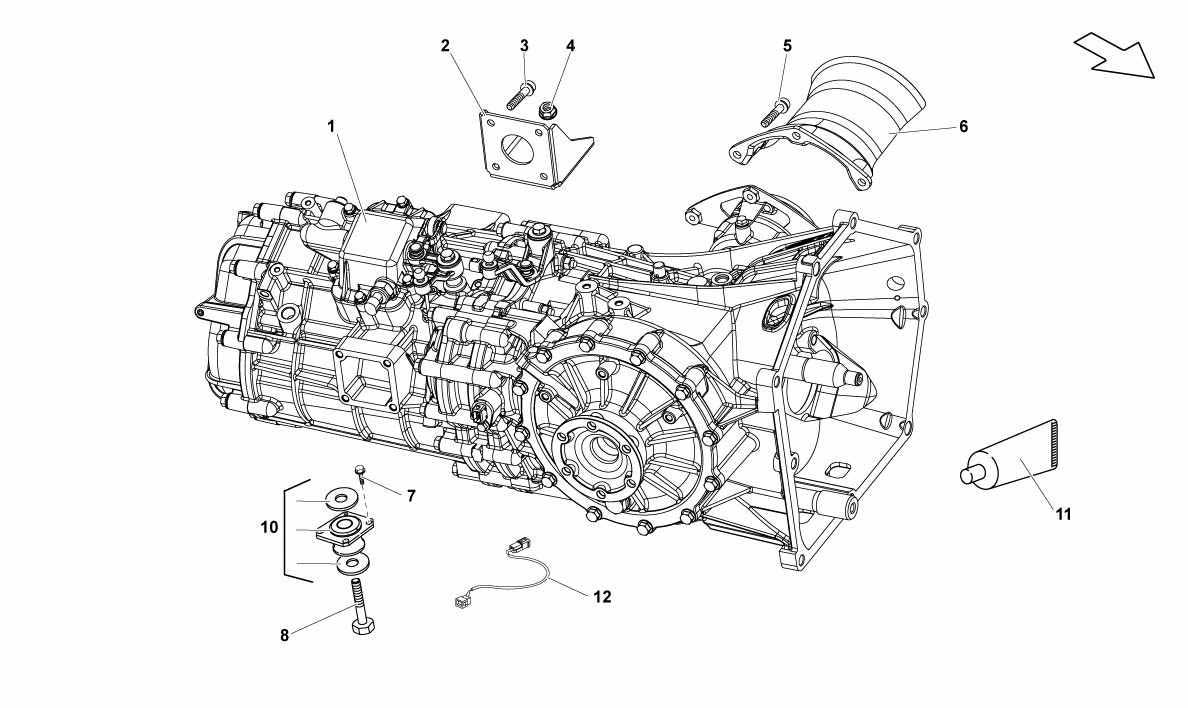

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86300045H *Qty: 1 MANUAL GEARBOX $30,932.28
Location: 1 Prev | Next Part: 86300045J *Qty: 1 E-GEAR GEARBOX $28,722.87
Location: 2 Prev | Next Part: 400399113 *Qty: 2 SUPPORT $25.30
Location: 3 Prev | Next Part: N90415403 *Qty: 8 SCREW $0.90
Location: 4 Prev | Next Part: N0411817 *Qty: 2 NUT $3.37
Location: 5 Prev | Next Part: N90216903 *Qty: 6 SCREW $1.99
Location: 6 Prev | Next Part: 8E0501713 *Qty: 2 PANEL $40.01
Location: 7 Prev | Next Part: N90630501 *Qty: 8 SCREW $1.99
Location: 8 Prev | Next Part: N90625101 *Qty: 2 SCREW $9.49
Location: 10 Prev | Next Part: 400399151 *Qty: 2 FLEXIBLE SUPPORT $155.26
Location: 11 Prev | Next Part: 900000130 *Qty: 1 GREASE $40.66

* Quantity shown indicates the number of pieces used in the diagram.
