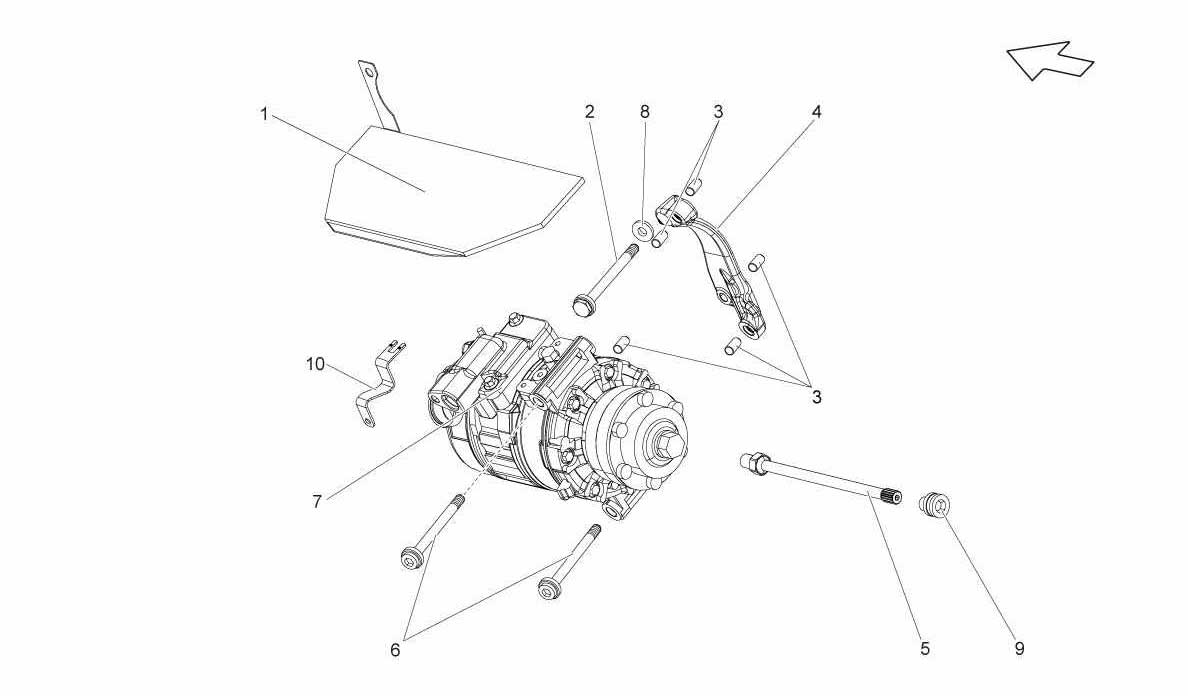

AIR CONDITIONING SYSTEM
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | 7L145787 | 1 | HEAT SHIELD | Unavailable | |
| 2 | N10585001 | 1 | SCREW M8X110 | Unavailable | |
| 3 | 78260817 | 4 | BUSHING | Unavailable | |
| 4 | 7L260885C | 1 | SUPPORT | Unavailable | |
| 5 | 7L260095B | 1 | PROPELLER SHAFT | Unavailable | |
| 6 | N10458901 | 2 | SCREW M8X90 | Unavailable | |
| 7 | 400260805A | 1 | COMPRESSOR | Unavailable | |
| 8 | N01152520 | 1 | WASHER | Unavailable | |
| 9 | 79260753B | 1 | FAIRLEAD | Unavailable | |
| 10 | 400145145 | 1 | SUPPORT | Unavailable |
* Quantity shown indicates the number of pieces used in the diagram.
