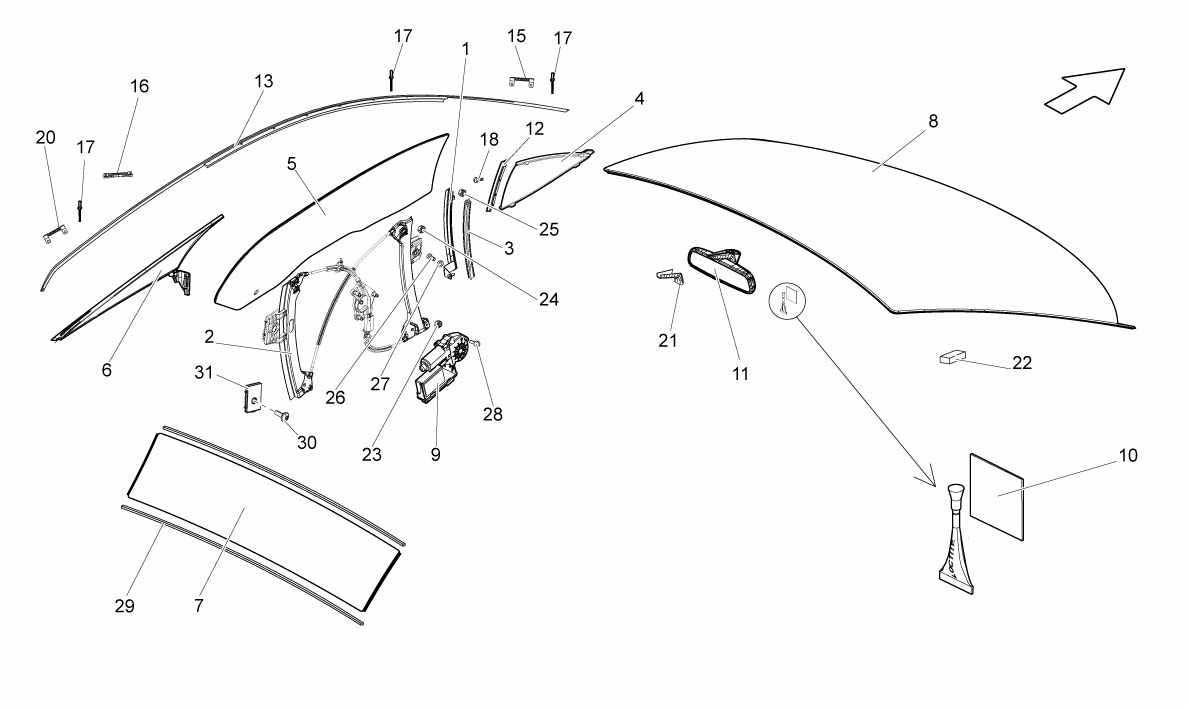

WINDOWS

Go to Split View

WINDOWS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400831619B *Qty: 2 GUIDE $400.79
Location: 1 Prev | Next Part: 400831620B *Qty: 2 GUIDE $400.79
Location: 2 Prev | Next Part: 400837461 *Qty: 1 LH POWER WINDOW ASSEMBLY $658.55
Location: 2 Prev | Next Part: 400837462 *Qty: 1 RIGHT DOOR POWER WINDOW ASSEMBLY $658.55
Location: 3 Prev | Next Part: 400837933 *Qty: 1 GASKET $28.12
Location: 3 Prev | Next Part: 400837934 *Qty: 1 GASKET $28.12
Location: 4 Prev | Next Part: 400845115A *Qty: 1 FIXED FRONT LEFT WINDOW GLASS $638.75
Location: 4 Prev | Next Part: 400845116A *Qty: 1 FIXED FRONT RIGHT WINDOW GLASS $638.75
Location: 5 Prev | Next Part: 400845201A *Qty: 1 LEFT DOOR WINDOW $1,213.15
Location: 5 Prev | Next Part: 400845202A *Qty: 1 RIGHT DOOR WINDOW $1,213.15
Location: 6 Prev | Next Part: 408845299A *Qty: 1 LH REAR WINDOW $505.94
Location: 6 Prev | Next Part: 408845300A *Qty: 1 RH REAR WINDOW $505.94
Location: 7 Prev | Next Part: 408845501A *Qty: 1 REAR WINDOW $1,083.59
Location: 8 Prev | Next Part: 400845099C *Qty: 1 WINDSCREEN $4,468.10
Location: 9 Prev | Next Part: 401959801D *Qty: 1 MOTOR (FOR LHD CARS) $664.30
Location: 9 Prev | Next Part: 401959802D *Qty: 1 MOTOR (FOR LHD CARS) Call
Location: 10 Prev | Next Part: *Qty: 0 PLATE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 11 Prev | Next Part: 8D0857511A *Qty: 1 REAR VIEW MIRROR Call
Location: 12 Prev | Next Part: 400837439 *Qty: 1 LH GUIDE $184.28
Location: 12 Prev | Next Part: 400837440 *Qty: 1 RH GUIDE $184.28
Location: 13 Prev | Next Part: 408853703B *Qty: 1 LH GUIDE $420.37
Location: 13 Prev | Next Part: 408853704B *Qty: 1 RH GUIDE $420.37
Location: 15 Prev | Next Part: 400853929A *Qty: 2 CLIP $38.17
Location: 16 Prev | Next Part: 8N8853707 *Qty: 6 CLIP $6.58
Location: 17 Prev | Next Part: N91019701 *Qty: 24 RIVET $0.90
Location: 18 Prev | Next Part: N90986803 *Qty: 8 SCREW ST4.2X13 $0.90
Location: 20 Prev | Next Part: 400853930A *Qty: 2 CLIP $38.17
Location: 21 Prev | Next Part: *Qty: 0 ORNAMENT (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 22 Prev | Next Part: 400845235 *Qty: 14 SPACER $0.90
Location: 23 Prev | Next Part: N90488004 *Qty: 6 NUT M6 $0.90
Location: 24 Prev | Next Part: WHT000127 *Qty: 2 NUT M8 $12.47
Location: 25 Prev | Next Part: WHT003112 *Qty: 2 NUT M5 $0.90
Location: 26 Prev | Next Part: N90944603 *Qty: 2 SCREW M5X12 $0.90
Location: 27 Prev | Next Part: WHT000778 *Qty: 2 WASHER $0.90
Location: 28 Prev | Next Part: 8Z0837691C *Qty: 6 SCREW $1.11
Location: 29 Prev | Next Part: *Qty: 2 RUBBER SHIM (VALID FOR A DIFFERENT MODEL) Call
Location: 30 Prev | Next Part: WHT001418 *Qty: 2 SCREW M8X20 $1.15
Location: 31 Prev | Next Part: 8H0845233 *Qty: 2 BRACKET $4.13

* Quantity shown indicates the number of pieces used in the diagram.
