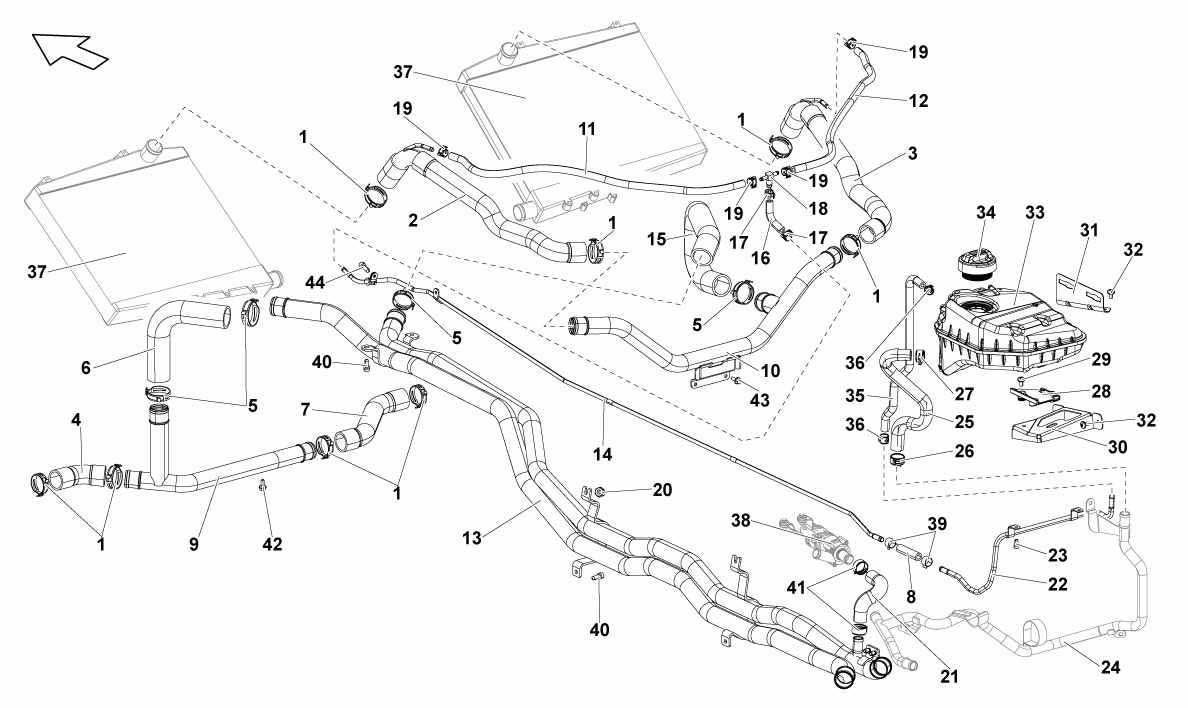

WATER COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 N90687201 8 CLAMP Unavailable
2 400121057A 1 FEED PIPE Unavailable
3 400121063A 1 FEED PIPE Unavailable
4 400121059A 1 RETURN HOSE Unavailable
5 N90926501 4 CLAMP Unavailable
6 400121053A 1 PIPE Unavailable
7 400121073A 1 RETURN HOSE Unavailable
8 7L121109D 1 SLEEVE Unavailable
9 400121508 1 RETURN HOSE Unavailable
10 400121510 1 FEED PIPE Unavailable
11 7L121102B 1 VENT PIPE Unavailable
12 7L121101A 1 VENT PIPE Unavailable
13 400121050A 1 PIPE Unavailable
14 400121465 1 VENT PIPE Unavailable
15 400121058A 1 FEED PIPE Unavailable
16 7L121337 1 VENT PIPE Unavailable
17 N90986501 2 CLAMP Unavailable
18 410133381B 1 CONNECTOR Unavailable
19 N90986501 4 CLAMP Unavailable
20 N01508315 2 NUT M8 Unavailable
21 400121123 1 PIPE Unavailable
22 420121486 1 PIPE Unavailable
23 N91096701 2 SCREW M6X16 Unavailable
24 0 PIPE (SEE TABLE 121.06.00 - SEE REF. 32) Unavailable
25 420121109A 1 PIPE Unavailable
26 N90686902 1 CLAMP Unavailable
27 N90686901 1 CLAMP Unavailable
28 7L0121093A 1 BRACKET Unavailable
29 N10124308 2 SCREW M6X20 Unavailable
30 420121261B 1 BRACKET Unavailable
31 420121262B 1 BRACKET Unavailable
32 N10653201 4 SCREW M6X16 Unavailable
33 420121403 1 WATER TANK Unavailable
34 1J0121321B 1 PLUG Unavailable
35 420121107A 1 PIPE Unavailable
36 N90770201 2 CLAMP Unavailable
37 0 WATER RADIATOR (SEE TABLE 121.08.00 - SEE REF. 21) Unavailable
38 0 WATER PUMP (SEE TABLE 260.04.00 - SEE REF. 24) Unavailable
39 N90770201 2 CLAMP Unavailable
40 N10648001 4 SCREW M8X25 Unavailable
41 N90687001 2 CLAMP Unavailable
42 2 SCREW Unavailable
43 N90847903 2 SCREW M6X15 Unavailable
44 2 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
