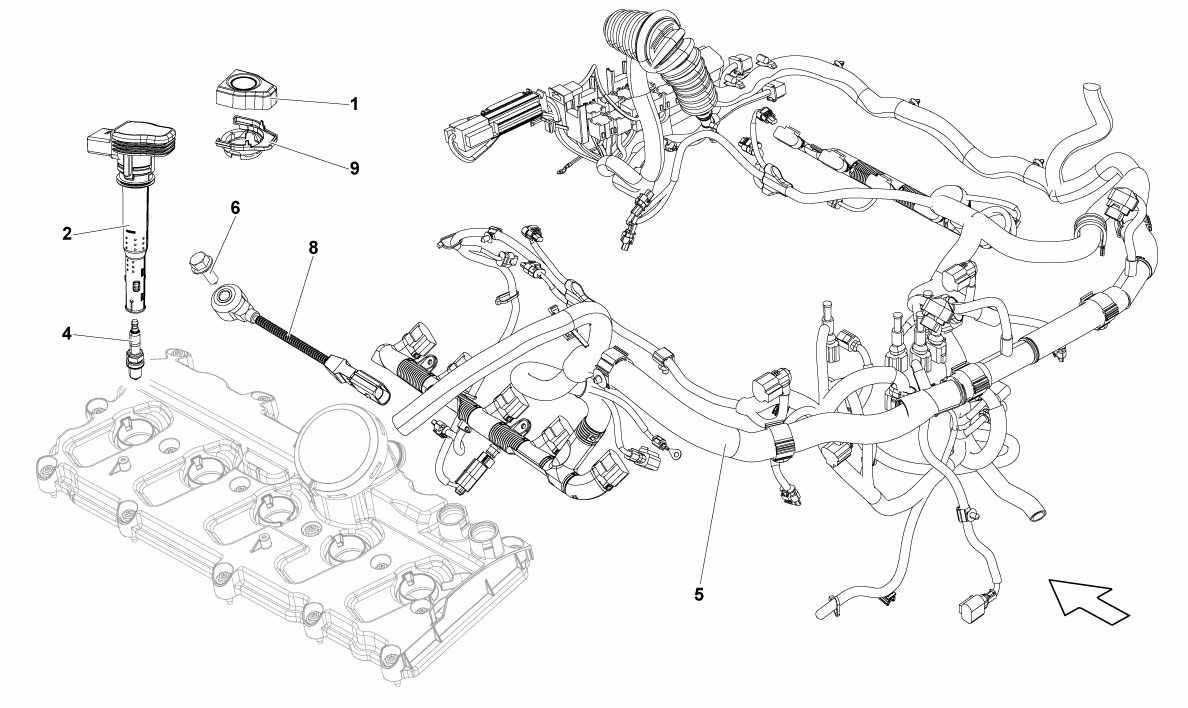

SYSTEM IGNITION

Go to Split View

SYSTEM IGNITION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L905142 *Qty: 0 PROTECTION $3.10
Location: 2 Prev | Next Part: 7K905715D *Qty: 10 COIL $62.85
Location: 4 Prev | Next Part: 101905631G *Qty: 10 SPARK PLUG $28.61
Location: 5 Prev | Next Part: 400971713A *Qty: 1 IGNITION WIRING (MANUAL GEARBOX) $2,839.63
Location: 5 Prev | Next Part: 400971713C *Qty: 1 IGNITION WIRING (E-GEAR) $3,083.78
Location: 6 Prev | Next Part: N01024425 *Qty: 4 SCREW M8X30 $1.99
Location: 8 Prev | Next Part: 6E905376A *Qty: 1 SENSOR (L1=465MM) $73.32
Location: 8 Prev | Next Part: 6E905376B *Qty: 1 SENSOR (L1=480MM) $59.82
Location: 8 Prev | Next Part: 7L905376 *Qty: 1 SENSOR (L1=565MM) $52.01
Location: 8 Prev | Next Part: 7L905376A *Qty: 1 SENSOR (L1=590MM) $52.01
Location: 9 Prev | Next Part: 7L905116B *Qty: 0 PROTECTION $5.19

* Quantity shown indicates the number of pieces used in the diagram.
