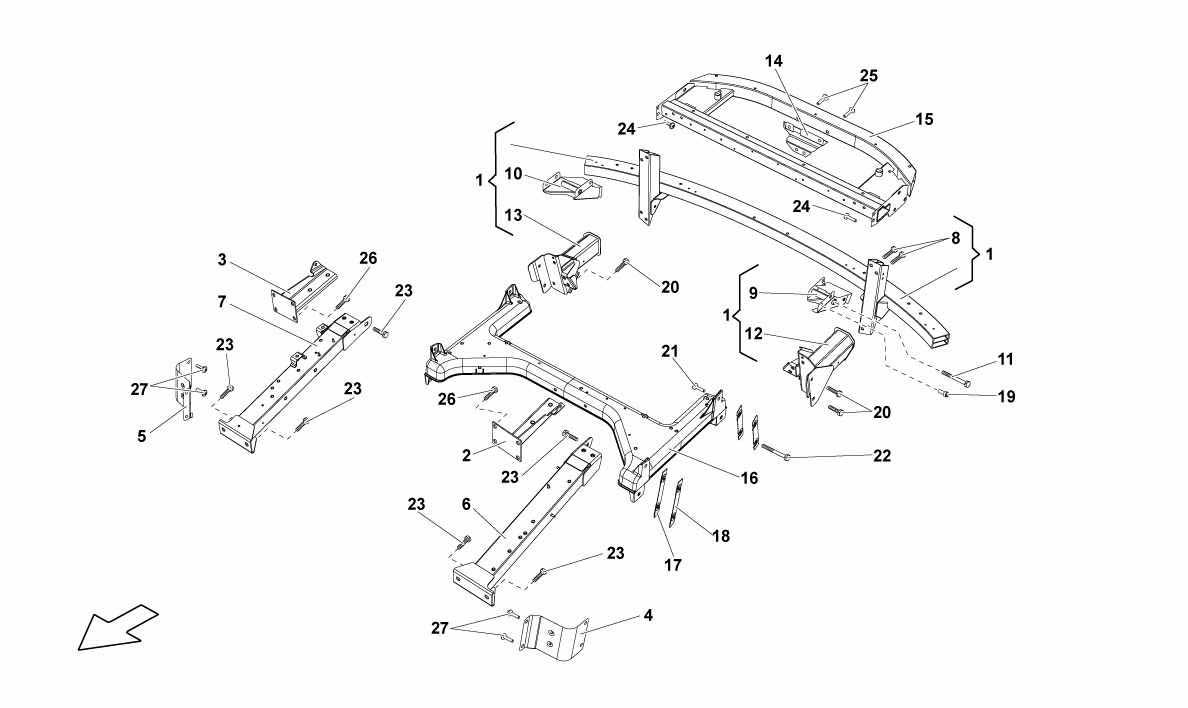

REAR FRAME ATTACHMENTS

Go to Split View

REAR FRAME ATTACHMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400807303A *Qty: 1 REAR BUMPER $3,416.98
Location: 2 Prev | Next Part: 400809125 *Qty: 1 BRACKET $773.18
Location: 3 Prev | Next Part: 400809126 *Qty: 1 BRACKET $773.18
Location: 4 Prev | Next Part: 400810427 *Qty: 1 SUPPORT $302.87
Location: 5 Prev | Next Part: 400810428 *Qty: 1 SUPPORT $201.48
Location: 6 Prev | Next Part: 408813703A *Qty: 1 SUPPORT $1,983.15
Location: 7 Prev | Next Part: 408813704A *Qty: 1 SUPPORT $2,055.84
Location: 8 Prev | Next Part: N90365912 *Qty: 8 SCREW M8X22 $0.90
Location: 9 Prev | Next Part: 400813721 *Qty: 1 SUPPORT $505.48
Location: 10 Prev | Next Part: 400813722 *Qty: 1 SUPPORT $505.48
Location: 11 Prev | Next Part: N0103917 *Qty: 2 SCREW M8X100X41 $4.30
Location: 12 Prev | Next Part: 400807553 *Qty: 1 STRUT,BUMPER $959.81
Location: 13 Prev | Next Part: 400807554 *Qty: 1 STRUT,BUMPER $959.81
Location: 14 Prev | Next Part: 400813787 *Qty: 1 REINFORCEMENT $66.42
Location: 15 Prev | Next Part: 400814291A *Qty: 1 CROSS MEMBER $3,737.89
Location: 16 Prev | Next Part: 420814285B *Qty: 1 CROSS MEMBER $501.61
Location: 17 Prev | Next Part: 420813176 *Qty: 4 INSERT 0,5 MM $14.63
Location: 18 Prev | Next Part: 420813176A *Qty: 4 INSERT 1 MM $14.63
Location: 19 Prev | Next Part: N90365912 *Qty: 6 SCREW M8X22 $0.90
Location: 20 Prev | Next Part: N91104901 *Qty: 12 SCREW M8X25 $1.04
Location: 21 Prev | Next Part: WHT002459 *Qty: 4 SCREW M8X40 $1.16
Location: 22 Prev | Next Part: N10709401 *Qty: 4 SCREW M8X120X80 $4.55
Location: 23 Prev | Next Part: N0195307 *Qty: 6 SCREW M8X25 $1.19
Location: 24 Prev | Next Part: 420807739 *Qty: 6 SCREW M6X21 $5.46
Location: 25 Prev | Next Part: N90365912 *Qty: 2 SCREW M8X22 $0.90
Location: 26 Prev | Next Part: N91000203 *Qty: 8 SCREW M8X25 $4.07
Location: 27 Prev | Next Part: N90949302 *Qty: 8 SCREW M6X15.5 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
