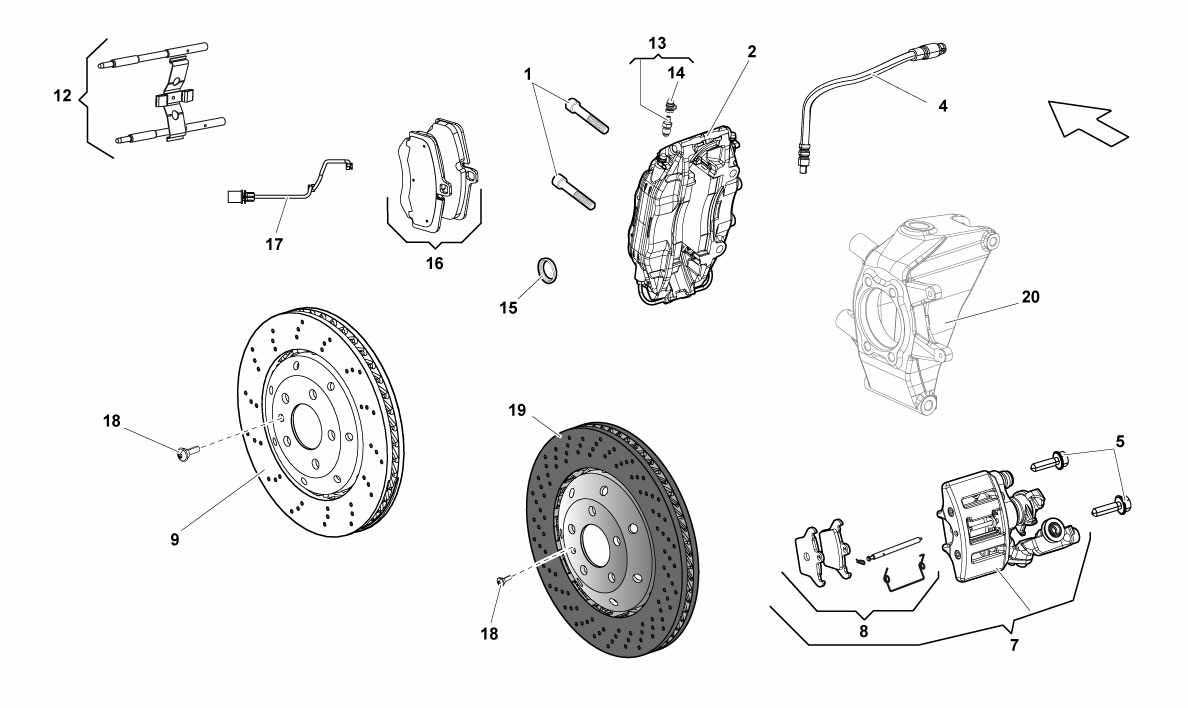

REAR BRAKES DISCS STD/CCB

Go to Split View

REAR BRAKES DISCS STD/CCB

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N91141801 *Qty: 2 SCREW $15.00
Location: 2 Prev | Next Part: 400615405S *Qty: 1 LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - GREY REAR CALIPERS) $1,436.15
Location: 2 Prev | Next Part: 400615405R *Qty: 1 LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - YELLOW FRONT CALIPERS) $1,436.15
Location: 2 Prev | Next Part: 400615405P *Qty: 1 LH REAR BRAKE CALIPER (GREY REAR CALIPERS) $3,446.75
Location: 2 Prev | Next Part: 400615405N *Qty: 1 LH REAR BRAKE CALIPER (YELLOW FRONT CALIPERS) $3,446.75
Location: 2 Prev | Next Part: 400615406M *Qty: 1 RH REAR BRAKE CALIPER (BLACK REAR CALIPERS) $1,220.73
Location: 2 Prev | Next Part: 400615406Q *Qty: 1 RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - BLACK REAR CALIPERS) $1,077.11
Location: 2 Prev | Next Part: 400615406S *Qty: 1 RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - GREY REAR CALIPERS) $1,436.15
Location: 2 Prev | Next Part: 400615406R *Qty: 1 RH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - YELLOW REAR CALIPERS) $1,436.15
Location: 2 Prev | Next Part: 400615406P *Qty: 1 RH REAR BRAKE CALIPER (GREY REAR CALIPERS) $3,446.75
Location: 2 Prev | Next Part: 400615406N *Qty: 1 RH REAR BRAKE CALIPER (YELLOW REAR CALIPERS) $3,446.75
Location: 2 Prev | Next Part: 400615405M *Qty: 1 LH REAR BRAKE CALIPER (BLACK REAR CALIPERS) $1,220.73
Location: 2 Prev | Next Part: 400615405Q *Qty: 1 LH REAR BRAKE CALIPER (CARBOCERAMIC BRAKE - BLACK REAR CALIPERS) $1,077.11
Location: 4 Prev | Next Part: 420611775A *Qty: 2 HOSE $44.97
Location: 5 Prev | Next Part: N91105601 *Qty: 2 SCREW $2.68
Location: 7 Prev | Next Part: 420615403A *Qty: 1 LH HAND BRAKE CALIPER (STD/CCB) $782.34
Location: 7 Prev | Next Part: 420615404A *Qty: 1 RH HAND BRAKE CALIPER (STD/CCB) $782.34
Location: 8 Prev | Next Part: 420698451D *Qty: 1 HAND BRAKE PAD SET (STD/CCB) $237.86
Location: 9 Prev | Next Part: 420615601C *Qty: 2 REAR BRAKE DISK $574.46
Location: 12 Prev | Next Part: 420698269 *Qty: 2 JOURNAL AND CLIP SET $59.28
Location: 13 Prev | Next Part: 8A0615273 *Qty: 2 BLEEDER/BOOT $8.65
Location: 14 Prev | Next Part: 7D0611483 *Qty: 2 BOOT $10.49
Location: 15 Prev | Next Part: 420698671 *Qty: 2 SEAL RING $37.56
Location: 16 Prev | Next Part: 420698451F *Qty: 1 REAR BRAKE PAD SET (CARBOCERAMIC BRAKE) $697.93
Location: 16 Prev | Next Part: 420698451B *Qty: 1 REAR BRAKE PAD SET $474.19
Location: 17 Prev | Next Part: 420615437 *Qty: 2 ELECTRIC CABLE $29.06
Location: 18 Prev | Next Part: N10648301 *Qty: 2 SCREW M6X10 $0.90
Location: 19 Prev | Next Part: 420615601 *Qty: 1 LH REAR BRAKE DISK (CARBOCERAMIC BRAKE) $5,663.46
Location: 19 Prev | Next Part: 420615602 *Qty: 1 RH REAR BRAKE DISK (CARBOCERAMIC BRAKE) $5,663.46
Location: 20 Prev | Next Part: *Qty: 1 FRONT HUB CARRIER (SEE TABLE 505.04.00) Call

* Quantity shown indicates the number of pieces used in the diagram.
