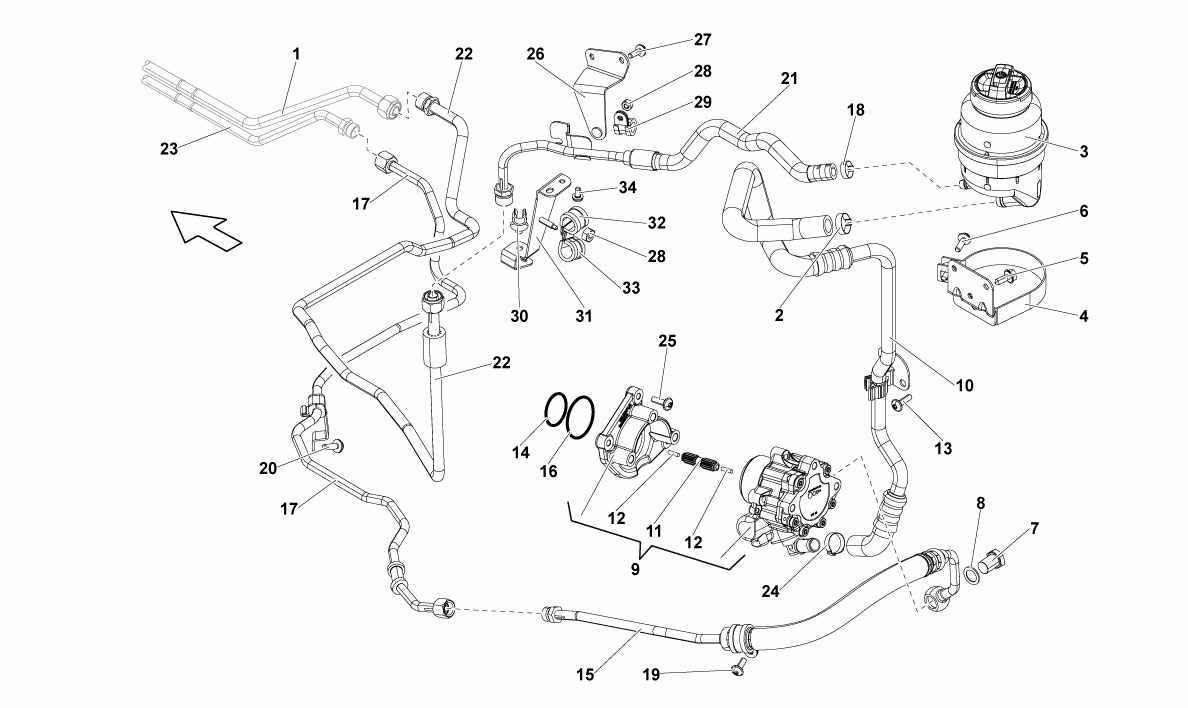

POWER STEERING

Go to Split View

POWER STEERING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: *Qty: 0 RETURN HOSE (SEE TABLE 422.10.00 - SEE REF. 5) Call
Location: 2 Prev | Next Part: N90686901 *Qty: 1 CLAMP $0.90
Location: 3 Prev | Next Part: 420422371A *Qty: 1 OIL TANK $127.90
Location: 4 Prev | Next Part: 420422493 *Qty: 1 SUPPORT $36.87
Location: 5 Prev | Next Part: N0901486 *Qty: 3 SCREW M6X15 $0.90
Location: 6 Prev | Next Part: N10535502 *Qty: 1 SCREW M6X30 $3.06
Location: 7 Prev | Next Part: WHT000507 *Qty: 1 CONNECTOR $6.28
Location: 8 Prev | Next Part: N0138487 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 420145157 *Qty: 1 PUMP $512.50
Location: 10 Prev | Next Part: 420422843G *Qty: 1 PIPE $87.80
Location: 11 Prev | Next Part: 57145225D *Qty: 1 SHAFT $36.29
Location: 12 Prev | Next Part: 79145115B *Qty: 2 PUFFER $3.73
Location: 13 Prev | Next Part: N10664901 *Qty: 1 SCREW M8X16 $0.90
Location: 14 Prev | Next Part: WHT002640 *Qty: 1 O-RING $4.06
Location: 15 Prev | Next Part: 420422893F *Qty: 1 HOSE $145.63
Location: 16 Prev | Next Part: N90647401 *Qty: 1 O-RING $4.06
Location: 17 Prev | Next Part: 420422897C *Qty: 1 FEED PIPE $131.39
Location: 18 Prev | Next Part: N90770201 *Qty: 1 CLAMP $2.60
Location: 19 Prev | Next Part: N10124304 *Qty: 1 SCREW M6X20 $0.90
Location: 20 Prev | Next Part: N10347103 *Qty: 1 SCREW M6X20 $0.90
Location: 21 Prev | Next Part: 420422857M *Qty: 1 RETURN HOSE $114.11
Location: 22 Prev | Next Part: 400422857C *Qty: 1 RETURN HOSE $103.76
Location: 23 Prev | Next Part: *Qty: 0 FEED PIPE (SEE TABLE 422.10.00 - SEE REF. 7) Call
Location: 24 Prev | Next Part: N10255601 *Qty: 1 CLAMP $1.35
Location: 25 Prev | Next Part: N10124306 *Qty: 3 SCREW M6X20 $0.90
Location: 26 Prev | Next Part: 423422163B *Qty: 1 SUPPORT $11.56
Location: 27 Prev | Next Part: N10335206 *Qty: 2 SCREW M6X12 $0.90
Location: 28 Prev | Next Part: N01508213 *Qty: 2 NUT M6 $0.90
Location: 29 Prev | Next Part: N0206015 *Qty: 1 CLAMP $1.35
Location: 30 Prev | Next Part: 281611767A *Qty: 2 CLAMP $0.90
Location: 31 Prev | Next Part: 420422163A *Qty: 1 SUPPORT $33.55
Location: 32 Prev | Next Part: N0206405 *Qty: 1 CLAMP $1.26
Location: 33 Prev | Next Part: N0206267 *Qty: 1 CLAMP $1.35
Location: 34 Prev | Next Part: N10335206 *Qty: 2 SCREW M6X12 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
