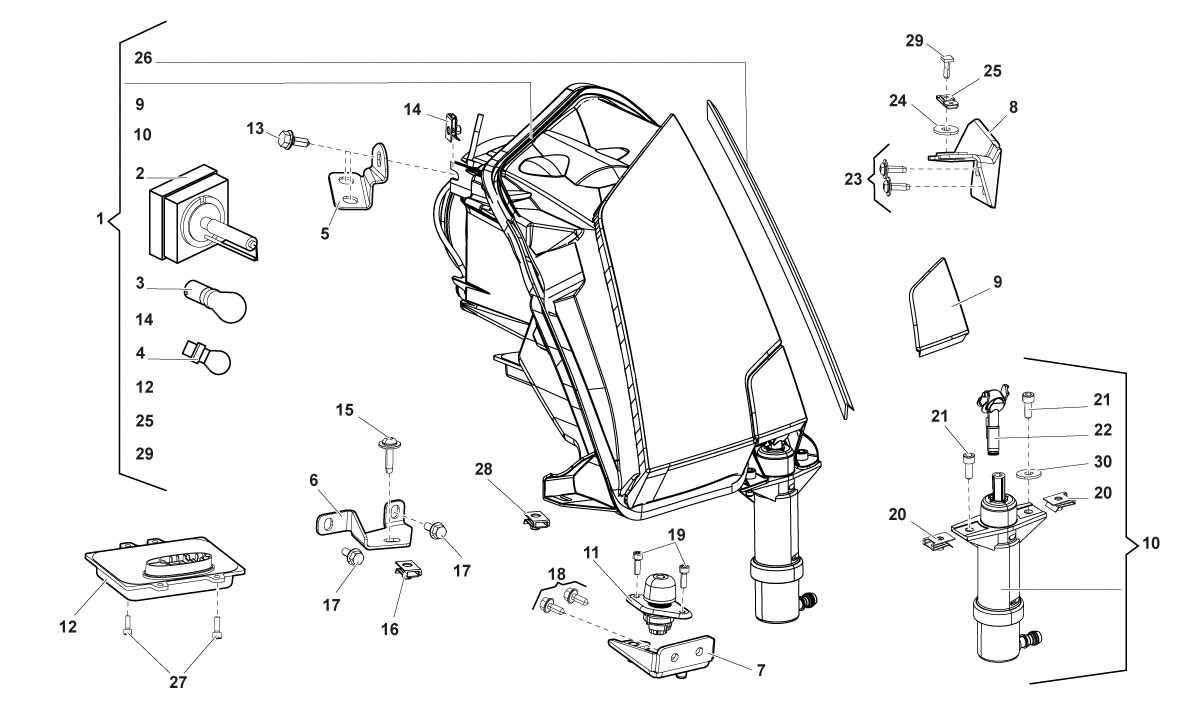

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 401941003H *Qty: 1 HEADLIGHT, LH $5,103.84
Location: 1 Prev | Next Part: 401941004H *Qty: 1 HEADLIGHT, RH $5,103.84
Location: 2 Prev | Next Part: N10566103 *Qty: 2 BULB DIS-12V35W $255.45
Location: 4 Prev | Next Part: 400941107 *Qty: 2 BULB $15.68
Location: 5 Prev | Next Part: 400941613A *Qty: 1 LH BRACKET $61.76
Location: 5 Prev | Next Part: 400941614A *Qty: 1 RH BRACKET $61.76
Location: 6 Prev | Next Part: 400941121B *Qty: 1 LH BRACKET $35.19
Location: 6 Prev | Next Part: 400941122B *Qty: 1 RH BRACKET $35.19
Location: 7 Prev | Next Part: 400941463 *Qty: 1 LH BRACKET $14.36
Location: 7 Prev | Next Part: 400941464 *Qty: 1 RH BRACKET $14.36
Location: 8 Prev | Next Part: 400941454A *Qty: 1 RH BRACKET $20.35
Location: 8 Prev | Next Part: 400941455A *Qty: 1 LH BRACKET $20.35
Location: 9 Prev | Next Part: 400955275B *Qty: 1 COVER $158.79
Location: 9 Prev | Next Part: 400955276B *Qty: 1 COVER $158.79
Location: 10 Prev | Next Part: 400955101 *Qty: 1 LH HEADLIGHT WASHER $105.15
Location: 10 Prev | Next Part: 400955102 *Qty: 1 RH HEADLIGHT WASHER $105.15
Location: 11 Prev | Next Part: 8L0827249 *Qty: 2 ADJUSTING BUFFER $6.66
Location: 12 Prev | Next Part: 400941651 *Qty: 2 CONTROL UNIT $556.34
Location: 13 Prev | Next Part: N10653201 *Qty: 6 SCREW M6X16 $0.90
Location: 14 Prev | Next Part: 400898256A *Qty: 2 CLIP $10.49
Location: 15 Prev | Next Part: N10607601 *Qty: 2 SCREW M6X25 $0.90
Location: 16 Prev | Next Part: N90327506 *Qty: 2 CLIP $0.90
Location: 17 Prev | Next Part: N10653201 *Qty: 4 SCREW M6X16 $0.90
Location: 18 Prev | Next Part: N10653201 *Qty: 4 SCREW M6X16 $0.90
Location: 19 Prev | Next Part: N10662102 *Qty: 4 SCREW M5X12 $8.52
Location: 20 Prev | Next Part: 400898256A *Qty: 2 CLIP $10.49
Location: 21 Prev | Next Part: 400898400 *Qty: 4 SCREW M6X16 $5.51
Location: 22 Prev | Next Part: 400955965 *Qty: 1 LH HEADLIGHT WASHER $58.07
Location: 22 Prev | Next Part: 400955966 *Qty: 1 RH HEADLIGHT WASHER $58.07
Location: 23 Prev | Next Part: N10607601 *Qty: 4 SCREW M6X25 $0.90
Location: 24 Prev | Next Part: N01152527 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 400898256 *Qty: 2 CLIP $15.07
Location: 26 Prev | Next Part: 400898539 *Qty: 2 LH GASKET $68.54
Location: 26 Prev | Next Part: 400898540 *Qty: 2 RH GASKET $68.54
Location: 27 Prev | Next Part: 400898400A *Qty: 4 SCREW M3X12 $12.46
Location: 28 Prev | Next Part: N90830901 *Qty: 2 CLIP $2.24
Location: 29 Prev | Next Part: 400898400B *Qty: 4 SCREW M6X21 $14.43
Location: 30 Prev | Next Part: *Qty: 2 WASHER (CANNOT BE SOLD SEPARATELY) Call

* Quantity shown indicates the number of pieces used in the diagram.
