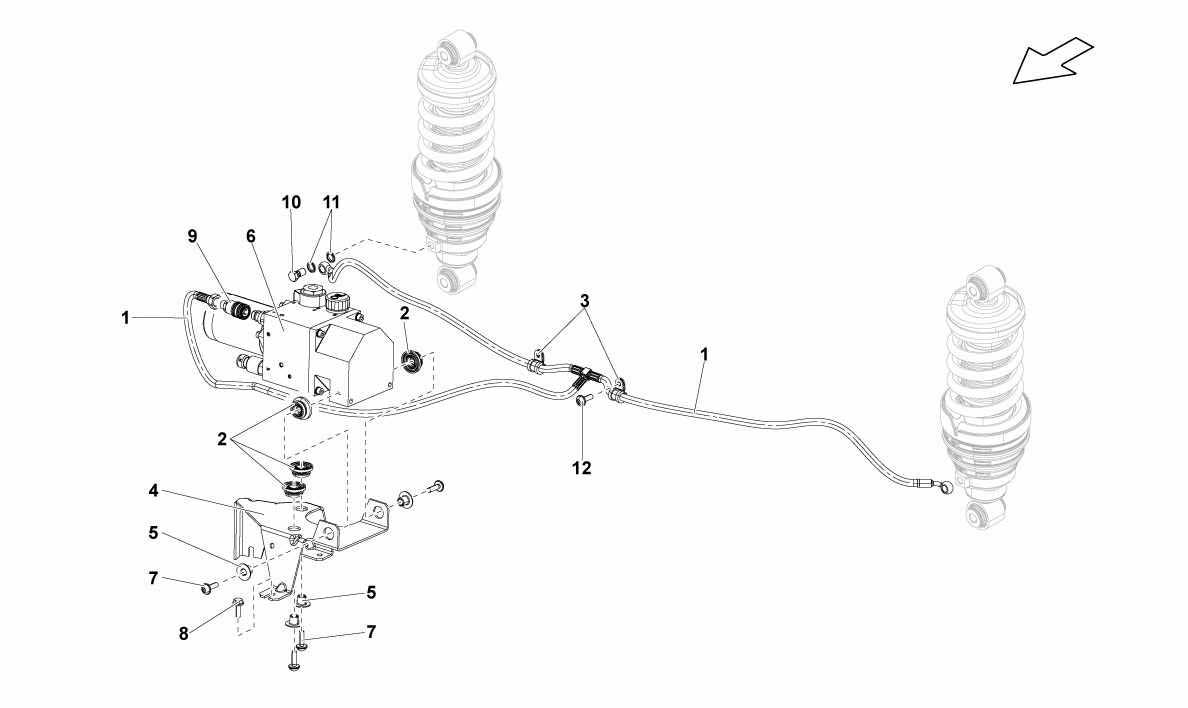

JACKING SYSTEM

Go to Split View

JACKING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 401616733A *Qty: 1 HOSE $317.44
Location: 2 Prev | Next Part: 8Z0129669A *Qty: 4 FAIRLEAD $4.52
Location: 3 Prev | Next Part: N0206517 *Qty: 2 CLAMP $1.35
Location: 4 Prev | Next Part: 401412161 *Qty: 1 SUPPORT $40.65
Location: 4 Prev | Next Part: 401412161A *Qty: 1 SUPPORT $165.98
Location: 5 Prev | Next Part: 8Z0129734 *Qty: 4 BUSHING $2.40
Location: 6 Prev | Next Part: 400412185D *Qty: 1 JACKING SYSTEM CONTROL UNIT $6,446.47
Location: 7 Prev | Next Part: N91032702 *Qty: 4 SCREW M6X20 $0.90
Location: 8 Prev | Next Part: N90533003 *Qty: 3 SCREW M6X20 $2.23
Location: 9 Prev | Next Part: 86325273A *Qty: 1 CONNECTION $242.43
Location: 10 Prev | Next Part: WHT003303 *Qty: 2 SCREW M10 $8.80
Location: 11 Prev | Next Part: 400616817A *Qty: 4 WASHER $1.98
Location: 12 Prev | Next Part: N10553804 *Qty: 2 SCREW M6X45 $1.20

* Quantity shown indicates the number of pieces used in the diagram.
