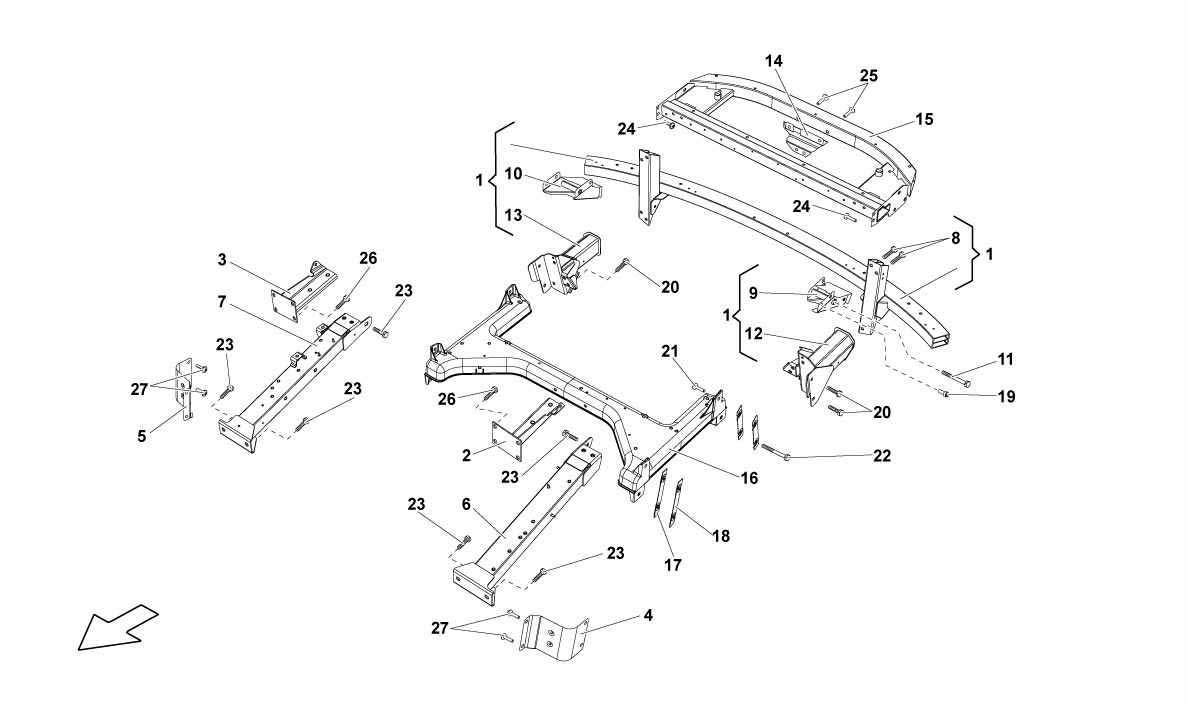

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400807303A *Qty: 1 REAR BUMPER $3,512.20
Location: 2 Prev | Next Part: 400809125 *Qty: 1 BRACKET $671.57
Location: 3 Prev | Next Part: 400809126 *Qty: 1 BRACKET $671.57
Location: 4 Prev | Next Part: 400810427 *Qty: 1 SUPPORT $263.08
Location: 5 Prev | Next Part: 400810428 *Qty: 1 SUPPORT $175.02
Location: 6 Prev | Next Part: 408813703A *Qty: 1 SUPPORT $1,722.48
Location: 7 Prev | Next Part: 408813704A *Qty: 1 SUPPORT $1,785.60
Location: 8 Prev | Next Part: N90365912 *Qty: 8 SCREW M8X22 $0.90
Location: 9 Prev | Next Part: 400813721 *Qty: 1 SUPPORT $439.05
Location: 10 Prev | Next Part: 400813722 *Qty: 1 SUPPORT $439.05
Location: 11 Prev | Next Part: N0103917 *Qty: 2 SCREW M8X100X41 $4.13
Location: 12 Prev | Next Part: 400807553 *Qty: 1 STRUT,BUMPER $833.66
Location: 13 Prev | Next Part: 400807554 *Qty: 1 STRUT,BUMPER $833.66
Location: 14 Prev | Next Part: 400813787 *Qty: 1 REINFORCEMENT $57.71
Location: 15 Prev | Next Part: 400814291A *Qty: 1 CROSS MEMBER $3,246.55
Location: 16 Prev | Next Part: 420814285B *Qty: 1 CROSS MEMBER $435.68
Location: 17 Prev | Next Part: 420813176 *Qty: 4 INSERT 0,5 MM $14.15
Location: 18 Prev | Next Part: 420813176A *Qty: 4 INSERT 1 MM $14.15
Location: 19 Prev | Next Part: N90365912 *Qty: 6 SCREW M8X22 $0.90
Location: 20 Prev | Next Part: N91104901 *Qty: 12 SCREW M8X25 $1.00
Location: 21 Prev | Next Part: WHT002459 *Qty: 4 SCREW M8X40 $1.11
Location: 22 Prev | Next Part: N10709401 *Qty: 4 SCREW M8X120X80 $4.36
Location: 23 Prev | Next Part: N0195307 *Qty: 6 SCREW M8X25 $1.16
Location: 24 Prev | Next Part: 420807739 *Qty: 6 SCREW M6X21 $5.36
Location: 25 Prev | Next Part: N90365912 *Qty: 2 SCREW M8X22 $0.90
Location: 26 Prev | Next Part: N91000203 *Qty: 8 SCREW M8X25 $3.55
Location: 27 Prev | Next Part: N90949302 *Qty: 8 SCREW M6X15.5 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
