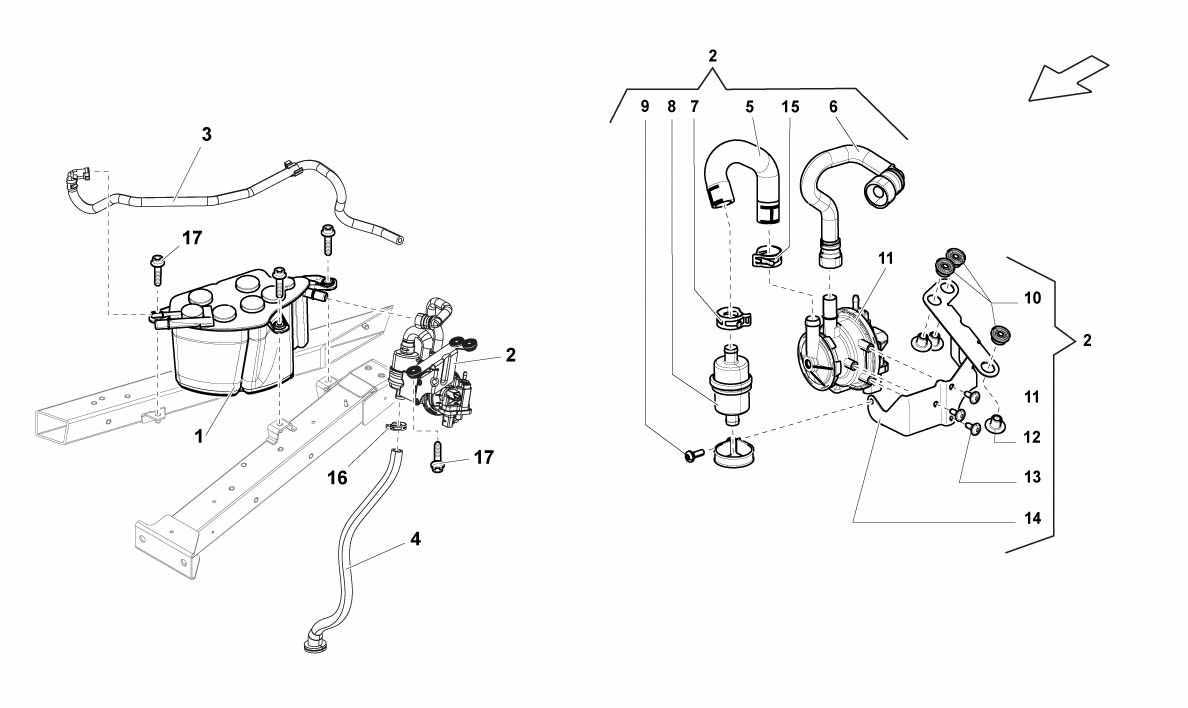

FUEL SYSTEM

Go to Split View

FUEL SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 3D0201801F *Qty: 1 VAPOR FILTER $354.88
Location: 2 Prev | Next Part: 420906201 *Qty: 1 COMPLETE PUMP $288.33
Location: 3 Prev | Next Part: 400133352A *Qty: 1 PIPE $71.44
Location: 4 Prev | Next Part: 400131491B *Qty: 1 PIPE $152.16
Location: 5 Prev | Next Part: 420906272B *Qty: 1 PIPE $9.64
Location: 6 Prev | Next Part: 420201153 *Qty: 1 PIPE $36.79
Location: 7 Prev | Next Part: 4B0422379A *Qty: 1 CLAMP $1.19
Location: 8 Prev | Next Part: 4D0906321C *Qty: 1 FILTER $30.82
Location: 9 Prev | Next Part: N10196103 *Qty: 6 SCREW $0.90
Location: 10 Prev | Next Part: 8Z0129669A *Qty: 3 FAIRLEAD $4.52
Location: 11 Prev | Next Part: 7H0906271A *Qty: 1 PUMP $124.65
Location: 12 Prev | Next Part: 8Z0129734 *Qty: 3 SPACER $2.40
Location: 13 Prev | Next Part: N90829802 *Qty: 3 SCREW $0.90
Location: 14 Prev | Next Part: 420201369 *Qty: 1 BRACKET $16.90
Location: 15 Prev | Next Part: N90686901 *Qty: 1 CLAMP $0.90
Location: 16 Prev | Next Part: 4B0422379A *Qty: 1 CLAMP $1.19
Location: 17 Prev | Next Part: N91054201 *Qty: 6 SCREW $1.09

* Quantity shown indicates the number of pieces used in the diagram.
