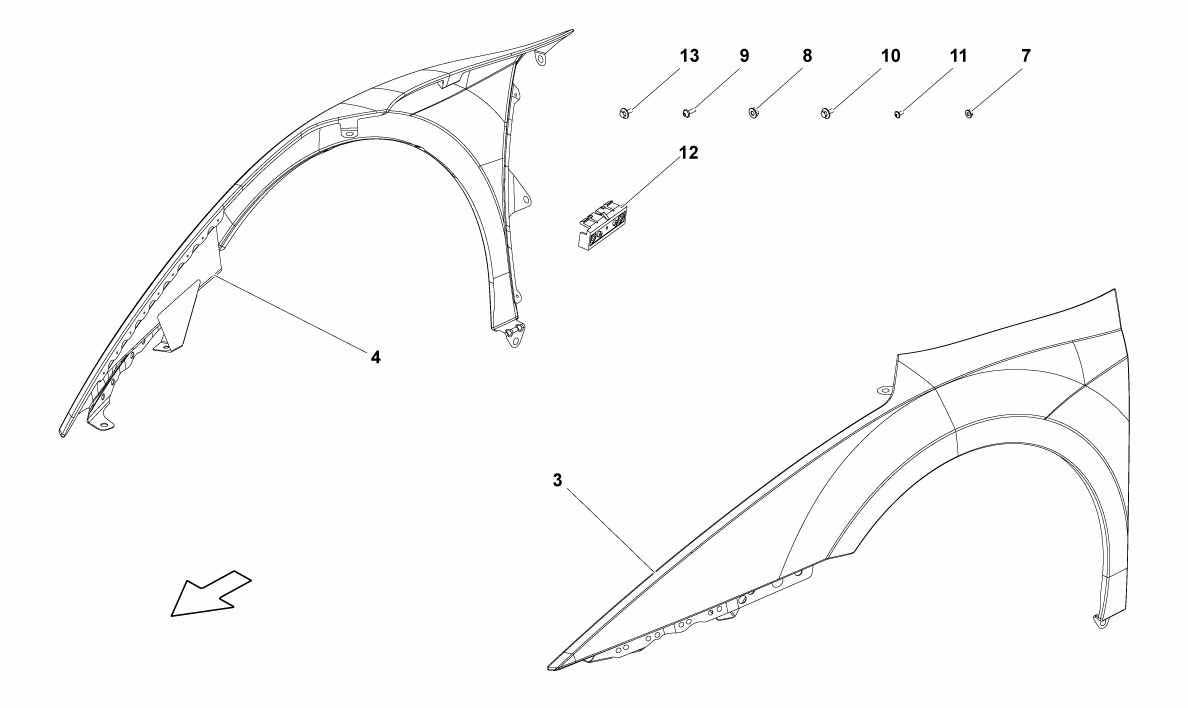

FRONT FENDER
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 3 | 400821021A | 1 | FENDER, FRONT LH | Unavailable | |
| 4 | 400821022A | 1 | FENDER, FRONT RH | Unavailable | |
| 7 | N01508213 | 2 | NUT M6 | Unavailable | |
| 8 | N10609202 | 2 | NUT M8 | Unavailable | |
| 9 | N10558102 | 2 | SCREW M6X18 | Unavailable | |
| 10 | N90847903 | 8 | SCREW M6X15 | Unavailable | |
| 11 | N90944603 | 2 | SCREW M5X12 | Unavailable | |
| 12 | 400807286 | 4 | BUMPER SIDE BRACKET | Unavailable | |
| 13 | N10009507 | 4 | SCREW M6X18 | Unavailable |
* Quantity shown indicates the number of pieces used in the diagram.
