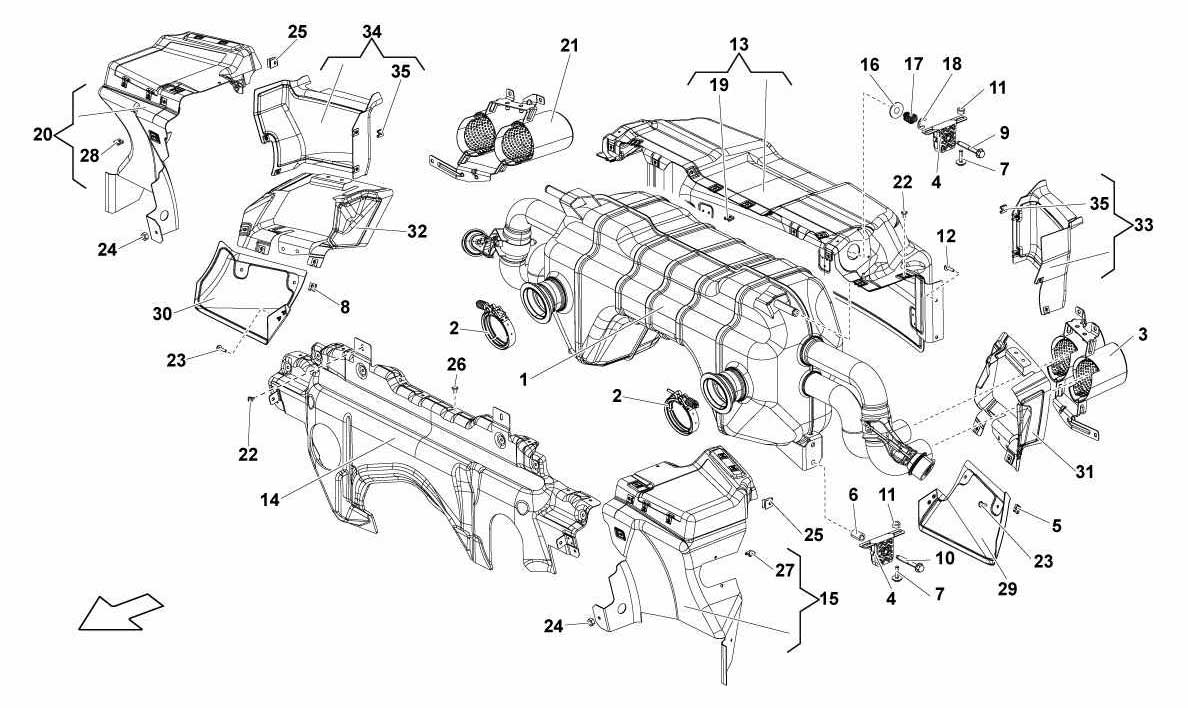

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 400251051 1 SILENCER ASSEMBLY Unavailable
1 400251051 1 SILENCER ASSEMBLY Unavailable
2 420251143 2 COLLAR Unavailable
2 420251143 2 COLLAR Unavailable
3 400253697C 1 LH TERMINAL Unavailable
3 400253697C 1 LH TERMINAL Unavailable
4 420251303 4 SUPPORT Unavailable
4 420251303 4 SUPPORT Unavailable
5 N10433701 2 CLIP Unavailable
5 N10433701 2 CLIP Unavailable
6 420251198A 2 SPACER Unavailable
6 420251198A 2 SPACER Unavailable
7 N10106904 8 SCREW M8X32 Unavailable
7 N10106904 8 SCREW M8X32 Unavailable
8 N10433701 2 CLIP Unavailable
8 N10433701 2 CLIP Unavailable
9 N10609902 2 SCREW M10X115X80 Unavailable
9 N10609902 2 SCREW M10X115X80 Unavailable
10 N10680201 2 SCREW M10X75 Unavailable
10 N10680201 2 SCREW M10X75 Unavailable
11 420251465 4 SPACER Unavailable
11 420251465 4 SPACER Unavailable
12 N90775001 4 SCREW ST4.8X16 Unavailable
12 N90775001 4 SCREW ST4.8X16 Unavailable
13 400825709 1 INSULATION Unavailable
13 400825709 1 INSULATION Unavailable
14 420825613B 1 INSULATION Unavailable
14 420825613B 1 INSULATION Unavailable
15 400825645 1 LH INSULATION Unavailable
15 400825645 1 LH INSULATION Unavailable
16 420825371 2 PROTECTION Unavailable
16 420825371 2 PROTECTION Unavailable
17 420825430 2 SPRING Unavailable
17 420825430 2 SPRING Unavailable
18 N0124501 2 SEAL RING Unavailable
18 N0124501 2 SEAL RING Unavailable
19 N10433701 18 CLIP Unavailable
19 N10433701 18 CLIP Unavailable
20 400825646 1 RH INSULATION Unavailable
20 400825646 1 RH INSULATION Unavailable
21 400253698C 1 RH TERMINAL Unavailable
21 400253698C 1 RH TERMINAL Unavailable
22 4E0831701 7 SCREW M6X13 Unavailable
22 4E0831701 7 SCREW M6X13 Unavailable
23 N90775001 6 SCREW ST4.8X16 Unavailable
23 N90775001 6 SCREW ST4.8X16 Unavailable
24 N90488004 2 NUT M6 Unavailable
24 N90488004 2 NUT M6 Unavailable
25 N10491001 4 CLIP Unavailable
25 N10491001 4 CLIP Unavailable
26 N90775001 20 SCREW ST4.8X16 Unavailable
26 N90775001 20 SCREW ST4.8X16 Unavailable
27 N90156103 7 CLIP Unavailable
27 N90156103 7 CLIP Unavailable
28 N90156103 7 CLIP Unavailable
28 N90156103 7 CLIP Unavailable
29 400825729 1 LH INSULATION Unavailable
29 400825729 1 LH INSULATION Unavailable
30 400825730 1 RH INSULATION Unavailable
30 400825730 1 RH INSULATION Unavailable
31 0 LH INSULATION (SEE TABLE 807.04.00) Unavailable
31 0 LH INSULATION (SEE TABLE 807.04.00) Unavailable
32 0 RH INSULATION (SEE TABLE 807.04.00) Unavailable
32 0 RH INSULATION (SEE TABLE 807.04.00) Unavailable
33 400825715 1 LH INSULATION Unavailable
33 400825715 1 LH INSULATION Unavailable
34 400825716 1 RH INSULATION Unavailable
34 400825716 1 RH INSULATION Unavailable
35 N10433701 4 CLIP Unavailable
35 N10433701 4 CLIP Unavailable
36 N10433701 4 CLIP Unavailable
36 N10433701 4 CLIP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
