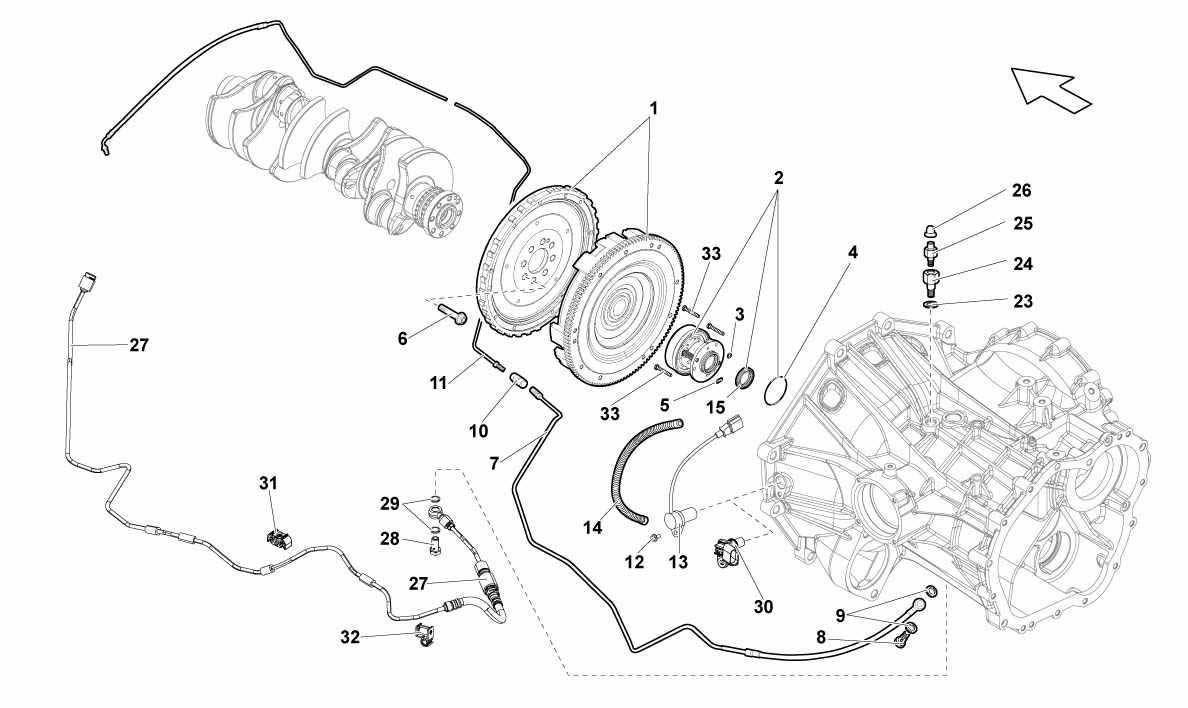

CLUTCH (MANUAL)

Go to Split View

CLUTCH (MANUAL)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L105269J *Qty: 1 CLUTCH FLYWHEEL (MANUAL GEARBOX) $2,872.29
Location: 2 Prev | Next Part: 86141671J *Qty: 1 THRUST BEARING (MANUAL GEARBOX) Call
Location: 3 Prev | Next Part: N90039604 *Qty: 1 O-RING 9.25X1.78 (MANUAL GEARBOX) $1.61
Location: 4 Prev | Next Part: N91020601 *Qty: 1 O-RING 44.17X1.78 $4.98
Location: 5 Prev | Next Part: N90111301 *Qty: 1 O-RING 12.42X1.78 (MANUAL GEARBOX) $0.93
Location: 6 Prev | Next Part: WHT000938 *Qty: 10 SCREW M10X1X19X11 $6.05
Location: 7 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 8 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 9 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 10 Prev | Next Part: *Qty: 0 CONNECTOR (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 11 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 12 Prev | Next Part: N10405604 *Qty: 1 SCREW M6X14 $0.90
Location: 14 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 15 Prev | Next Part: 86141243A *Qty: 1 OIL SEAL $20.50
Location: 23 Prev | Next Part: N91014802 *Qty: 1 O-RING 11.11X1.78 $3.30
Location: 24 Prev | Next Part: 86301065 *Qty: 1 CONNECTOR $49.41
Location: 25 Prev | Next Part: 86301138 *Qty: 1 PLUG $19.59
Location: 26 Prev | Next Part: 86301147 *Qty: 1 BOOT $0.90
Location: 27 Prev | Next Part: 400721465A *Qty: 1 PIPE $151.08
Location: 28 Prev | Next Part: N0210717 *Qty: 1 SCREW $5.89
Location: 29 Prev | Next Part: N0138133 *Qty: 2 WASHER $0.90
Location: 30 Prev | Next Part: 79907601 *Qty: 1 TRANSDUCER $142.41
Location: 31 Prev | Next Part: 6Q0611797E *Qty: 3 SUPPORT $3.06
Location: 32 Prev | Next Part: 1K0721491A *Qty: 1 SUPPORT $0.90
Location: 33 Prev | Next Part: N10124306 *Qty: 3 SCREW M6X20 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
