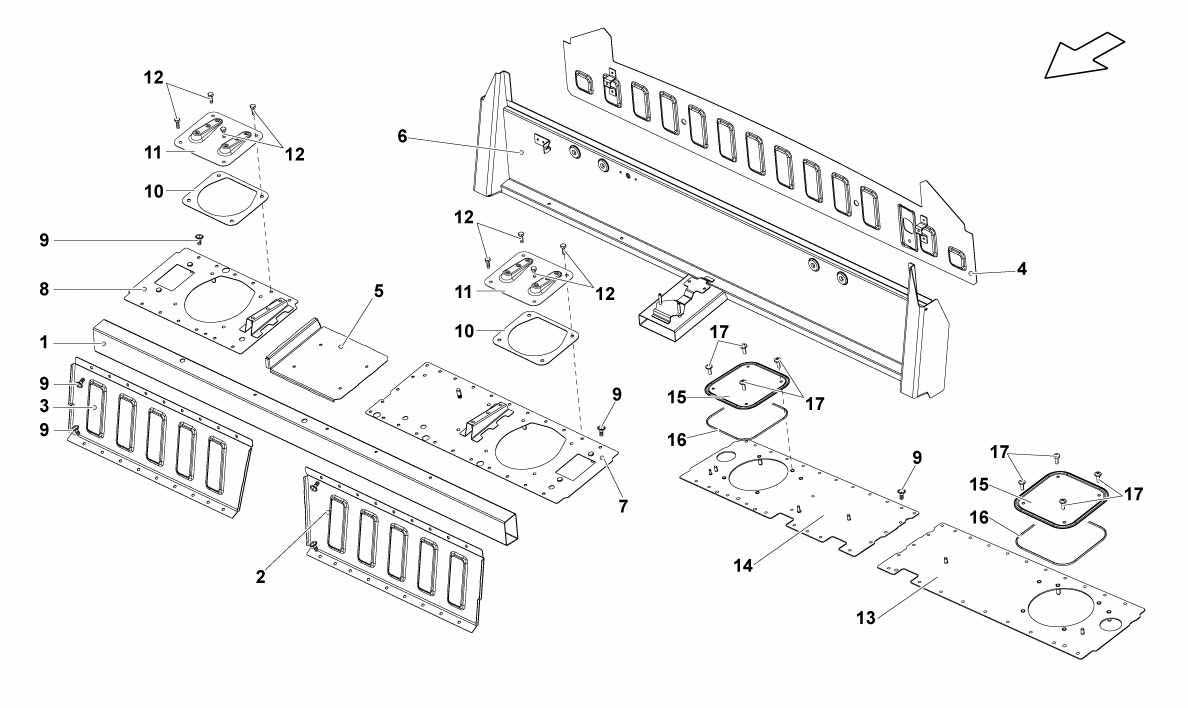

CENTER FRAME ELEMENTS

Go to Split View

CENTER FRAME ELEMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400805486C *Qty: 1 FRONT PANEL $2,168.46
Location: 2 Prev | Next Part: 400805029A *Qty: 1 LH PLATE $166.81
Location: 3 Prev | Next Part: 400805030A *Qty: 1 RH PLATE $166.81
Location: 4 Prev | Next Part: 400805485C *Qty: 1 FRONT PANEL $323.76
Location: 5 Prev | Next Part: 408805115A *Qty: 1 RIGHT FRONT WHEEL ARCH $600.32
Location: 6 Prev | Next Part: 408805116A *Qty: 1 RIGHT FRONT WHEEL ARCH $600.32
Location: 7 Prev | Next Part: 401864420C *Qty: 1 FOOTREST $65.05
Location: 11 Prev | Next Part: 400864519A *Qty: 3 CLOSING $13.71
Location: 12 Prev | Next Part: 400864179A *Qty: 3 RUBBER WASHER $1.57
Location: 13 Prev | Next Part: 401864775C *Qty: 1 SUPPORT $52.42
Location: 14 Prev | Next Part: 400864994 *Qty: 3 CLIP $5.13
Location: 15 Prev | Next Part: 400864776A *Qty: 1 SUPPORT $29.88
Location: 16 Prev | Next Part: N90931101 *Qty: 6 RIVET $0.90
Location: 17 Prev | Next Part: N10049308 *Qty: 4 SCREW M8X20 $1.04
Location: 18 Prev | Next Part: 400820287 *Qty: 2 FAIRLEAD $7.57
Location: 19 Prev | Next Part: 8D0721495B *Qty: 2 FAIRLEAD $7.94

* Quantity shown indicates the number of pieces used in the diagram.
