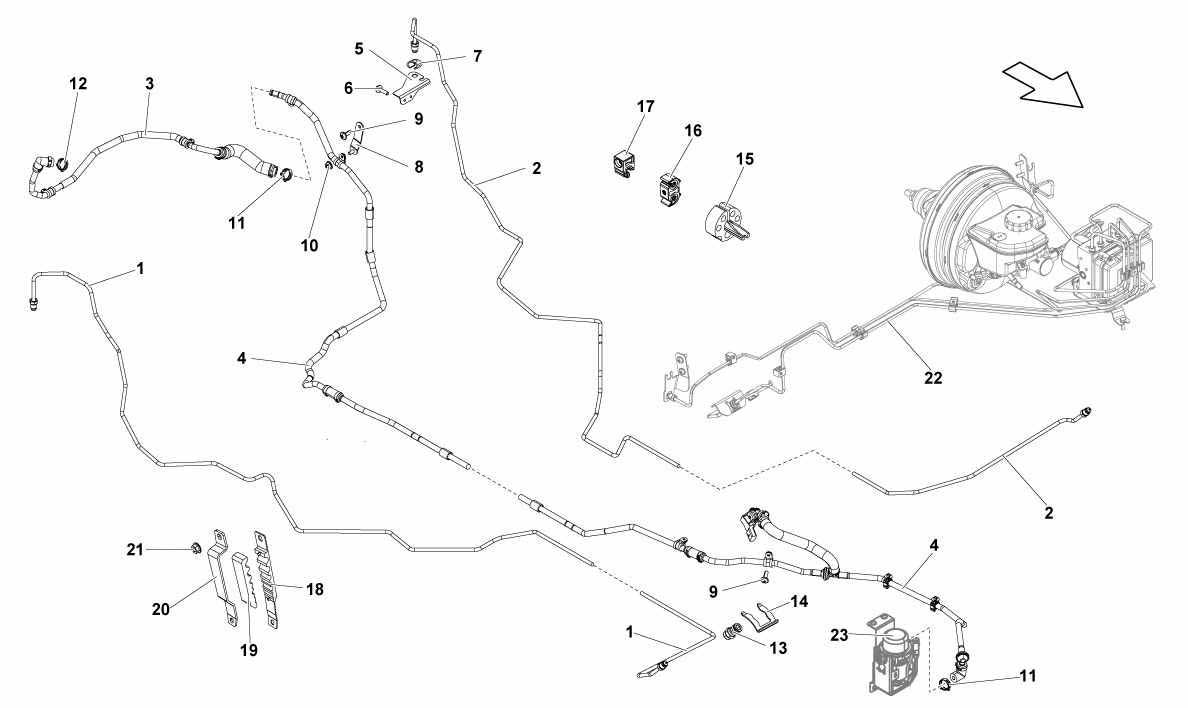

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400611742F *Qty: 1 RH REAR PIPE Unavailable
Location: 2 Prev | Next Part: 400611741H *Qty: 1 LH REAR PIPE Unavailable
Location: 3 Prev | Next Part: 420611931D *Qty: 1 REAR PIPE Unavailable
Location: 4 Prev | Next Part: 401611931 *Qty: 1 FRONT PIPE (VACUM) Unavailable
Location: 5 Prev | Next Part: 420611847A *Qty: 1 LEFT SUPPORT Unavailable
Location: 5 Prev | Next Part: 420611848A *Qty: 1 RIGHT SUPPORT Unavailable
Location: 6 Prev | Next Part: N10714801 *Qty: 4 SCREW M6X18 Unavailable
Location: 7 Prev | Next Part: 4D0611715B *Qty: 2 CLIP Unavailable
Location: 8 Prev | Next Part: 420611793D *Qty: 1 BRACKET Unavailable
Location: 9 Prev | Next Part: N10335206 *Qty: 2 SCREW M6X12 Unavailable
Location: 10 Prev | Next Part: N01508213 *Qty: 2 NUT M6 Unavailable
Location: 11 Prev | Next Part: N10255601 *Qty: 2 CLAMP 23.5X7X0.6 Unavailable
Location: 12 Prev | Next Part: N10201901 *Qty: 1 CLAMP 22.6X7X0.6 Unavailable
Location: 13 Prev | Next Part: 400611809 *Qty: 2 CONNECTOR Unavailable
Location: 14 Prev | Next Part: 191611715 *Qty: 2 CLIP Unavailable
Location: 15 Prev | Next Part: 1J0611853 *Qty: 2 BUSHING Unavailable
Location: 16 Prev | Next Part: 6Q0611797E *Qty: 7 SUPPORT Unavailable
Location: 17 Prev | Next Part: 8D0611797D *Qty: 12 SUPPORT Unavailable
Location: 18 Prev | Next Part: 400121220E *Qty: 3 RUBBER SUPPORT Unavailable
Location: 19 Prev | Next Part: 400121503 *Qty: 3 RUBBER SUPPORT Unavailable
Location: 20 Prev | Next Part: 400121097A *Qty: 3 BRACKET Unavailable
Location: 21 Prev | Next Part: N01508213 *Qty: 6 NUT M6 Unavailable
Location: 22 Prev | Next Part: *Qty: 0 FRONT PIPE (SEE TABLE 614.02.00) Unavailable
Location: 23 Prev | Next Part: *Qty: 0 PUMP (SEE TABLE 611.04.00) Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
